MicroTouch Mach POS - Android
The pictures shown are general images for product Mach POS - Android and may not be applicable to all part numbers
Mach POS - Android POS Computers

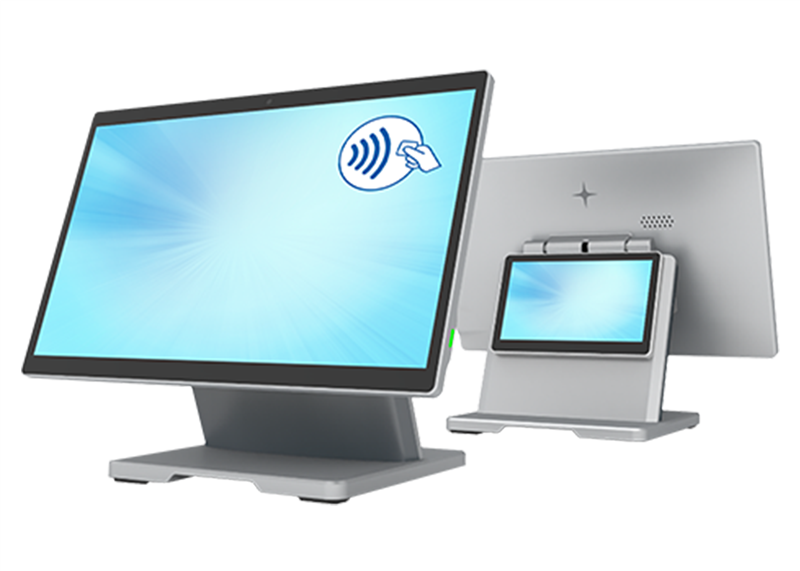

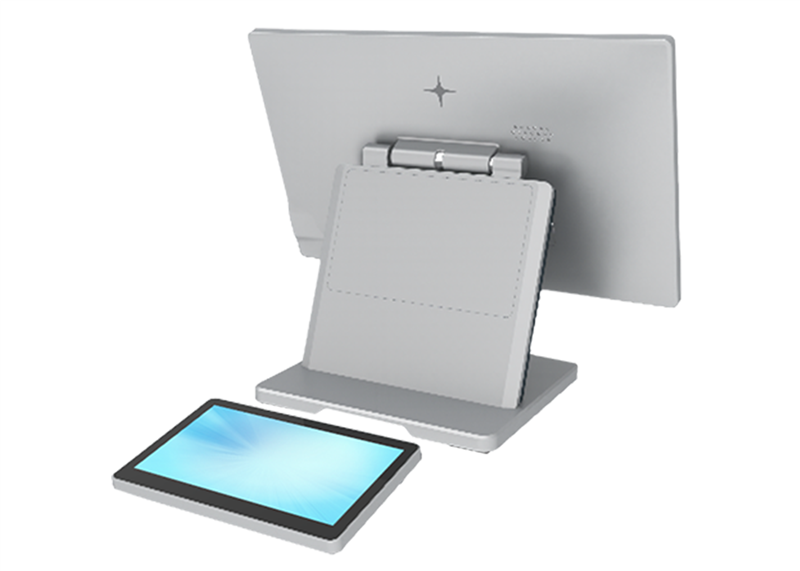

The Mach POS is a totally new design from MicroTouch featuring super thin and stylish 15.6” Touch screen mounted to a purpose-built base with integrated I/O ports. The design features an optional matching customer display that can attach to the base or sit on counter, creating a sleek and flexible POS countertop system.
And… Mach POS adds payment…both the main display and customer display can be configured with an NFC reader that is embedded BEHIND the LCD to allow for tap to pay on the screen. This NFC capability is enabled by a simple integration with any of the SoftPOS payment solutions in the marketplace.
In addition to stylish design and great features, this solution provides commercial-grade robustness plus incredible performance from MediaTek’s latest processor, the Genio 520. Like other Mach products, Mach POS is equipped with bright LED panels optically bonded to a 10-point touch sensor with etched anti-glare surface. This technology increases clarity, plus avoids distracting reflections and fingerprints.
The end result is a POS solution that looks great, performs great and can thrive in all store environments.
Featured Specifications
- Size: 15.6” TFT LCD
- Processor: MediaTek Genio 520 (10 TOPs for AI Applications)
- OS: Android 15 GMS
- Maximum Resolution: 1920 x 1080
- Contrast Ratio: 700:1
- Brightness: 450 nits
- Power: 1 x 24V DC in Power Input
- USB Ports: 1 x USB C for External Peripheral Device, Audio(Alt Mode) or 2nd HUB 1 x USB C for Head – Latching/Secured 1 x USB C for Integrated Customer Display (with Touch and NFC)
- Warranty: 3 Year
| Product Specifications | |
|---|---|
| Touch Display | 15.6” TFT LCD |
| Resolution | 1920 x 1080 Resolution |
| Touch Technology | Touch Screen: 10 Pt. PCAP Touch (Optically Bonded) |
| Brightness | 450 nits |
| Processor | MediaTek Genio 520 (10 TOPs for AI Applications) |
| System Memory | 8GB LPDDR5 |
| Storage Device | 64GB eMMC5.1 |
| OS Supported | Android 15 GMS |
| Power Input | 1 x 24V DC in Power Input |
| Cash Drawer | 1 x 12V or 24V (Switchable) |
| Powered USB | 1 x 12V Latching USB, 1 x 24V Latching USB |
| Standard USB | 1 x 5V USB Type A |
| LAN | Ethernet RJ45 with LEDS for Signal |
| USB C | 1 x USB C for External Peripheral Device, Audio(Alt Mode) or 2nd HUB, 1 x USB C for Head – Latching/Secured, 1 x USB C for Integrated Customer Display (with Touch and NFC) |
| Wi-Fi | WIFI6e |
| Bluetooth | BT5.2 |
| Audio | 2 Watt Speaker |
| Sensors | Gyro for Auto Screen Rotation |
| Camera | 5MP Camera Front/Top |
| Contrast Ratio | 700:1 |
| Viewing Angle | H 178 x V 178 |
| Surface Treatment | Etched Anti-Glare (AG) |
| Hardness | 7H Hardness Durable Glass |
| Housing | Casting and Steel Chassis |
| Compliance | Front Panel IP65 |
| Dimensions (W x H x D) mm | 364.1 x 290.4 x 190 mm |
| Net Weight | 3.79 kg |
| Gross Weight | 6.46 kg |
| Carton (W x H x D) mm | 445 x 380 x 285 mm |
| VESA via Adaptor Kit | 100 x 100 mm |
| Ball Drop / IK | IK07 |
