POS-X EVO TP6

The pictures shown are general images for product EVO TP6 and may not be applicable to all part numbers

Buy it now

POSGuys Rating:

Lifetime Support

3 Year Warranty

15 Day Return Period

Free Shipping

EVO TP6 Features

Windows 10

IP54

4:3 Ratio

Fanless

Description
Specs
Review
Downloads
FAQs

EVO TP6 POS Computers

This product replaces the older POS-X EVO-TP4 Pro.

The EVO TP6 is a well built compact all-in-one designed for the rigors of a fast pace point of sale environment.

The TP6 is a huge upgrade over the best selling TP4, POS-X has kept a similar mostly-metal construction, bezel free p-cap display, and a multitude of different processors, memory, and storage configurations, while slimming down the housing, improving the base, and updating the look.

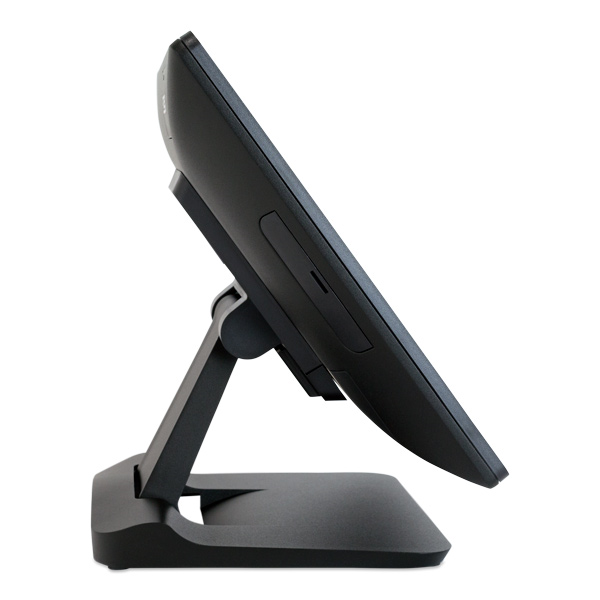

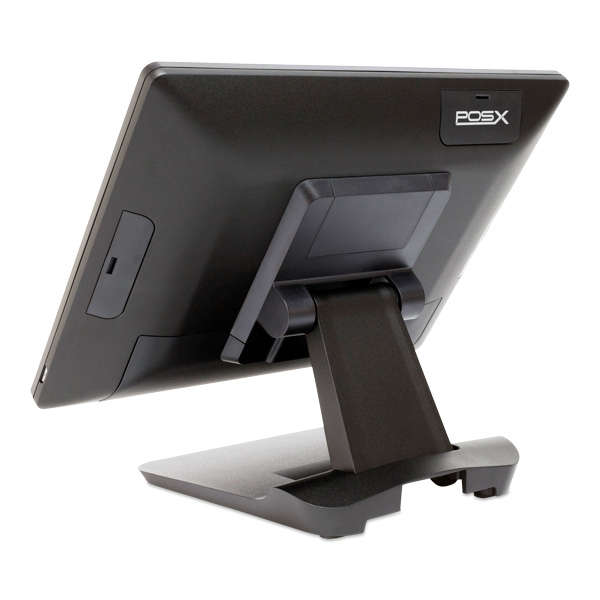

The dual hinge design allows for efficient shipping and almost unlimited tilt angels. Built-in mounting holes on the base extends the versatility of the platform to wall mount installations. You can stand the unit straight up and down if it is on a tall counter or shelf, or lie it very flat if it is on a table or embedded into the counter.

The fan-less design provides a sleek, clean look, and silent operation additionally you won't have to worry about this unit sucking in dust, oil, or water from the environment.

There is a large variety of CPUs available ranging from the low power J1900 to the snappy Core i5, the EVO TP6 can be tailored to meet your pos software requirements.

Product Specifications
Bezel	TruFlat Zero Bezel
Chip Set	Processor Integrated: Intel Celeron / Pentium / Core i3, i5
System Memory	1 x DDR3L SO-DIMM 4-8GB
Hard Drive	2.5" 64-500GB SSD or 2.5" 500GB HDD
LCD Display	15"(381mm) TFT LCD
Resolution	1024x768
Touch	PCAP,10 Point Multi-Touch
Graphic Engine	Intel HD Graphics DX11 and OCL1.1
USB	5 x USB
Serial	3 x RJ45 with 0V/5V/12Vpower
LAN	1 x RJ45
Cash Drawer Port	1 x RJ11 (12V/24V)
IP Rating	IP54 (Front)
Dimensions	14.2” x 8” x 10.9”
Weight	13.2 lb (6Kg)
Warranty	1-Year Factory Warranty

POS-X EVO TP6 Reviews

POSGuys Rating:

Customer Reviews

Downloads
Data Sheet

Frequestly Asked Questions

What do the terms "IoT", "LTSB/C", and "POSReady 7" mean?

First of all, these different acronyms are associated with variations on the Windows operating systems, most likely found on an all-in-one POS computer or system.

"IoT" originally refers to the "Internet of Things", which is a broad term for all the devices in our world that connect to the internet (aside from desktop computers) and run on desktop-level operating systems. In this scenario, "Windows 10 IoT" simply means it's a version of Windows 10 built specifically to be loaded and used on a mobile or All-In-One device. It is a rebranding of their previous terms "Windows Embedded", "Embedded Compact" (CE), or "Windows Mobile" (WM); and the desktop-based "POSReady" versions.

"LTSB" and "LTSC" mean "Long-Term Serving Branch" and "Long-Term Serving Channel", respectively. Both of these versions are merely variations that don't receive updates as often as your standard personal computer running Windows 10. Instead of getting full feature updates each month or so, these systems won't require updates from 2-3 years, giving you a stable and unchanging system for smooth, long-term usage without having to reinvent the wheel each time an update can potentially mess with your system and interrupt your work. To keep your system safe, The LTSB OS does still receive security updates on a monthly basis. LTSC is simply the more current version of this variation, and more or less replaces the LTSB designation.

And finally
"POSReady 7" is very similar to the IoT version of Windows, and indeed is replaced directly by the IoT family. This is a version of Windows made specifically for an All-In-One Windows-based POS computer. It has locked-down features and is embedded (there's that term again) into the hardware to be ready for POS program to be installed and used. This version of POSReady (there are others, but mainly obsolete now) is based on the more popular and stable Windows 7 iteration of the Windows operating system. As mentioned above, while you may find equipment out there running this version of Windows for POS, it has been replaced by the IoT family of operating systems. [Read More]

Can the TP6 be wall mounted via a VESA bracket?
