POS-X EVO-TP

EVO-TP POS Computers

The POS-X EVO-TP has reached end of life. It has been replaced by the POS-X EVO-TP4.

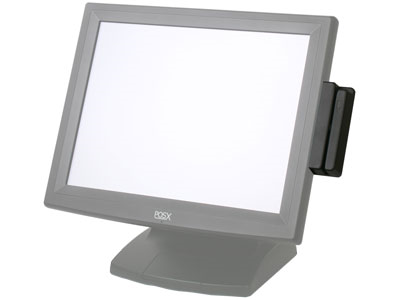

The POS-X EVO-TP touchscreen computer is the next step in energy efficient affordable touchscreen computing. The 1.6 GHz Intel Atom processor runs efficiently and cool enough to not require a fan, making the EVO-TP touchscreen computer a great fit for restaurants, warehouses, or any location where dust and particulate could harm the internals. The 15" active matrix touch display runs at a native resolution of 1024 x 768, enough to display most applications easily. The 0° to 90° tilt angle lets you install and use the EVO-TP in virtually any configuration.

Features

Comes with Windows XP Pro, Windows POSReady or No OS preinstalled

4 Serial, 4 USB 2.0, 1 Cash Drawer Port

1 GB RAM standard, upgradeable to 2 GB

Optional integrated MSR, Customer Display, or 8.4" Rear LCD

Product Specifications
Color Options	Black
Processor	Intel ® Atom N270 procesor 1.6Ghz
Memory	1~2 GB DDR II
Hard Drive	1 x 2.5” SATA 160 GB - Optional 16GB solid state disk hard drive
Operating System	None/ WIN 2000/WIN 2000 Pro/XP Home/XP Professional/VISTA/Linux/ Windows Embedded
Video	Integrated Intel ® GMA® 950 Graphics Engine up to 224 MB shared
Ports	4 USB2, 4 RJ 47 Serial, 1 LAN, 1 additional VGA, 1 RJ11 cash drawer
Display Type	15 Inch LCD
Screen	5-Wire resistive
Aspect Ratio	4:3
Optimal Resolution	1024 x 768
Brightness	250 nits
Colors	16.7 million colors
Weight	12.13 lb
Dimensions	14.37W x 10.94D x 11.69H in.
Mounting Options	VESA 75 x 75 mm (EVO-TP2 models only)
Operating Temperature	41°F - 95°F (5°C - 35°C)
Power Supply	Ext. 65W 19V 3.4 A
Optional Peripherals	3 track magnetic stripe reader (MSR) - 8.4 inch rear display screen - 2 line rear display screen
Warranty	3 Years Limited
