Pioneer Stealth-M5

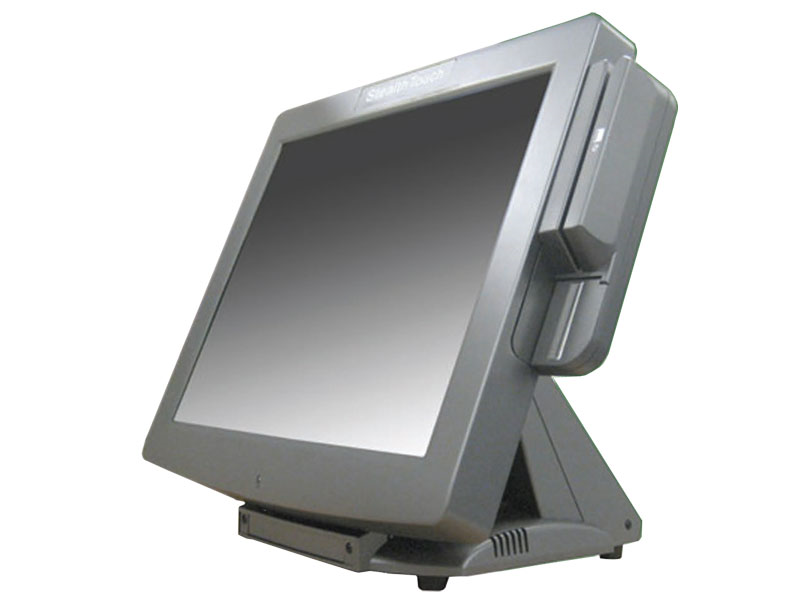

Stealth-M5 Product Image

The pictures shown are general images for product Stealth-M5 and may not be applicable to all part numbers

Stealth-M5 POS Computers

The Pioneer Stealth-M5 has reached end of life.

The Pioneer Stealth-M5 POS computer offers the power and configurability options needed for a wide variety of retail, restaurant, and hospitality locations. A 15" touchscreen computer, the Stealth-M5 can be configured to meet your exact needs, giving you the right tools at a great price.

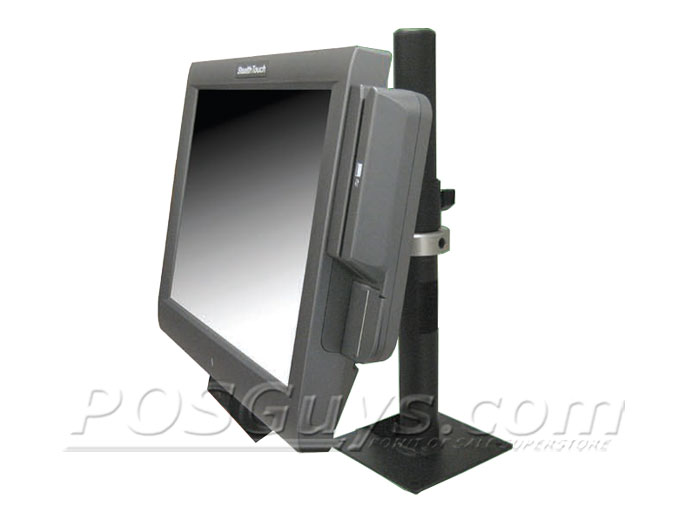

The Stealth-M5's small footprint minimizes counter space taken up at your point of sale, and for greater space savings, the POS computer can be VESA mounted to a wall or pole. The 15" display on the Stealth-M5 runs at a native 1024x768, able to display most modern POS software with ease. Available with resistive or capacitive touch technology, there's a Stealth-M5 available to meet your business's needs.

Baseline Stealth-M5 units ship with an 1.6 GHz Intel Atom Processor and 512 MB of RAM, ideally suited as secondary order stations, kiosks, or primary stations at smaller businesses. More powerful options, including a 2.5 GHz Core 2 Duo processor and up to 4 GB of RAM, ensure the Stealth-M5 runs any software package smoothly for countless years.
  • 1.6 GHz Intel Atom Processor, up to 2.5GHz Core 2 Duo
  • 512 MB DDR2 RAM, up to 4 GB
  • Windows XP, XP Embedded, WePOS, CE.NET, or Windows 7
  • 160 GB Hard Drive

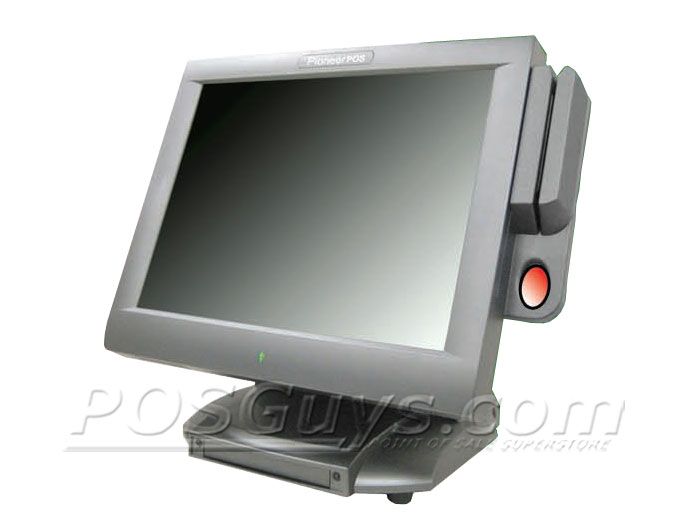

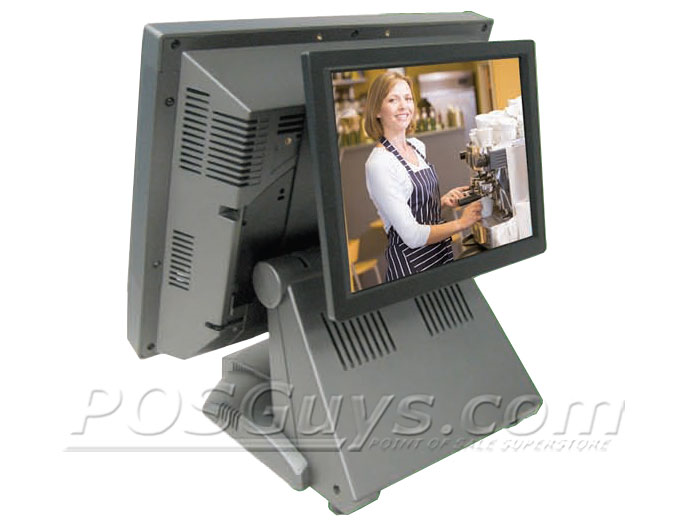

  • Optional accessories include Card Reader, Biometric Reader, Omni Barcode Scanner, and Rear Customer Display

The Stealth-M5 requires setup prior to shipment. Please call for more information
Product Specifications
Color Options Dark Grey
Memory 512MB up to 4GB DDR2
Intel Atom 1.6GHz
Dual Core 1.9GHz
Core 2 Duo 2.5GHz
Hard Drive
160GB Hard Drive
200GB Hard Drive
4GB Compact Flash
2.5" 160GB Hard Drive
Operating System Windows 7
Windows XP Pro
Windows XP Embedded
Ports Standard Ports
4 Serial
1 Powered USB +12 volts
1 Powered USB +24 volts

Optional Ports
Cash Drawer
Compact Flash Reader
Video 128MB, up to 255MB
Display Type 15" LCD, Active Matrix TFT
Screen Resistive
Intellitouch SAW
3M Capacitive
Aspect Ratio 4:3
Optimal Resolution 1024 x 768
Weight With Base: 22 lbs / 10 kgs
Wallmount: 11 lbs / 5 kgs
Bezel Standard
Dimensions With Base: 14.6 x 13.0 x 10.4 inches / 380 x 373 x 269 mm
Wallmount: 14.6 x 12.3 x 3.3 inches / 380 x 312 x 85 mm
Mounting Options Desktop Stand, Wall, or VESA Mount
Operating Temperature 32°F to 104°F (0°C to 40°C)
Power Supply External, 120W, AC 100-240V
Speakers Optional: 2 Watts, Stereo
Optional Peripherals Magnetic Stripe or Barcode Slot Reader
Fingerprint / Biometric Reader (DigitalPersona)
Rear Customer Display 2x20
10" LCD Rear Customer Display
Barcode Scanner (omni-directional)
Proximity RFID Reader
Privacy Filter (Factory Install)
3" Thermal Printer
Warranty 3 Years
Return Policy No Returns
