Pioneer Stealth M7

The pictures shown are general images for product Stealth M7 and may not be applicable to all part numbers

Stealth M7 POS Computers


The Pioneer Stealth M7 has reached end of life. It has been replaced by the Pioneer StealthTouch-M7.

This product replaces the older Pioneer StealthTouch 12 Pxi.

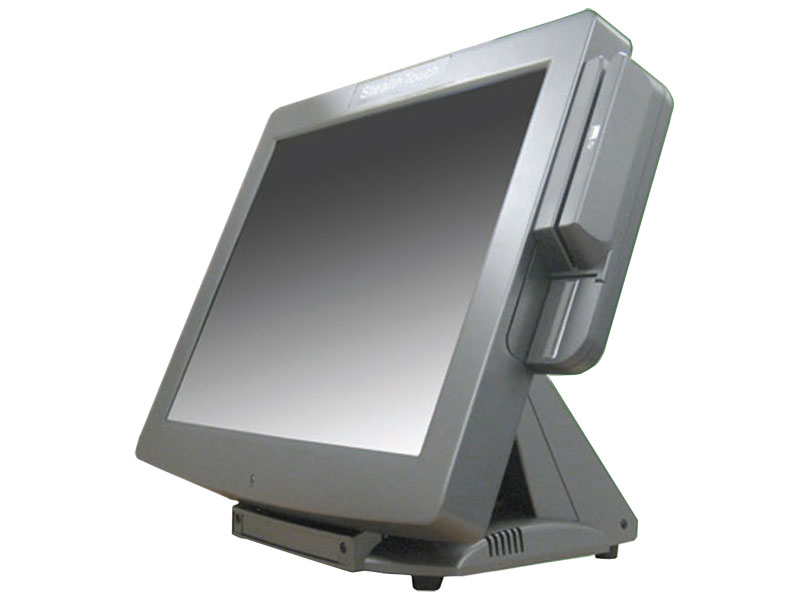

The Pioneer Stealth M7 POS computer gives any business a versatile method for order entry, customer checkout, or kiosk applications. Available in a variety of configurations, there's a Stealth M7 built to meet your specific needs.

The 17" touchscreen on the Stealth M7 runs at a native 1280x1024, easily displaying your POS software and ensuring easy order entry from your employees. You get your choice of resistive, Intellitouch Surface Acoustic Wave, InfraRed, or 3M Capacitive touch technologies, each ideal for different environments. Powered by up to an Intel Core 2 Duo processor and 4GB of RAM, the Stealth M7 can be configured to be a powerful standalone station or even a secondary order station or thin client.

Pioneer designed the Stealth M7 to save valuable counter space at your business, offering mountable accessories to provide additional functionality. Side-mounted card readers provide easy payment capture, and with the optional fingeprint reader, you can better control access to the POS computer. An optional omni barcode scanner opens the Stealth M7 to price check kiosk applications or just saving valuable counter space at your checkstand. And a variety of customer-facing displays, including 2-line displays and LCD screens, allow you to better provide digital signage at the checkout process.
    Features
  • 1.6 GHz Intel Atom Processor, up to 2.5GHz Core 2 Duo
  • 512 MB DDR2 RAM, up to 4 GB
  • Windows XP, XP Embedded, WePOS, CE.NET, or Windows 7
  • 160 GB Hard Drive
  • Optional accessories include Card Reader, Biometric Reader, Omni Barcode Scanner, and Rear Customer Display
Product Specifications
Color Options Grey
Memory 1GB Standard, up to 4GB DDR2
Processor Intel Atom 1.6GHz
Dual Core 1.9GHz
Core 2 Duo 2.5GHz
Hard Drive 160GB Hard Drive
Solid-state Disk and Compact Flash Available
Operating System Windows XP Pro
WEPOS
POS Ready
Windows XP Embedded
Windows 7
Linux
Ports 4 Serial
6 USB 2.0
1 Powered USB +12 volts
1 Powered USB +24 volts
Optional Parallel Port
Optional Cashdrawer Port (Epson Emulation, 24V)
Video 128MB, up to 255MB
Display Type 17" LCD (optional built in privacy filter)
Screen Resistive
IntelliTouch SAW
InfraRed
3M Capacitive
Style Standard: Desktop
Optional: Pole Mount
Aspect Ratio 3:4
Optimal Resolution 1024x768
Weight Including Base: 25lb (12kg)
Wall Mounted: 14lb (4kg)
Bezel Standard: Black, Standard Bezel Type
Optional: White, Standard Bezel Type
Colors Black
Dimensions Including Base: 15.98 x 15.35 x 11.42 inches / 406x 390 x 290 mm
Wallmount: 15.98 x 14.25 x 3.5 inches / 406 x 362 x 89mm

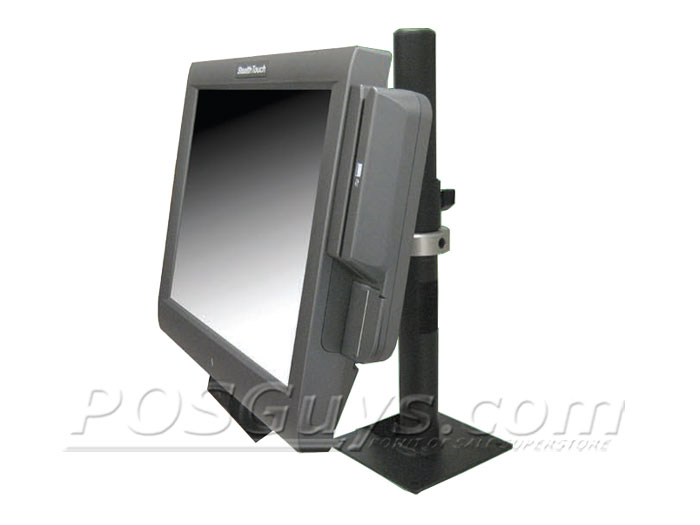

Mounting Options Optional Wall or VESA Mount (For help finding part numbers please contact us.)
Operating Temperature 32°- 104°F (0°-40°C)
Power Supply External, 120W, AC 100-240V
Speakers Optional 2 Watts, Stereo
Optional Peripherals Magnetic stripe or Barcode slot reader
Rear customer display or 10" LCD
Integrated webcamera
Built In Privacy filter (factory installed)
Fingerprint / Biometric reader (DigitalPersona)
Omni-directional barcode scanner (omni-directional) Proximity RFID reader
Warranty 3 Years
Return Policy No Returns On Pioneer Merchandise

Pioneer Stealth M7 Reviews

POSGuys Rating:

Customer Reviews

Accessories

Stealth M7 Wall Mounting Bracket: VESA 75

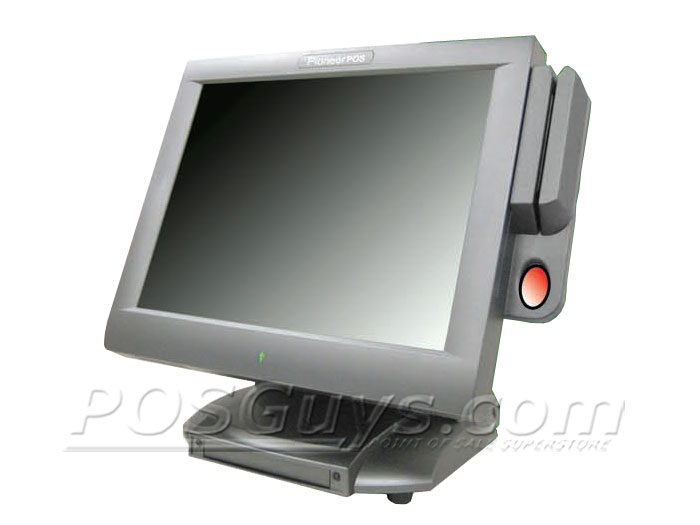

Stealth M7 Magnetic Stripe Reader: 1-2 Track, Keyboard Wedge Interface
Stealth M7 Magnetic Stripe Reader: 1-2-3 Track, OPOS, Serial Interface
Stealth M7 Biometric Reader and Magnetic Stripe Reader (Combo: 1-2 Track), Serial Interface (Does not work with capacitive screens.)

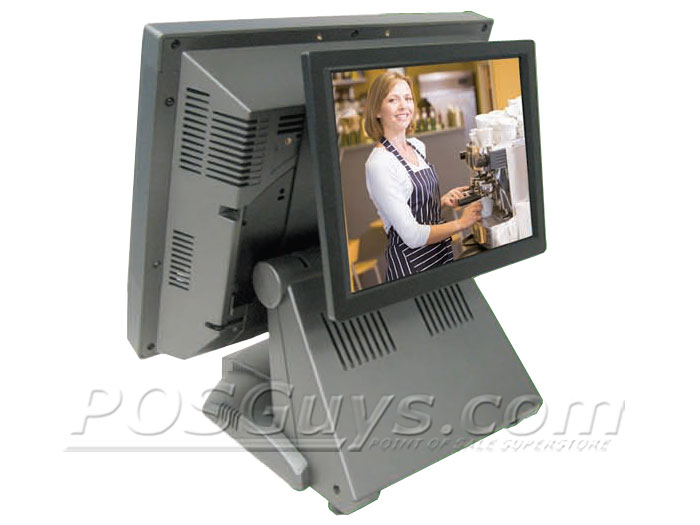

Stealth M7 LCD Rear Customer Display: 10 Inches, Includes Bracket
S-Line Rear Customer Display: 2 x 20
S-Line Rear Customer Display: 2 x 20, Logic Controls PD3000
S-Line MSR: Integrated, 3-Track, USB Interface

Previously Available Models

Previously Available Accessories
