Pioneer StealthTouch-M7

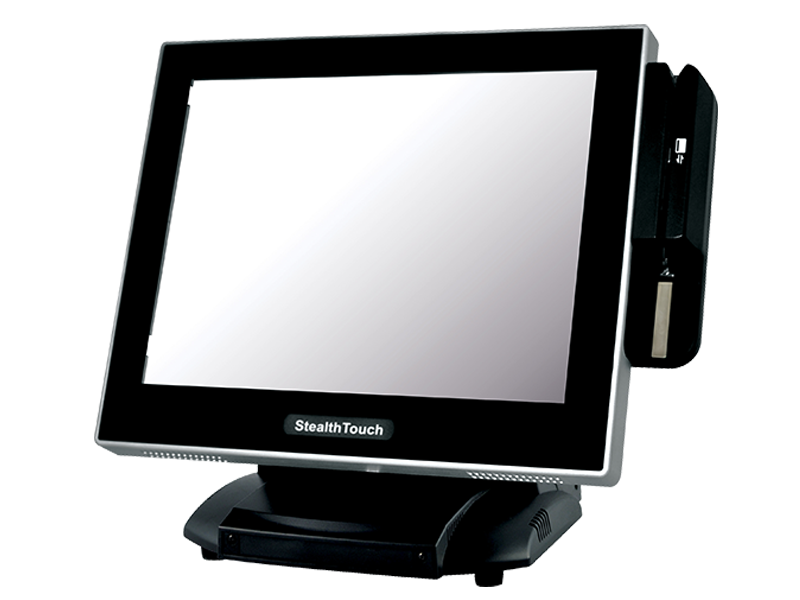

The pictures shown are general images for product StealthTouch-M7 and may not be applicable to all part numbers
StealthTouch-M7 POS Computers
This product replaces the older Pioneer StealthTouch-M7.
New Infinity model with a True Flat (zero bezel) touch, powered by Intel's Core Series! The StealthTouch-M7 is a 17" All-in-one touchcomputer powered by Intel's Core series. This technology allows the M7 to meet your most demanding application.
Understanding that one product will not fit all needs, the M7's versatile design allows you to customize it to meet your budget and application's requirements (such as processing speed, memory size, operating systems, touch technology, mounting option, and integrated peripherals).
Some of the M7's benefits include:- 17" bright display, with built-in privacy filter option.
- Rugged enclosure with spill-resistance.
- Blazing network, 10/100/1000BaseT. Wireless (WiFi) optional.
- Plenty of connectivity: 1 Parallel, 4 Serial, 6 USB ports.
- 12-volts and 24-volts powered USB ports.
- 2nd display port for advertisement on LCD or Plasma display.(optional)
- Integrated magnetic stripe reader and biometric fingerprint reader.(optional)
- Integrated barcode scanner. (optional)
- Privacy filter.(optional)
- Integrated webcam.(optional)
Product Specifications | |
---|---|
Network/Ethernet | Intel 10/100/1000 BaseT |
WiFi (wireless) | RF 802.11 a/g/n (optional) |
Serial Ports | 4 |
USB Ports | Atom model: 6 x USB 2.0 / Core model: 3 x USB 2.0, 3 x USB 3.0 |
poweredUSB, +12 volts | 1 |
poweredUSB, +24 volts | 1 |
Parallel Port | Optional |
Cashdrawer Port | Optional (Epson emulation, 24V) |
Compact Flash Reader | Optional |
Mounting Options | Standard: Desktop Base Option: Wall or VESA mount (please call for part#) |
Dimensions (W x H x D) | With Base: 14.6 x 13.0 x 10.4 inches / 380 x 373 x 269 mm |
Weight | With Base: 22 lbs / 10 kgs |
