Protech Systems PS6508

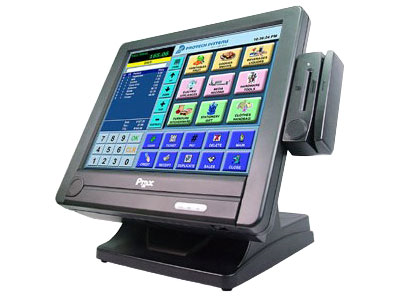

The pictures shown are general images for product PS6508 and may not be applicable to all part numbers

PS6508 POS Computers

The Protech Systems PS6508 has reached end of life.

The Protech PS6508 touchscreen computer has reached end of life. For suggested replacement please contact us.

The Protech PS6508 touchscreen computer gives your business an economical and space-saving solution. The 1 GHz Intel Celeron M Processor and 2.5" SATA Hard Drive minimize energy usage, allowing the PS6508 to operate smoothly on a 120W power supply. At 15", the built-in LCD touchscreen gives you a native resolution of 1024x768, large enough to display most applications easily. A secondary VGA port and mounted MSR enhance the computer's capabilities, making the Protech PS6508 a versatile solution with a lower total cost of ownership than the competition.


  • Windows XP Pro
  • 80 GB SATA Hard Drive
  • 1 GB RAM
  • 5-Wire Analog Resistive Touch Technology
  • 2 PS/2, 1 Parallel, 3 RS-232 Serial, 4 USB, and 1 Cash Drawer port
  • Product Specifications
    Memory 1 x DDR2 SO-DIMM Slot, 512 MB DDR II SO-DIMM (up to 1GB)
    Color Options Black
    Operating System Windows XP/ XPE, Linux, WEPOS
    Ports 4 USB2, 3 DB-9 Serial, 1 RJ 45 Serial, +5/12V selectable, 1 parallel, 2 PS/2, 1 LAN, 1 line-out audio, 1 micro-in, 1 DB-15 VGA, 1 RJ11 cash drawer
    Display Type 15 Inch TFT LCD
    Screen 5-Wire analog resistive
    Aspect Ratio 4:3
    Optimal Resolution 1024 x 768
    Brightness 250 nits
    Weight 9 kg
    Bezel Standard
    Dimensions 14.37 x 14.29 x 11.69 in. (365 x 363 x 297 mm))
    Operating Temperature 0°C to 30°C
    Optional Peripherals VFD customer pole display- 2 line rear customer display - i-button - magnetic stripe reader (MSR) - CF adaptor - 12.1 inch rear customer display
    Warranty 3 Years
    Processor Intel Celeron M ULV 1.0 GHz / Celeron M 1.5 GHz CPU (up to Pentium M 1.8 Ghz)
