Touch Dynamic QK22

QK22 Product Image

The pictures shown are general images for product QK22 and may not be applicable to all part numbers

QK22 POS Computers

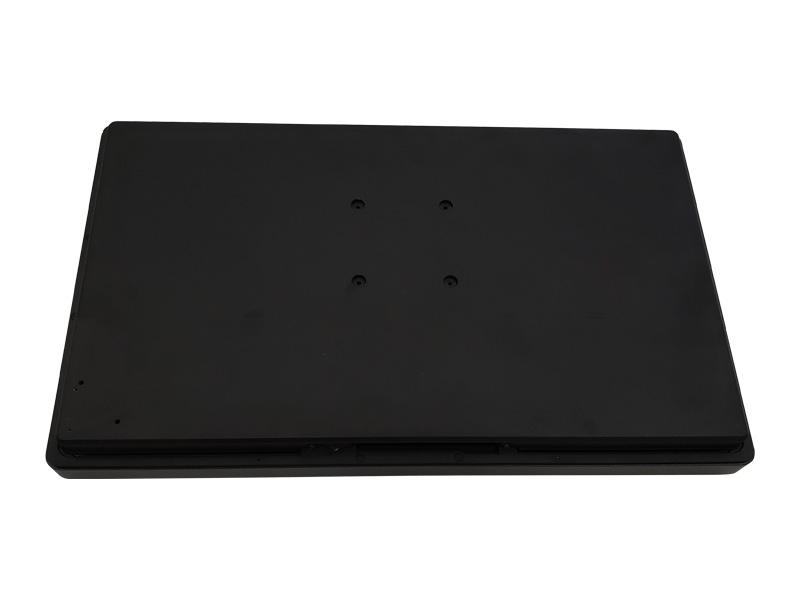

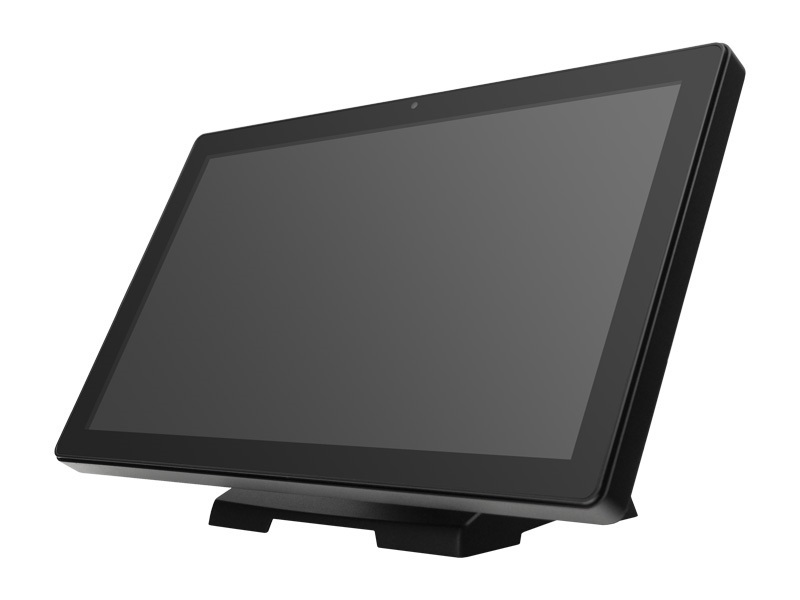

The QK22, available with either Windows or Android operating systems, is a 21.5” panel PC with versatile VESA mounting options at its core. Ideal for including self-service, digital signage, and more, the wide LED LCD Projected Capacitive display offers enhanced durability, and accurate data entry.

A sealed bezel on the QK22 Panel PC for Android prevents dust and particles from entering the system. Perfect for retail and restaurant environments where dust and dirt are common occurrences of every day operations. A sealed bezel keeps internal components protected and guarantees a healthy return on investment.

Peripheral & Accessory Support

  • Webcam: 2.0MP (Standard)
  • MSR: IDTECH or Magtek Readers
  • Integrated 2D Barcode Scanner: Honeywell 2D Scanner with optional Driver's License Scanning Support
  • Integrated Printer: Epson TM-M30 (Interfaces include USB, Serial, Ethernet, WIFI)

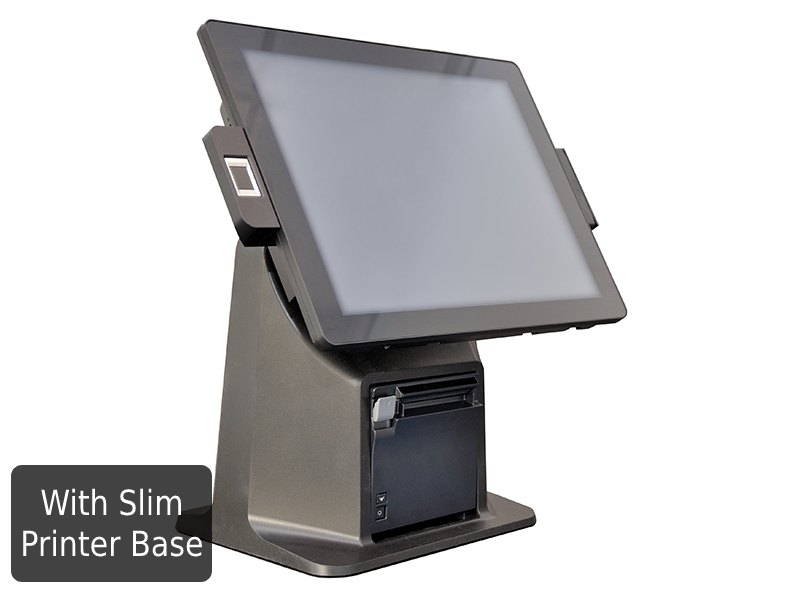

  • Podium Kiosk: Slim Printer Base and Edge Ultra Base
Product Specifications
Dimensions (W x D x H) 21.5" (W) x 13" (H) x 8" (D)
Processor Intel® Celeron J6412 up to 2.6Ghz Elkhart Lake (Windows)
Intel® i3-1115G4 up to 4.1Ghz Tiger Lake (Windows)
Qualcomm Snapdragon 450 up to 1.8Ghz (Android)
Memory 1x DDR4 up to 32GB (Windows), 3GB (Android)
Storage M.2 NVMe SSD 128B (Windows), 32GB (Android)
Screen LCD Size: 21.5” x 1080x1920 Pixels
IO Ports (Windows) USB: 2x USB 2.0, 2x USB 3.0, 2x USB-C (alternate mode support for Tiger Lake) 1x Gigabit Lan, Custom miniDP convertible to VGA or HDMI, : RJ12 Direct I/O access or OPOS support for Cash Drawer
IO Ports (Android) USB: 2x USB 2.0, 2x USB 3.0, 1x USB-C, 1x Micro USB (OTG) (Android) 1x Gigabit Lan, Custom miniDP convertible to VGA or HDMI, : RJ12 Direct I/O access or OPOS support for Cash Drawer
Operating Systems Windows 10 IOT, Windows 11 Professional, Android 9

Touch Dynamic QK22 Reviews

POSGuys Rating: Not Rated

Customer Reviews

Downloads
QK22 Spec Sheet

Recommended Models

QK22 Panel PC. Intel Celeron J6412. 8GB LV RAM, 128GB NVMe SSD, WIN 10 IOT, Desktop Base.
$2011.67 Add to Cart
Operating Systems:Windows 10
Processor:Celeron J6412
Base:Desktop Base
QK22 Panel PC. Intel Core i3-1115G4. 8GB LV RAM, 128GB NVMe SSD, WIN 10 IOT, Desktop Base.
$2447.89 Add to Cart
Operating Systems:Windows 10
Processor:i3-1115G4
Base:Desktop Base
QK22 Panel PC. Qualcomm Snapdragon 450. 3GB LV RAM, 32G eMMc, Android 9, Wireless, Desktop Base.
$1661.67 Add to Cart
Operating Systems:Android 9
Processor:Snapdragon 450
Base:Desktop Base

Additional Models

QK22 Panel PC. Intel Celeron J6412. 8GB LV RAM, 128GB NVMeSSD, WIN 11 PRO, Desktop Base.
$2177.67 Add to Cart
Operating Systems:Windows 11
Processor:Celeron J6412
Base:Desktop Base
QK22 Panel PC. Intel Core i3-1115G4. 8GB LV RAM, 128GB NVMeSSD, WIN 11 PRO, Desktop Base.
$2615.00 Add to Cart
Operating Systems:Windows 11
Processor:i3-1115G4
Base:Desktop Base
QK22 Panel PC.Intel Celeron J6412. 8GB LV RAM, 128GB NVMe, WIN 10 IOT, No Base
Base Not Included. Please Order Separately.
$1927.67 Add to Cart
Operating Systems:Windows 10
Processor:Celeron J6412
Base:No Base
QK22 Panel PC. Intel Core i3-1115G4. 8GB LV RAM, 128GB NVMe, WIN 10 IOT, No Base
Base Not Included. Please Order Separately.
$2365.00 Add to Cart
Operating Systems:Windows 10
Processor:i3-1115G4
Base:No Base

Accessories

Touch Dynamics Universal SlimPrinter Base, with included Epson USB/ Ethernet M30II Printer (includes all cables and power supply). Order Computer Seperately.
Wall Mount Scanner Bracket for QK22/ QK10
