A776 Receipt Printer

The CognitiveTPG A776 has reached end of life.

The CognitiveTPG A776 multifunction receipt printer provides everything you need at a point of sale station, giving you a space saving single solution. The A776 comes standard with a receipt printer, slip printer, and optional MICR reader or built-in imager, consolidating up to 4 devices into one. Available with RS-232 serial and USB interfaces standard, the A776 can be dropped into a variety of locations with ease, and the all-in-one design frees up ports needed for other devices.

With a print speed of up to 7.87" per second, the receipt printer module is fast and reliable. Two color printing allows for better customized receipts, and the LogoEZ software allows for the creation and addition of coupons and customized logos for each receipt. For increased reliability, the autocutter is rated at 1.5 million cuts, giving the A776 the longevity necessary for any retail location.

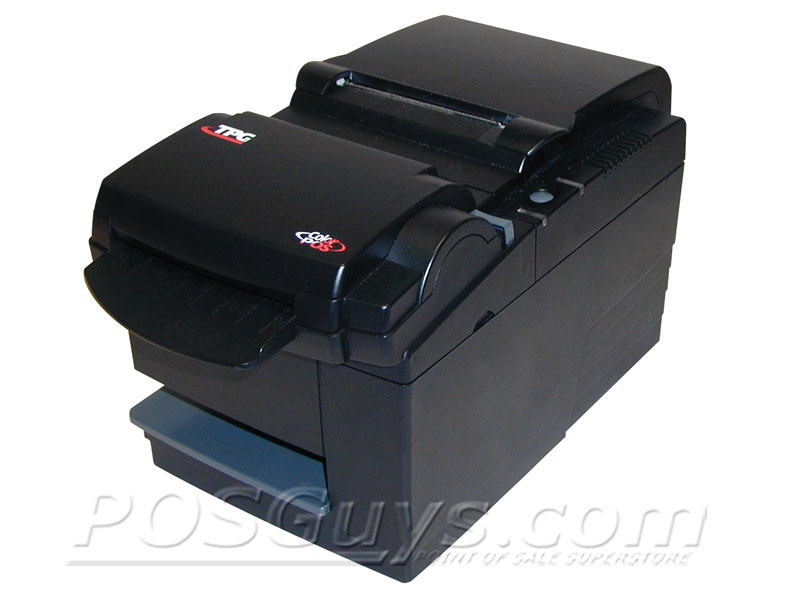

  • Optional imaging module available for quick ID checking
  • Built-in MICR reader
  • Check 21 Compliant
  • 7.87" per second receipt printer module
  • Product Specifications
    Dimensions 6.5W x 11.4D x 6.6H (165.10 x 289.56 x 167.64 mm)
    Weight Approx. 8 lb,
    Color Options Black, Beige
    Interface Dual 9-pin RS-232/USB, 25-pin RS-232, Ethernet, USB, and Powered USB
    Print Method Receipt Printer: direct thermal - Slip Station: 9-pin impact dot-matrix
    Print Speed Monochrome: 200 mm / sec (56.3 LLPS) - Two Color: 100 mm / sec (27 LPS)
    Emulation Application compatible escape commands, TPG A756/A758, ColorPOS
    OPOS Compatible Yes
    Character Set Page 437, 737, 850, 852, 858 (with Eurosymbol), 860, 862, 863 865, 866, 1252. Contact your rep for expanded character sets.
    Character/Line Receipt Printer: 42 characters per line (at 15 CPI)
    Barcodes Supported UPC-A, UPC-E, Code 39, Code 93, Code 128, JAN8 and JAN13 (EAN), Interleaved 2 of 5, Codabar, PDF 417 (receipt station only)
    Graphics Printing Yes
    Data / Logo Storage Yes - up to 8 MB
    MCBF Receipt Printer: 59,000,000 one color lines, 53,000,000 two color lines
    Auto Cutter Lifespan 1.5 Million cuts
    Paper Dimensions Receipt Printer: 3.14 in wide (80 mm), 3.27 in maximum diameter (83 mm)
    Paper Thickness 0.014 in (0.35 mm) maximum
    Two Color Printing Capabilities Yes - two color thermal receipt paper required
    Sensors Paper out, paper low, slip/check in place (depending on model)
    Auto Cutter Yes - partial cut
    Wall Mountable No
    Mac Compatible No
    Software Included ReceiptWare Receipt Marketing Software (may also be located on manufacturers website with drivers)
    In The Box Printer, 1 roll paper, test printout, cardboard support for cantilever, power supply with cables connecting to printer and to power outlet (only if ordered with the printer), ribbon cassette, setup guide (Note that printers shipped in bulk may not include all these items)
    MICR Reader Optional
    Check Endorsing Yes
    Slip Printing Yes
