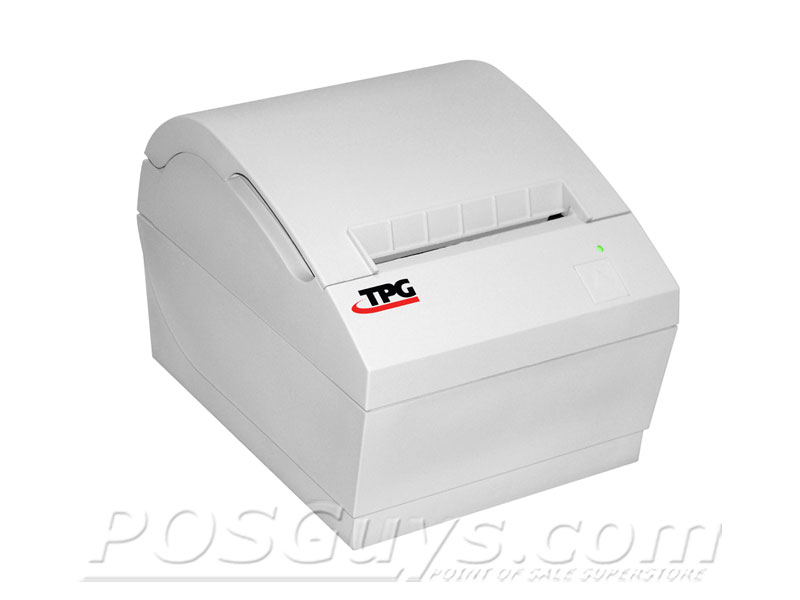

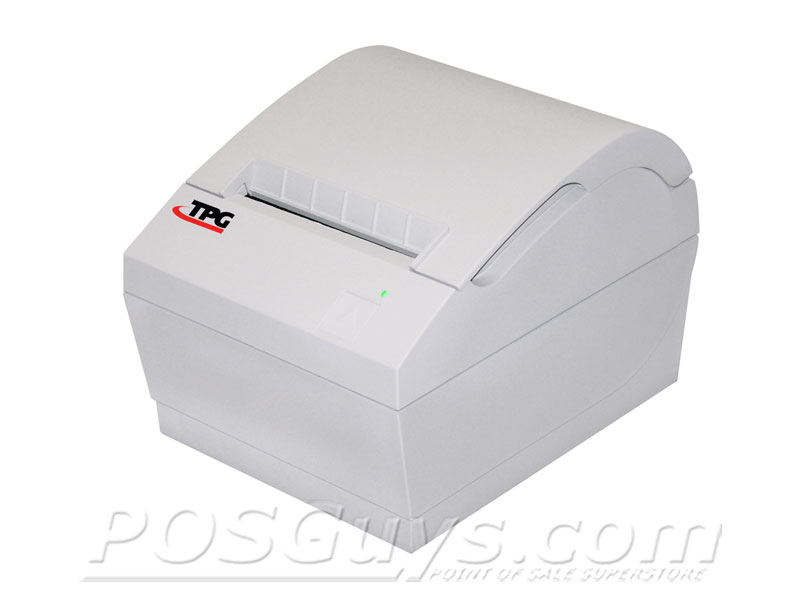

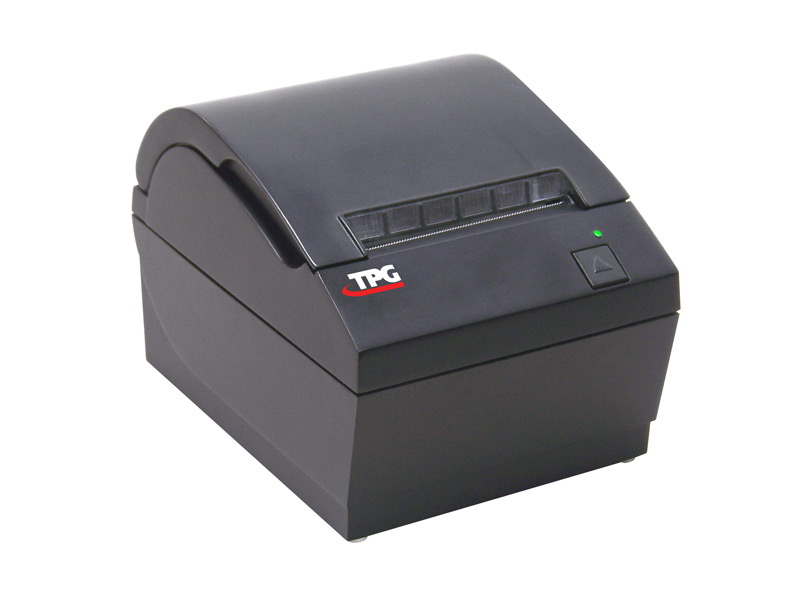

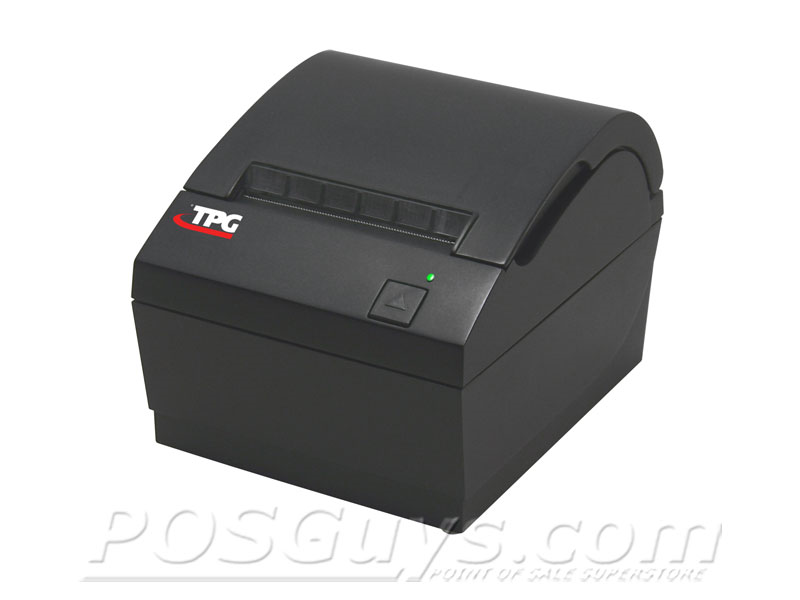

A798 Receipt Printer

The CognitiveTPG A798 has reached end of life. It has been replaced by the POS-X Ion Thermal 2.

The CognitiveTPG A798 Thermal Receipt printer provides solid, reliable service at a reasonable price. A 5.9" print speed may not qualify for the Indy 500, but is still fast enough to keep your lines moving efficiently. To reduce environmental damage, the A798 features an all-metal chassis and channeling system to redirect spills away from circuitry. The print head and cutter are rated at 60 million lines and 2.3 million cuts, respectively, ensuring the CognitiveTPG A798 will perform admirably for quite some time.

  • USB, RS-232 Serial, Parallel Interfaces
  • Driver support for Windows XP and Vista
  • Supports TPG and ESC/POS Emulations
  • RoHS and WEEE compliant

    (Interface cable not included - See accessories)

    Purchase Receipt Paper
  • Product Specifications
    Dimensions 5.65W x 7.27D x 5.27H (144 x 185 x 134 mm)
    Weight 4 lb (1.53 kg)
    Color Options Dark Grey, Black, Beige
    Interface 25-Pin serial, 9-pin serial, parallel, USB, powered USB
    Print Method Direct thermal
    Print Speed 150 mm / sec, 30 rpm (receipts per minute)
    Print Resolution 203 x 203 dpi
    Emulation TPG and ESC/POS
    OPOS Compatible Yes
    Character Set PC code pages 437 (US), 850 (Multilingual), 737 (Greek), 852 (Slavic), 857 (Turkish), 858 (with Eurosymbol), 860 (Portuguese), 862 (Hebrew), 863 (French Canadian), 865 (Nordic), 866 (Cyrillic), 1252 (Windows Latin 1), and 857 (Turkish)
    Auto Cutter Lifespan 2.3 Million cuts
    Paper Dimensions 58, 60 and 82.5 mm wide, 3.55 in (90 mm) maximum diameter
    Paper Thickness Light to standard (see users guide or contact manufacturer for details)
    Two Color Printing Capabilities No
    Sensors Paper out, paper nearly out, cover open Status LED lights
    Auto Cutter Yes - self sharpening ceramic rotary
    Wall Mountable Yes - optional wall mounting bracket required
    Mac Compatible No
    In The Box Printer, 1 roll paper, test printout, setup guide and CD (power supply cord and printer-host interface cable must be ordered separately if not specified in model description)

    CognitiveTPG A798 Reviews

    POSGuys Rating:

    The A798 is a great low-cost alternative to the Epson TM-T88IV. Though not as fast as the competition, it features full support for the Epson command set, making for easy upgrades with minimal software configuration changes.
