Custom America VKP80III

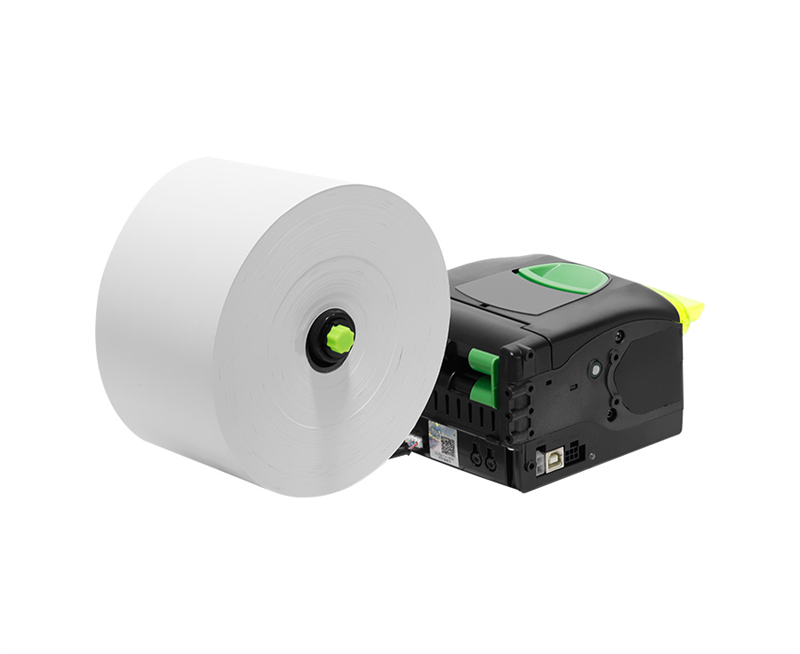

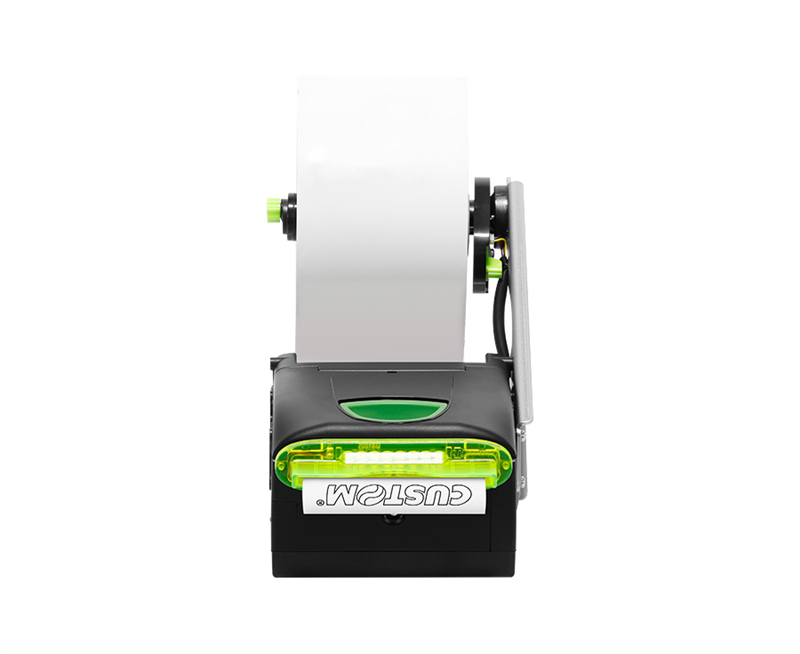

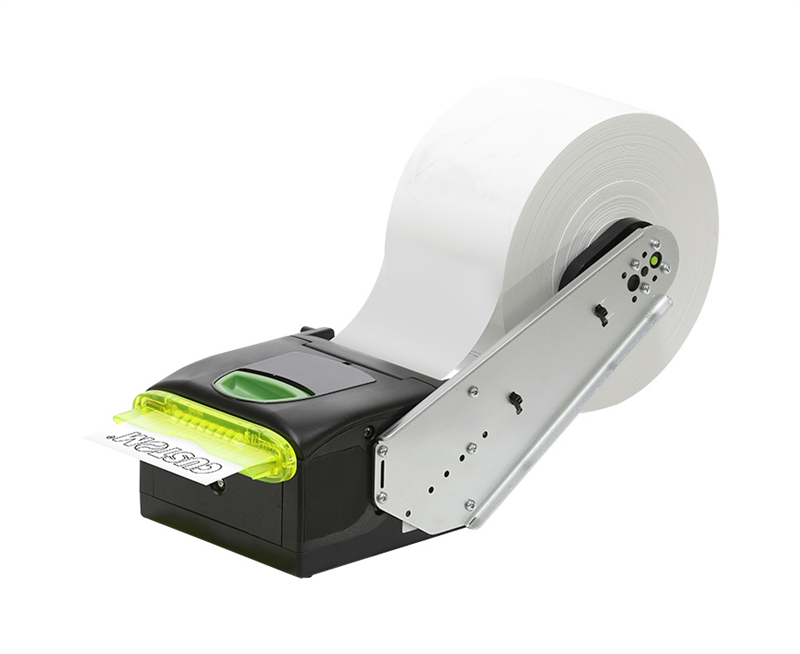

VKP80III Product Image

The pictures shown are general images for product VKP80III and may not be applicable to all part numbers

VKP80III Kiosk Printer


Top Seller Kiosk Printer With a Unique Green Paper Mouth

VKP80III is a kiosk printer for receipts and tickets. Compact, flexible and sturdy it’s also full of features, such as the high performing processor and the long-lasting printing head. It’s suitable for any kind of kiosk, thanks to the adjustable roll holder and the possibility mount it on both sides, overall 6 different positions. VKP80III is equipped with a patented anti-jamming system with printer cleaning command and jamming removal, illuminated bezel and paper presenter with eject/retract function, with the possibility to work also in the fiscal markets thanks to a dedicated model.

Features
Rich in technology: Present/eject/retract full capability
- Supports 2"-3" Receipt Paper
- Extremely compact and flexible way to answer customer needs
- Anti-jamming system with printer clean command and jam removal
- Fiscal market capable
- Print head with auto-diagnostic function and ecogreen mode useful to reduce consumption


Functionalities

  • Automatic ticket ejecting & retracting back (speed > of 1,000 mm/s)
  • Patented retracting function w/o ticket presentation
  • Patented anti-jam system with jamming autodetection and auto eject retry
  • Extremely versatile integration with drivers and utilities for Windows, Linux, Android and iOS
  • Hot swap function: it is possible to replace the printer in the kiosk w/out powering it off
  • Print head self-diagnostic function: it is possible to get the number of not working dots
  • Digital journal printer: the printer allows the saving of receipt data in the flash memory in text or image format; data can be simply read via USB (mass storage)
Shutter for Outdoor Use:
  • Prevents the accidental introduction of objects in the printer bezel
  • It allows to reduce the onsite technical assistance costs, because it significantly increases the life of the internal components
  • No need for any firmware update
  • It installs easily, even in the field (retrofit)
  • Min paper weight 55 g/m2 with 85% not condensed relative humidity
  • Operating temperature -20 / +70°C
  • TOP-NOTCH sensor: reads notches or black marks on the upper thermal side, both in the left and right angles
  • Jumbo roll holder kit (diameter up to 250mm) with near paper end sensor and pretensioner
Product Specifications
Printing Method Thermal with fixed head
Number of dots 8 dots/mm
Resolution 203 DPI / enhanced printing quality
Printing (mm/sec) High speed > 250 mm/sec
Character set PC437, PC850, PC860, PC863, PC865, PC858
Printing Format Normal, height and width from 1x to 8x, reverse, underlined, italic, bold
Printing Direction Straight, 90°, 180°, 270°
Paper width from 50 to 82.5 mm
Paper weight from 55 to 110 g/m²
Roll Dimension max 150mm (Up to 250mm with optional roll holder)
Emulation CUSTOM/POS
Interfaces RS232 + USB
Data Buffer 16 KB text / 1MB graphics
Flash Memory 5 MB (of which 1MB available to the user)
Drivers Win XP, Vista, 7, 8; Linux
Software Tools CustomPowerTool; PrinterSet
Power supply 24 Vdc±10%
Medium consumption 1A (12,5% dots turned on)
MTBF 450,000 hours (electronic board)
Head Life 200Km / 100 Ml pulses
MCBF 1,000,000 cuts
Operating temperature -20°C + 70°C
Dimensions 143.5 (L) x 76.4 (H) x 116 (W) mm
Weight 0.8 Kg

Custom America VKP80III Reviews

POSGuys Rating: Not Rated

Customer Reviews

Recommended Models

VKP80III Kiosk Printer, USB & Ethernet, Side Connectors. Power Supply Separate: 963GE020000143 + 976ZZ010000021
VKP80III Kiosk Printer, USB & RS232, Side Connectors. Power Supply Separate: 963GE020000143 + 976ZZ010000021
VKP80III Kiosk Printer, USB & RS232, Back Connectors. Power Supply Separate: 963GE020000143 + 976ZZ010000021

Accessories

Paper holder with near paper end sensor - holds up to 7" Diameter Roll, 1" Inner Core
Paper mouth with shutter for VKP80II kiosk printer
Near End Sensor Board + Wiring
Power cable 2-pin Molex to flying lead
Custom America AC Power Cable
Serial cable DB9 to DB9 6ft length
USB cable type AB 6ft length
Serial converter cable Microfit 6-pin to DB9, 4 inch length, also includes 2-pin molex power cable REQUIRED FOR SERIAL USE WITH PART 26500000000352
60W MSO 2-PIN Molex Power Supply, Requires power cable PN: 976ZZ010000021
