Epson FX-890II

The pictures shown are general images for product FX-890II and may not be applicable to all part numbers

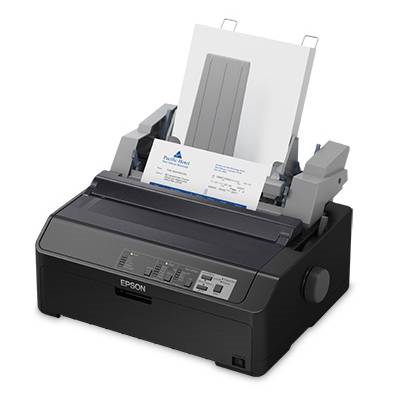

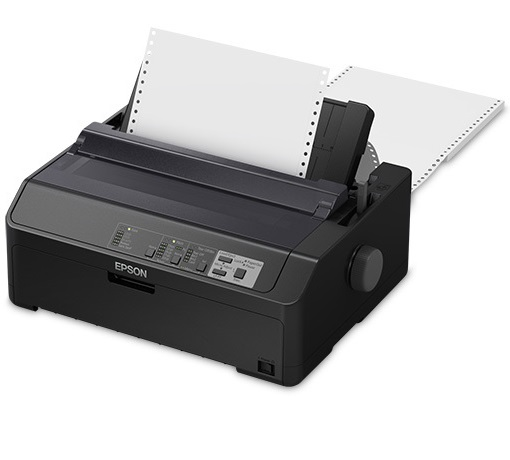

FX-890II Receipt Printer

This product replaces the older Epson FX-890.

The Epson FX-890II impact printer is the best printing solution to bridge the gap between current and legacy systems. This reliable 9-pin, narrow-carriage impact printer boasts a long life cycle, a 3-year limited warranty and speeds up to 738 cps. Its up-to-7.5-million-character ribbon cartridge reduces user interventions as well as cost per page. Engineered for seamless integration into virtually any system, they include Epson ESC/P®, IBM® PPDS, and MICROLINE® printer languages.

  • Four paper paths (plus one optional) for superior paper handling
  • Prints single sheets and up to 7-part forms
  • Network-ready version available
  • Varying print speeds for different projects
  • Drivers available for Windows XP through 10
  • Bidirectional Parallel, USB, Ethernet interface options available
  • Comes with: Printer, Drivers, Quick Installation Guide, and Power Cable
  • Product Specifications
    Dimensions 17.2" x 14.8" x 7" (W x D x H)
    Weight 15.8 lb
    Interfaces Available Bidirectional Parallel (IEEE 1284 Nibble Mode supported), USB 2.0
    Print Method 9-Pin, serial impact dot matrix
    Print Speed
  • Ultra Speed Draft: 738 cps (12 cpi), 615 cps (10 cpi)
  • High Speed Draft: 612 cps (10 cpi)
  • Draft: 463 CPS (10 cpi)
  • Letter Quality: 115 cps (10 cpi)
  • Emulation ESC/P, IBM PPDS, Okidata Microline (FX-890 Okidata Mode only)
    Character Set 13 character tables, 13 international countries character sets
    Barcodes Supported EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5
    Paper Dimensions
  • Single Sheets: 3.9" - 10.1" wide x 3.9" - 14.3" long
  • Continuous: 4" - 10" wide x 4" - 22" long
  • Cut-Sheet Feeder: 7.2" - 8.5" wide x 10.1" - 14" long
  • Print Head Life 400 Million Characters @14 dots/character
    Input Buffer 128KB
    Paper Thickness 0.018"
    Paper Paths
  • Manual Insertion: Front or rear in, top out
  • Cut-Sheet Feeder: Rear in, top out
  • Tractor: Front, rear, or bottom in, top out
  • Pull Push Tractor: Front or rear in, top out
  • Software Drivers / OS Support Microsoft Windows XP, Vista, 7,8,8.1,10; Windows Server 2003, 2008, 2012, 2016
