Epson TM-J7100

The pictures shown are general images for product TM-J7100 and may not be applicable to all part numbers

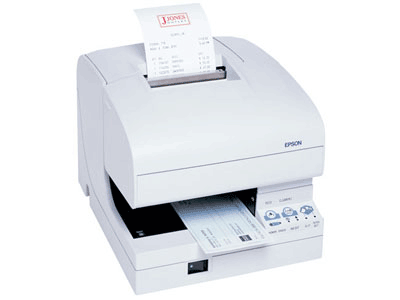

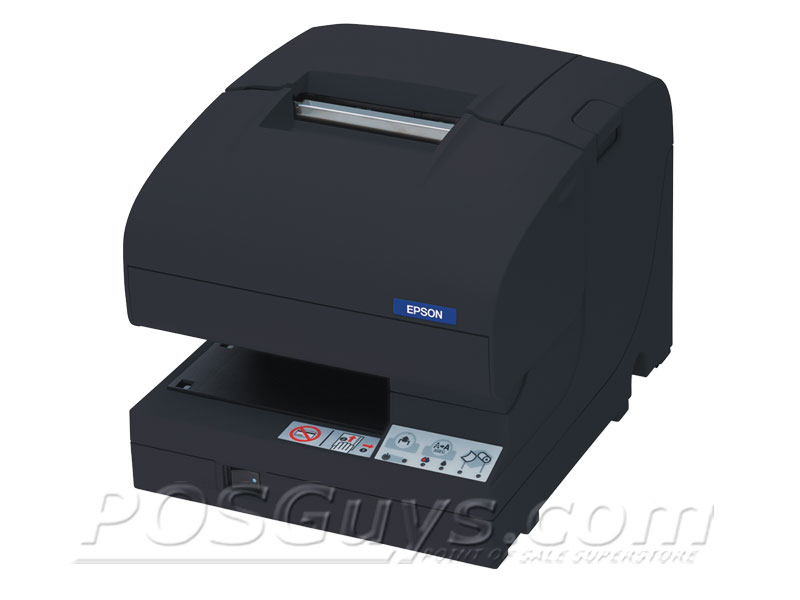

TM-J7100 Receipt Printer

The Epson TM-J7100 has reached end of life.

Now retailers can get all the advantages of one and two-color ink jet printing and the functionality of a 1.5 station printer with Epson's third generation POS ink jet printers -the TM-J7100. Designed specifically for retail, these multifunction inkjet printers offer more features than any other POS inkjet printers on the market today, some features and options include: high-resolution one and two-color printing, slip printing, exclusive SmartPass check printing, MICR reading and more.

Click Here for Additional Warranty Information

Click here for receipt paper

***Windows Vista Drivers Currently not Available***

Requires Power Supply and Interface Cable
The Epson TM-J7100 has reached end of life. No direct replacement is available.

Product Specifications
Dimensions 7.7W x 7.4H x 9.3D in (195 x 188 x 237 mm)
Weight 9.68 lb (4.4 kg)
Color Options White, Dark Grey
Interface RS-232, Bi-directional parallel, Dealer option: RS-485, USB, Ethernet, IBM® P7 and Connect-It* family
Print Method Serial inkjet, 128 nozzles
Print Speed Character: 14.7 lps (8 lines/inch)/graphic: 43mm/sec. (76 mm width paper, full columns print) - Character: 17.0 lps 8 lines/inch)/graphic: 50mm/sec. (57.5 mm width paper, full columns print)
Print Resolution 180 x 180 dpi
Emulation Serial emulation
OPOS Compatible Yes
Character Set 95 alphanumeric, 37 international characters, 128 × 11 graphic
Character/Line 15 characters per inch (Font A) - 20 characters per inch (Font B)
Barcodes Supported UPC-A, UPC-E, JAN8 (EAN), JAN13 (EAN), 2 of 5 (ITF), Code39, Code93, Code128, CODABAR (NW7), PDF 417
Graphics Printing Yes
Data / Logo Storage 4K bytes (45 bytes) Data Buffer
Operating Temperature 41°F - 104°F (5°C - 40°C)
MCBF 50,000,000 Lines
Paper Dimensions Receipt: 57.5 to 82.5 mm (2.25 to 3.25 in) - Slip: 68.0 to 230.0W x 68.0 to 297.0L mm (2.7 to 9.1W x 2.7 to 11.7L in) - Endorsement: 68.0 to 101.6W x 150.0 to 223.0L mm (2.7 to 4.0W x 5.9 to 8.8L in)
Paper Thickness Receipt: 0.06 to 0.09 mm - Slip: 0.09 to 0.20 mm - Endorsement: 0.09 to 0.13 mm
Two Color Printing Capabilities Yes
Sensors Status LED lights - error LED, nearly out of paper LED, power LED, ink out LED, cut sheet LED
Auto Cutter Yes - optional
Wall Mountable No
Mac Compatible No
Auto Cutter Lifespan 1.5 million cuts
In The Box Printer, 1 roll paper, 1 ink cartridge, 2 hexagonal millimeter screws (only for serial interface printer), power switch cover, instruction sheets
Check Endorsing Yes
Slip Printing Yes
MICR Reader Yes - optional WH-10 wall mounting bracket required
