Epson TM-T20IV
The pictures shown are general images for product TM-T20IV and may not be applicable to all part numbers

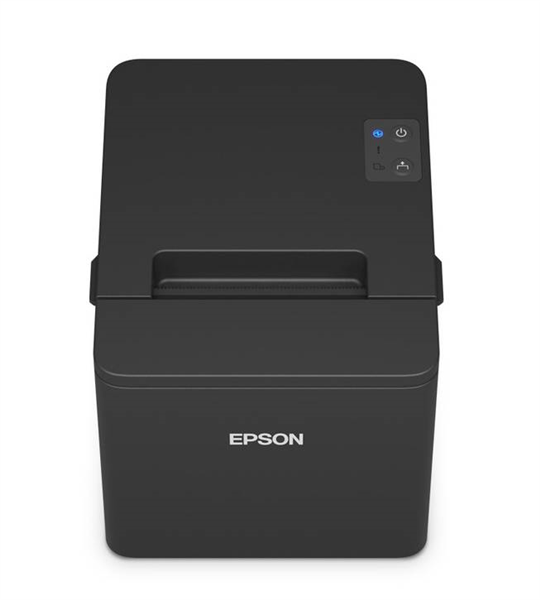

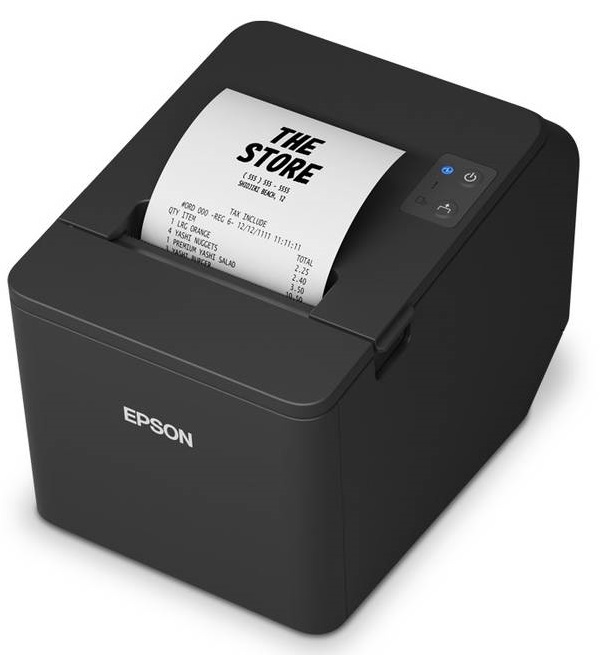

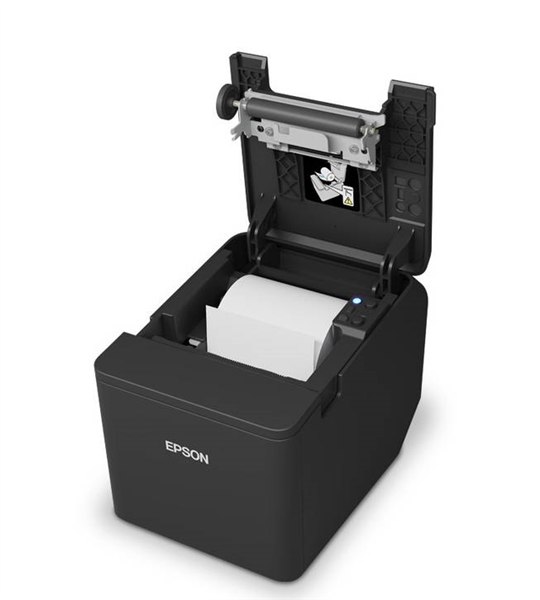

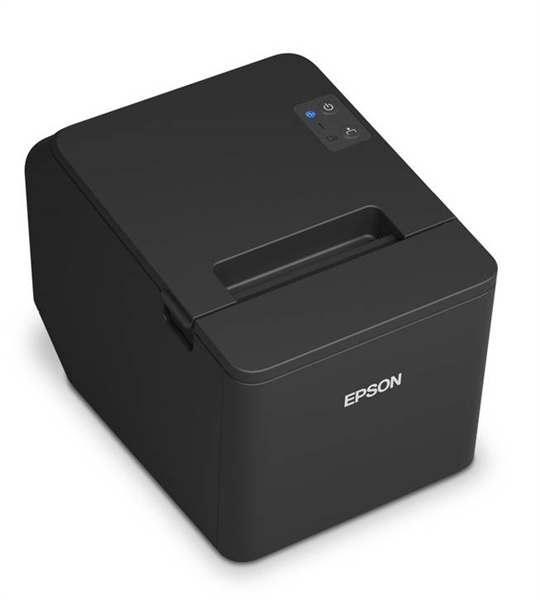

TM-T20IV Receipt Printer
This product replaces the older Epson TM-T20III.
The capable, affordable POS printer with versatile connectivity
Engineered for a balance of speed, reliability and affordability in a compact package, the TM-T20IV thermal receipt printer is purpose-built for taking on the demanding POS needs of today’s businesses. This versatile printer supports traditional PC-POS and mPOS systems and features two built-in connectivity options, allowing for exceptional flexibility and productivity: (1) USB with serial connectivity and (2) USB with serial and Ethernet connectivity. The TM-T20IV is built for productivity—with print speeds up to 250 mm/sec, an intuitive status LED and paper savings of up to 30 percent, it’s the ideal solution for keeping your POS workflow moving quickly and efficiently. The printer is backed by a 2-year limited warranty, with extended service plan options available up to a total of 5 years of continuous coverage, giving you Epson’s world-class service and support for your peace of mind.
Features
Engineering meets affordability — practical features are designed for today’s POS needs
Compact, modern design — small 3" thermal receipt printer
Designed for reliability — 2-year limited warranty; extended service plans, including Spare-in-the-Air™ coverage, are available
Multiplatform support — compatible with traditional PC-POS and mPOS devices

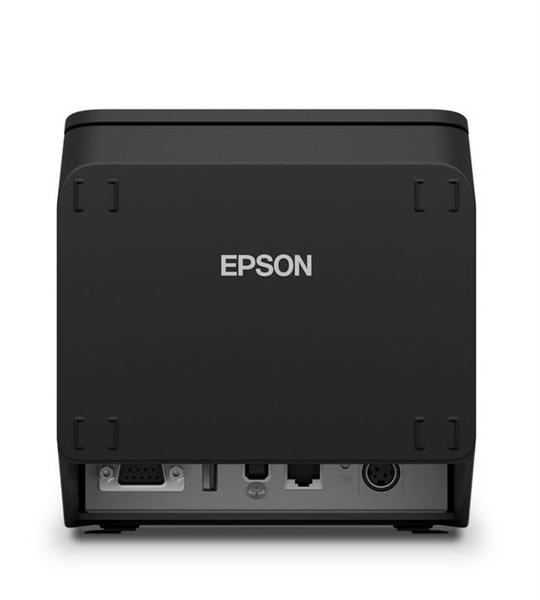

Versatile connectivity — offers two built-in interface options: USB with serial or USB with serial and Ethernet connectivity
Fast printing — print speeds up to 250 mm/sec allow for fast transactions
Paper-saving functions — top-margin and character-height reduction features help reduce paper by up to 30 percent1
Easy to use — status LED with intuitive icons allows for simple troubleshooting and maintenance
What's in the box:
- Epson TM-T20IV thermal receipt printer
- Thermal roll paper (starter roll)
- USB cable
- Power Adapter
- AC cable
- Wall hanging bracket
- Setup guide
| Product Specifications | |
|---|---|
| Print Method | Thermal line printing |
| Print Speed | Max. 250 mm/sec |
| Fonts | 9 x 17 and 12 x 24 dots/character (W x H) |
| Print Resolution | 203 dpi |
| Column Capacity | Standard:
42-column Mode:
|
| Character Size (W x H) | 0.08 x 2.13 mm and 1.25 x 3.00 mm |
| Character Set | 95 Alphanumeric, 18 International, 128 x 43 Graphic |
| Barcode | UPC-A/E, JAN 13 (EAN 13), JAN 8 (EAN), Code 39/93/128, CODABAR (NW-7), Composite Symbology, GS1-128, GS1 DataBar, ITF |
| Characters Per Inch | 22.6 and 16.9 cpi |
| Media Dimensions |
|
| Interface (Dual-Interface Model) |
|
| Interface (Triple-Interface Model) |
|
| Printing From a Mobile Device | Supported (mobile) operating systems: iOS®, Android® and Windows® operating systems |
| Epson ePOS Technology | Supports ePOS service for direct printing from mobile devices or web-based applications |
| D.K.D. | 2 drivers |
| Dimensions (W x D x H) | 5.51" x 7.83" x 5.75" (140 mm x 199 mm x 146 mm) |
| Weight | 3.75 lb (1.7 kg) |
| EMI Standards | FCC Class A, ICES-003 Class A |
| Safety Standards | UL62368-1, CAN/CSA C22.2 No.62368-1 |
| Case Color | Epson Black |
| Reliability |
|
| Options | External buzzer unit (0T-BZ20) |

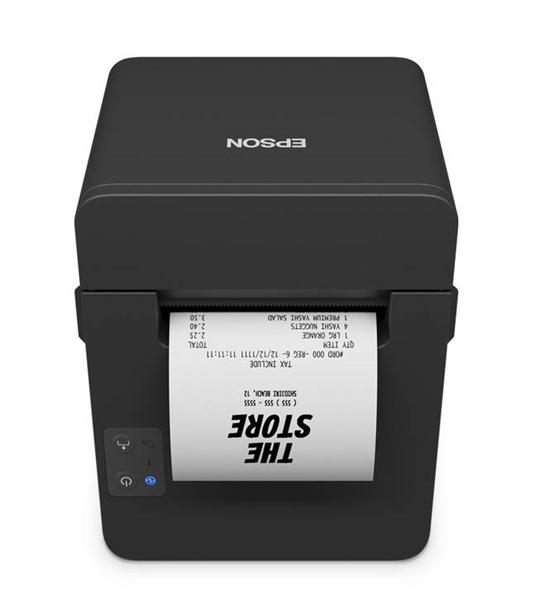

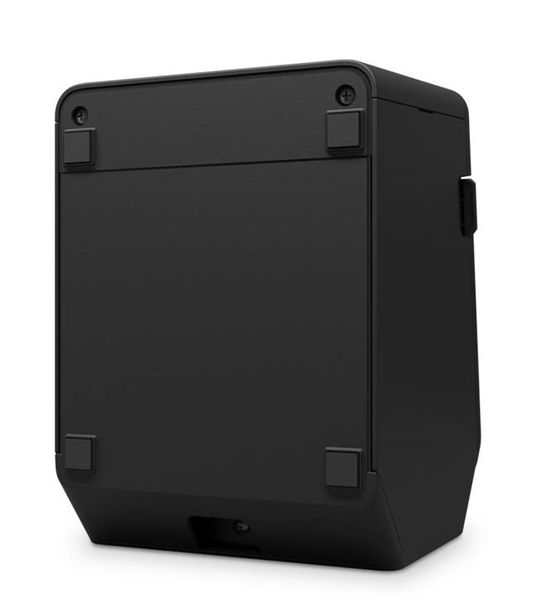

| Installation | Horizontal/vertical on counter/vertical on wall with wall hanging bracket |
| Power Supply Voltage | 24 VDC ± 7% |
| Power Consumption |
|
| Power Source | AC power consumption (AC 100 to 230 V/50 to 60 Hz) (AC cable included) |
| What’s Included | Epson TM-T20IV thermal receipt printer, thermal roll paper (starter roll), USB cable, Power Adapter, AC cable, wall hanging bracket, setup guide |
| Warranty | 2-year limited in the U.S. and Canada; optional extended service plans available |
