Epson TM-U375

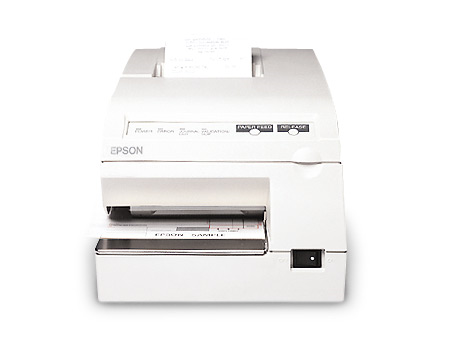

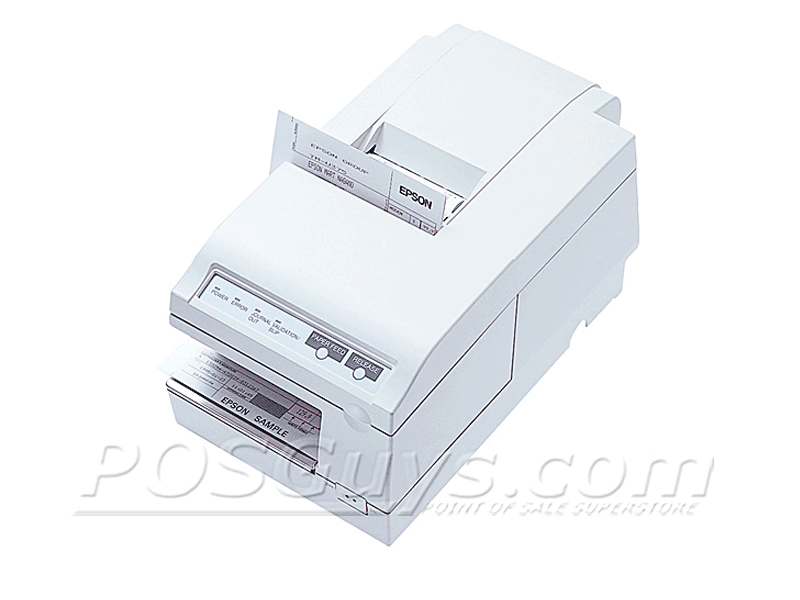

The pictures shown are general images for product TM-U375 and may not be applicable to all part numbers
TM-U375 Receipt Printer
The Epson TM-U375 has reached end of life. It has been replaced by the Epson TM-U675.
The TM-U375 point-of-sale printer features a 1.5 station dot matrix printer capable of printing three ways: 40 column receipt/journal printing using two-ply paper, 15 lines check/charge validation, and unlimited lines of slip printing. Additionally, the small footprint, high speed TM-U375 prints one original and two copies for added convenience.
Click Here for Additional Warranty Information
For receipt paper click here
***Windows Vista Drivers Currently not Available***
Product Specifications | |
---|---|
Dimensions | 7.3W x 12.9D x 5.7H in (186 x 327 x 145 mm) |
Weight | 8.8 lb (4.0 kg) |
Color Options | Light Grey |
Interface | RS-232C / Bi-directional parallel / Connect-It?* |
Print Method | 9-pin, serial impact dot-matrix |
Print Speed | Approx. 3.5 LPS (40-columns, 16 cpi), approx 5.4 lps (20 columns, 16 cpi) |
OPOS Compatible | Yes |
Character/Line | 33 (40 columns) |
Character Set | 95 Alphanumeric, 32 International,126 × 8 Graphic |
Graphics Printing | Yes |
Data / Logo Storage | 4K bytes (40 bytes) Data Buffer |
Operating Temperature | 41°F - 104°F (5°C - 40°C) |
Print Head Life | 150 million characters |
MCBF | 29,000,000 Lines |
Paper Dimensions | Receipts or Journal: 76 mm wide, 83 mm diameter (2.99 in wide, 3.27 in diameter) - Slip: 70 to 182 × 160 to 257 mm (W × L) (2.76 to 7.17 × 6.30 to 10.12 in) - Validation: 135 to 182 × 70 to 257 mm (W × L) (5.31 to 7.17 × 2.76 to 10.12 in) |
Paper Thickness | Receipts or Journal: 0.06 to 0.085 mm (0.0024 to 0.0033 in) - Slip: 0.09 to 0.12 mm (0.0035 to 0.0047 in) |
Two Color Printing Capabilities | Yes - black/purple |
Sensors | Status LED lights - error LED, nearly out of paper LED, power LED, validation indicator |
Auto Cutter | No |
Wall Mountable | No |
Mac Compatible | No |
In The Box | Printer, take-up spool, 1 paper roll, ribbon cassette, 2 hexagonal lock screws (for the serial interface), power switch cover (interface cable not included standard) |
Slip Printing | Yes |
Check Endorsing | Yes |
Downloads |
---|
Data Sheet |
Manual |
OPOS Driver |
Windows Driver |
