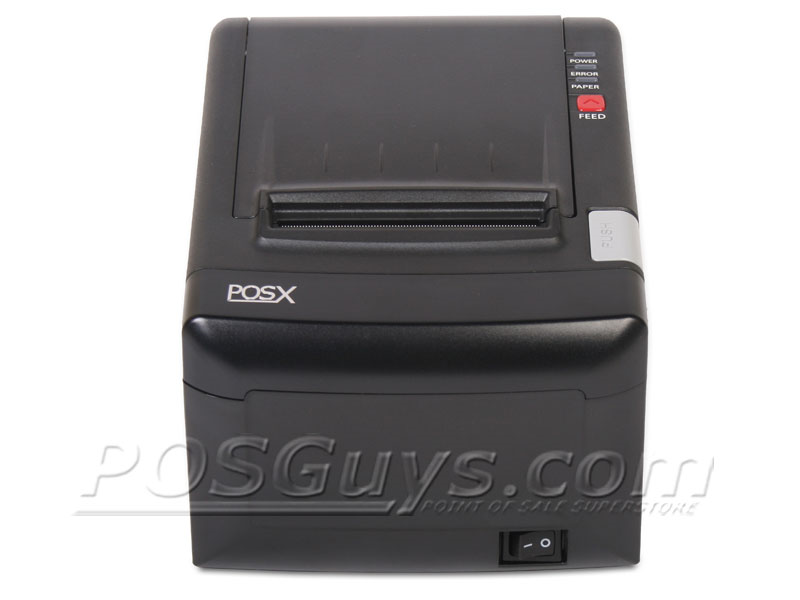

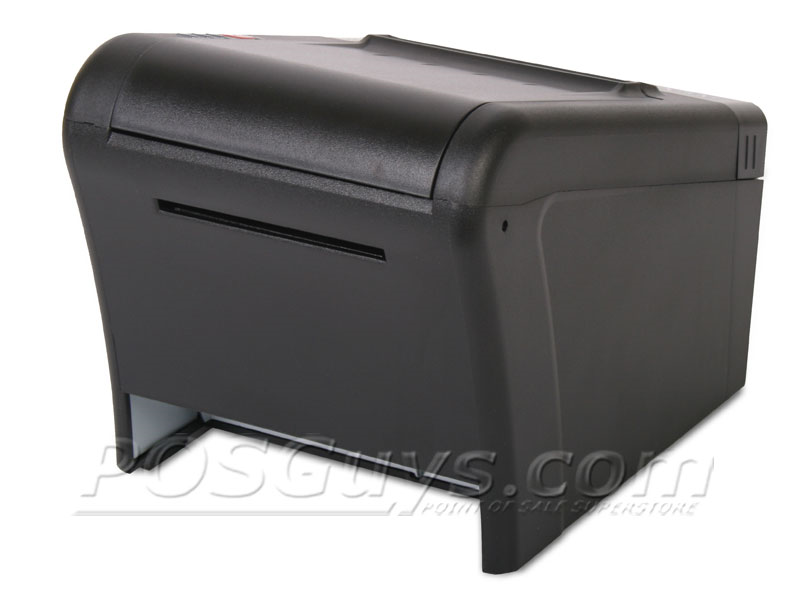

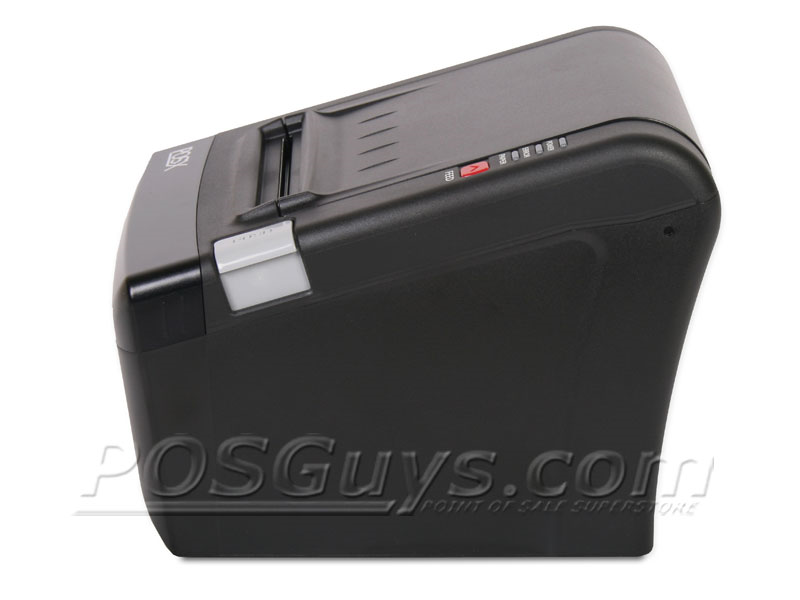

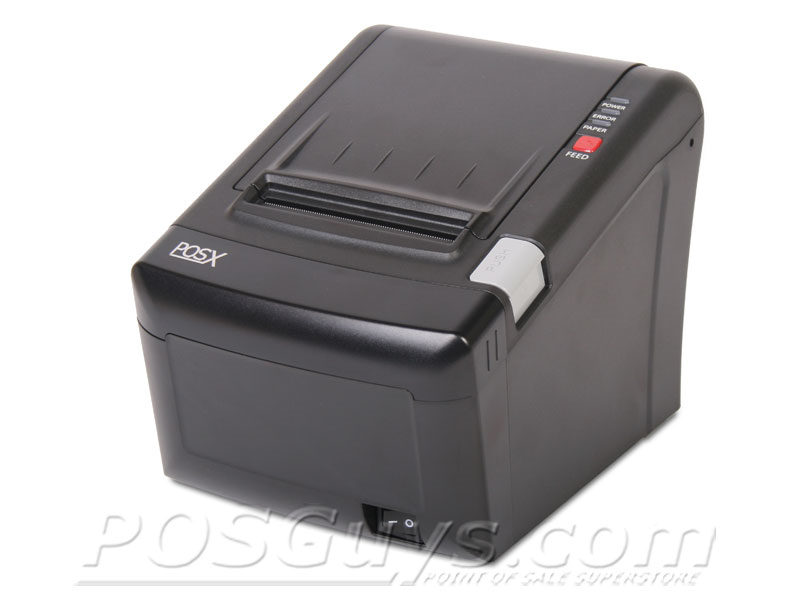

The pictures shown are general images for product EVO-RP1 and may not be applicable to all part numbers

EVO-RP1 Receipt Printer

The POS-X EVO-RP1 has reached end of life. It has been replaced by the POS-X ION Thermal.

The POS-X EVO-RP1 receipt printer brings solid performance at an affordable price any retailer can get behind. The direct thermal printer features a snappy 6.3" per second print speed, fast enough to keep checkout lines moving quickly. With a 99.42 mile lifespan, the thermal printhead will provide your business with error-free receipt printing for countless years.

All models come standard with USB interface and an additional RS-232 Serial, Parallel, or Ethernet interface, making it easy to install in both legacy and new systems. With driver support from Windows 95 to Vista and also OPOS compatible, the POS-X EVO-RP1 receipt printer is a versatile and durable solution for any medium to high volume retailer.

  • 99.42 mile thermal print head life
  • Auto-cutter rated at 1.5 million cuts
  • All models come with USB (requires A to A style USB cable)
  • Interface cards can be swapped easily

    The EVO-RP1 is now known as the EVO Green.
  • Product Specifications
    Dimensions 6W x 7.6D x 5.8H
    Weight 3.53 lb
    Color Options Black
    Interface USB , USB/RS232, USB/Parallel, , USB/Ethernet
    Print Method Direct thermal
    Print Speed 6.3 in / sec
    Print Resolution 180 x 180 dpi
    Emulation ESC/POS command compatible
    OPOS Compatible Yes
    Character Set 95 Alphanumeric characters, 14 International, 128 x 18 extended graphics (1 space per page)
    Character/Line 42 columns (font A) - 56 columns (font B)
    Barcodes Supported EAN-8, EAN-13, CODE 39, ITF, UPC-A, CODABAR, CODE 93, CODE 128,PDF 417(2D)
    Graphics Printing Yes
    Operating Temperature 41°F - 104°F (5°C - 40°C)
    MCBF 60,000,000 Lines
    Print Head Life 100 Million pulses, 150 Km
    Auto Cutter Lifespan 1.5 million cuts
    Paper Dimensions 1.9 to 3.124 in (50 to 82.5 mm) wide, 3.27 in (83 mm) maximum diameter
    Paper Thickness 0.002 to 0.0035 in (0.06 to 0.09 mm)
    Two Color Printing Capabilities No
    Sensors Status LED lights - error, nearly out of paper, out of paper, power, cover open
    Auto Cutter Yes - JamFree auto-retracting Guillotine
    Wall Mountable Yes
    Mac Compatible No
    Software Included Drivers downloadable
    In The Box Printer, users manual, 1 roll paper, power adapter, interface cable
