POS-X XR510

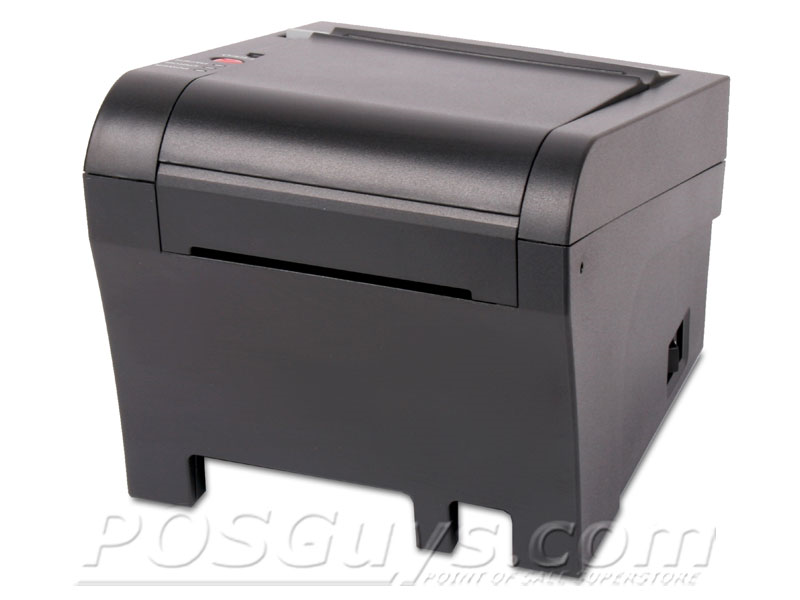

XR510 Product Image

The pictures shown are general images for product XR510 and may not be applicable to all part numbers

XR510 Receipt Printer


The POS-X XR510 has reached end of life. It has been replaced by the POS-X EVO HiSpeed.

The POS-X Xr510 thermal receipt printer continues POS-X's tradition of high quality pos equipment at reasonable prices. The Xr510 features an internal upgrade over the Xr500, providing greater longevity and faster printouts. At 7.9" per second, the Xr510 is 25% faster than its predecessor, speeding up the checkout and providing a better overall customer experience. A heavy duty printhead and auto-cutting mechanism ensure that the POS-X Xr510 will provide years of excellent use.

Click Here for Additional Warranty Information

Features
  • 7.9 inch per second print speed
  • RS-232 Serial, Parallel, USB, and Ethernet interface options
  • Auto-cutter rated at 1,000,000 cuts
  • Printhead rated at 62.14 mile lifespan
  • Interface cable included in box!

    Purchase Receipt Paper

    The XR510 has been discontinued. It is replaced by the XR520.
  • Product Specifications
    Dimensions 6W x 7.6D x 5.8H
    Weight 3.53 lb
    Color Options Black
    Interface USB, Parallel, Serial, Ethernet
    Print Speed 7.9 in / sec (200 mm / sec)
    Print Method Direct thermal
    Print Resolution 180 x 180 dpi
    Emulation ESC/POS command compatible
    OPOS Compatible Yes
    Character Set 95 Alphanumeric characters, 14 International, 128 x 18 extended graphics (1 space per page)
    Character/Line 42 Columns (font A) - 56 columns (font B)
    Barcodes Supported EAN-8, EAN-13, CODE 39, ITF, UPC-A, CODABAR, CODE 93, CODE 128, PDF 417(2D)
    Graphics Printing Yes
    Operating Temperature 41°F - 104°F (5°C - 40°C)
    MCBF 60,000,000 Lines
    Print Head Life 100 Million pulses, 100Km
    Auto Cutter Lifespan 1 million cuts
    Paper Dimensions 1.9 to 3.125 in (50 to 82.5 mm) wide, 3.27 in (83 mm) maximum diameter
    Paper Thickness 0.002 to 0.0035 in (0.06 to 0.09 mm)
    Sensors Status LED lights - Paper End, Cover Open, Paper Low, Black Mark
    Auto Cutter Yes
    Wall Mountable Yes
    Mac Compatible No
    Software Included Drivers downloadable
    In The Box Printer, users manual, 1 roll paper, power adapter, interface cable
