Star Micronics HSP7000 Series
The pictures shown are general images for product HSP7000 Series and may not be applicable to all part numbers

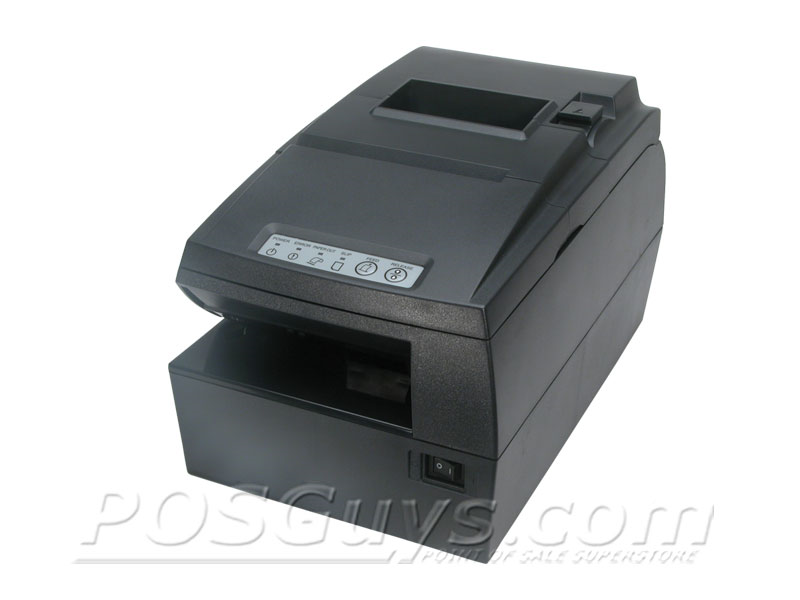

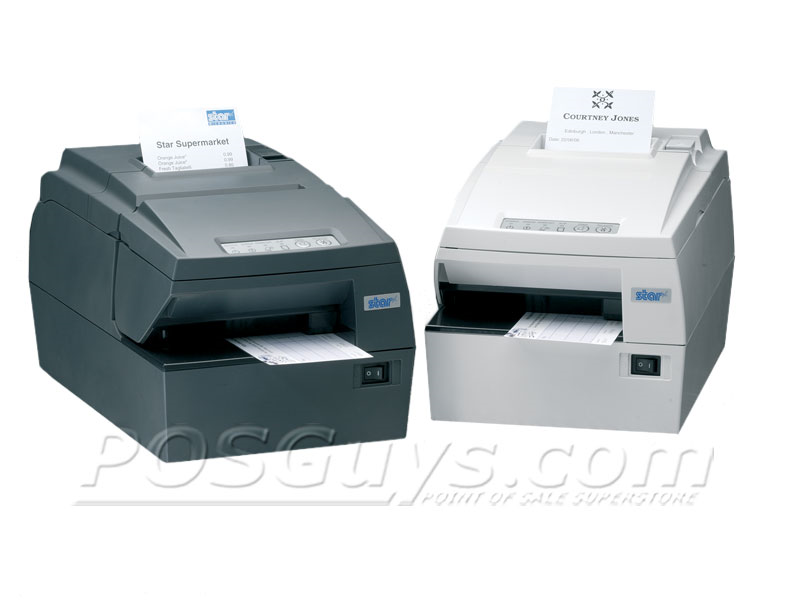

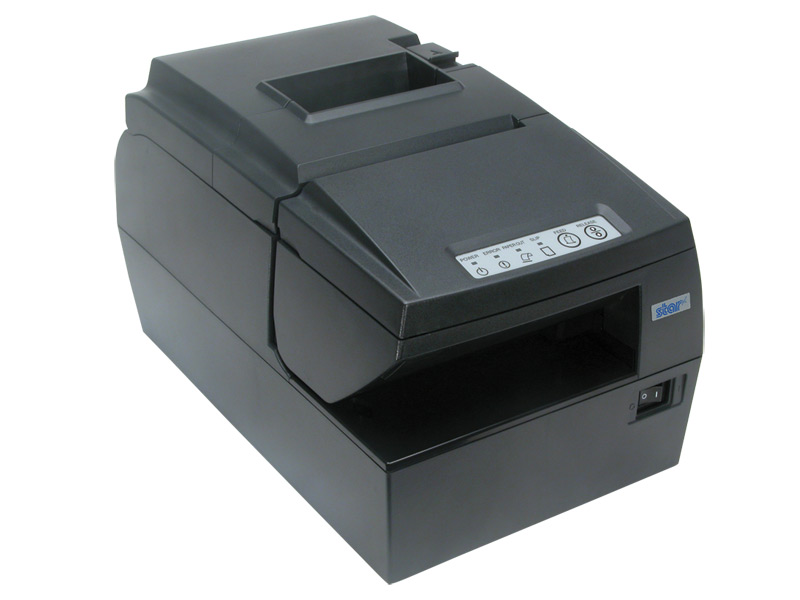

HSP7000 Series Receipt Printer
The Star Micronics HSP7000 Series has reached end of life. It has been replaced by the Star Micronics SP700.
The Star HSP7000 multifunction printer provides high speed receipt printing as well as MICR or slip printing for any retail location. Available with a receipt printer station and your choice of MICR reader, check endorser, check franker, or document validator, the HSP7000 series has the features you need for check approval and slip printing. Star's Logo Utility software allows you to custom receipts, adding coupons, store graphics, or other information based on data printed on the receipt. With your choice of 25-pin serial, Parallel, USB, or Ethernet interfaces, the Star HSP7000 receipt printer can drop into any location and provide years of great service.
Features Nearly 10" per second receipt printing speed
Windows XP, Vista, Linux, Mac OS X Drivers available
Two-Color Receipt Printing Capable
Auto Cutter rated at 1.5 million cuts
Click Here for Additional Warranty Information
Features
- Model Breakdown
- HSP7743: Multifunction Receipt/MICR Reader/Check Endorsing
- HSP7643: Multifunction Receipt/MICR Reader/Check Franking
- HSP7543: Multifunction Receipt/Document Validator/Slip Printer
Click Here for Additional Warranty Information
| Product Specifications | |
|---|---|
| Dimensions | 186W x 177H x 296D mm |
| Weight | 4.6 kg |
| Color Options | Dark Grey, Light Grey |
| Interface | 25-pin serial, parallel, USB, ethernet, virtual serial port to USB, virtual serial port to ethernet |
| Print Method | Receipt Printer: direct thermal - Slip / Endorsement Station: 9-pin impact dot-matrix |
| Print Speed | Receipt Printer: 250 mm / sec - Slip / Endorsement Station: 4.82 lps (lines per second) (40 columns) |
| Print Resolution | 203 x 203 dpi |
| Emulation | Star Mode, ESC/POS™ |
| OPOS Compatible | Yes |
| Graphics Printing | Yes |
| Barcodes Supported | Yes - including PDF417, contact manufacturer for more details |
| Data / Logo Storage | Yes |
| MCBF | Receipt Printer: 60,000,000 Lines - Slip/Endorsement Station: 37,000,000 Lines |
| Auto Cutter Lifespan | 1.5 Million cuts |
| Paper Dimensions | 80 mm standard width (58 or 76 mm with fitted guide), 83 mm maximum diameter |
| Paper Thickness | 0.065 to 0.085 mm |
| Two Color Printing Capabilities | Yes - red/black, blue/black, green/black (two color thermal paper required) |
| Sensors | Paper out, paper low, cover open |
| Auto Cutter | Yes - Guillotine |
| Wall Mountable | No |
| Mac Compatible | Yes - OSX |
| Software Included | Logo utility (store logos, coupons, and graphics), memory switch configuration setup utility, ethernet interface setup utility, create a virtual serial port for legacy applications |
| In The Box | Printer, installation CD (printer drive / manuals), setup sheet, interface cover, paper guide for 76 mm / 58 mm width, power switch cover, ferrite core, ink ribbon cartridge, start up paper roll |
| Check Endorsing | HSP7743 models |
| MICR Reader | HSP7643 and HSP7743 models |
| Slip Printing | HSP7643 and HSP7543 models |
