Star Micronics SK1-211

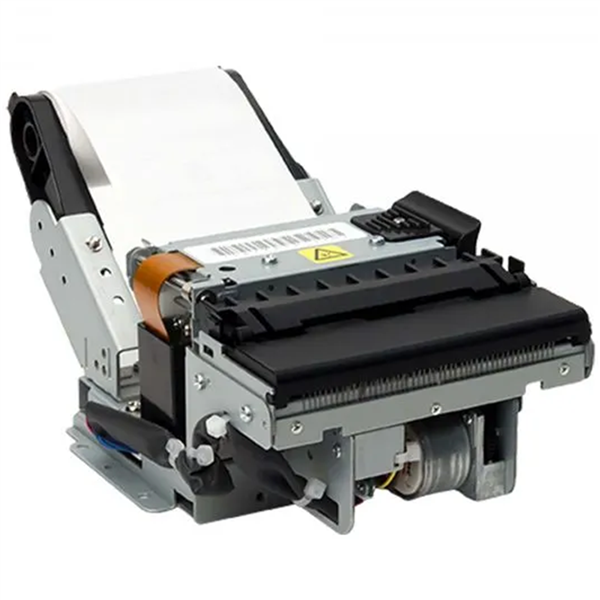

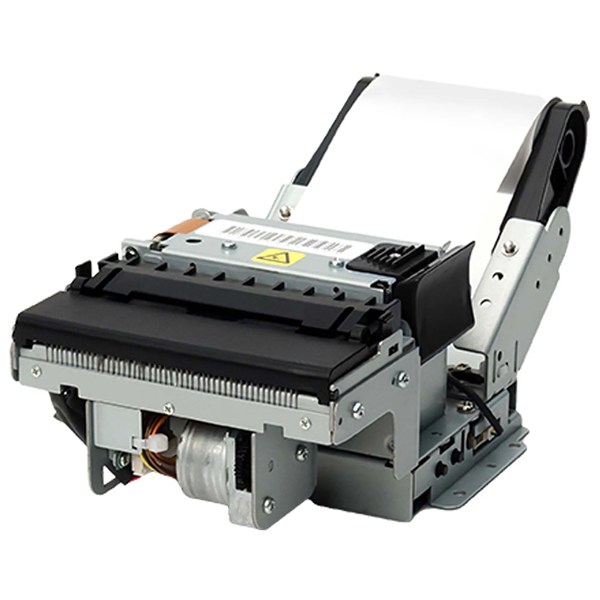

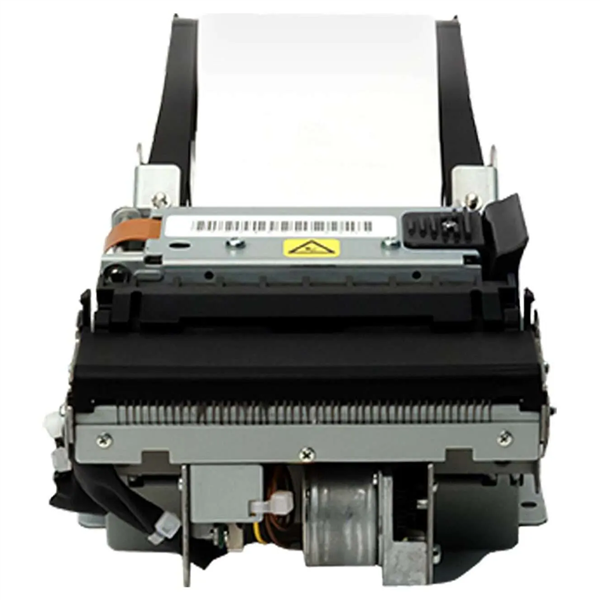

SK1-211 Product Image

The pictures shown are general images for product SK1-211 and may not be applicable to all part numbers

SK1-211 Receipt Printer


Compact, Lightweight, with Horizontal Orientation

The SK1-211 two-inch series provides dependable, maintenance-free printers that have a fast print speed of 250mm/sec with 203 dpi resolution. The printers come in either standard format (horizontal orientation) with or without presenter, and vertical format with or without presenter. All SK1-211 models come with RS-232C and USB interfaces which integrate with many commonly used kiosk solutions.

Key Features

  • Compact and lightweight
  • Max 250mm/sec high-speed printing
  • Full and partial cut (command selectable)
  • Easy to integrate with StarPRNT SDK
  • Supports receipt media

Available Options:

  • Standard Bezel
  • LED Bezel
  • Anti-Jam Bezel
  • Standard Presenter
  • LED Presenter
  • Large Paper Roll Holder (Standard Position / Upper Position / Beneath Position)

Available with many options, the SK1-200 Series is available in either standard format (horizontal orientation) with and without presenter, drop-in paper loading without presenter, or vertical format (vertical orientation) with and without front paper loading. Both standard and vertical formats come equipped with RS-232C and USB interface which integrates with many commonly used kiosk solutions.

Easily adaptable, the SK1-221 printers offer a compact design, featuring a bucket to drop in the paper roll, and accommodates a variety of applications for kiosks where space is a concern.

The SK1-200 Series ships standard with StarPRNT emulation, which allows software developers to take advantage of the full stack of Star Micronics technology, such as the StarPRNT SDKs and Star’s powerful line of drivers. Software developers that have already integrated Star products can now easily swap or extend their applications from a desktop printer to a kiosk printer. ESC/POS is still available for legacy integration.

The SK1-24 vertical format printer with front paper loading feature is specifically designed for gas pump application. Available options include large paper roll holder and bezel paper detector for the entire SK1-200 series.

Product Specifications
Printer Method Direct Line Thermal
Print Speed Max 250mm/sec
Paper Width 58mm, 60mm
Print Width 54mm, 56mm
Paper Roll Holder SK1-211: 120mm
SK1-221: 83mm
SK1-24: 83mm
Resolution 8 dots/mm (203dpi)
Font 8x16, 12x24 dots
Character Types PC437 / 850 / 852 / 857 / 858 / 860 / 863 / 865 / 866, WPC 1252
Bar Code JAN8/13, CODE39, ITF, CODABAR, CODE128, UPC-A/E
2D Bar Code QR, Maxicode, Micro PDF-417, PDF-417, DataMatrix
Interface Dual Serial (RS232C) & USB (V2.0 FULL SPEED)
Cutter Full and Partial Cut (Command Selectable)
Operating Voltage DC 24V
External Dimensions
SK1-24: 99 x 118 x 123 (w x h x d) mm
Reliability Max Cycles Before Failure-200 Million Pulses
Safety Standards CE, FCC, VCCI
