Star Micronics SK1-321
The pictures shown are general images for product SK1-321 and may not be applicable to all part numbers

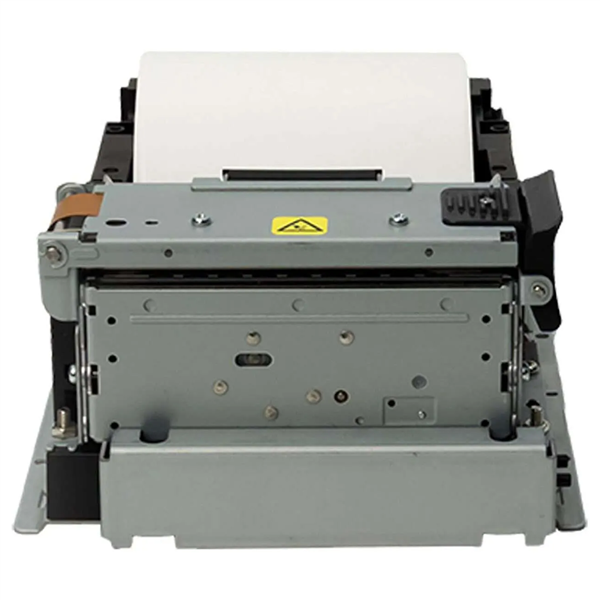

SK1-321 Receipt Printer
Lightweight and Compact with Drop-In Paper Loading
For kiosks where space is a concern, the SK1-321 series printers offer a compact design that can fit into a variety of applications. Equipped with standard format (horizontal orientation) drop-in paper loading, the SK1-321 series is easy to set up and maintain. All SK1-321 models come with RS-232C and USB interfaces which integrate with many commonly used kiosk solutions.
Key Features
- Drop-in paper loading
- Compact and lightweight
- Max 250mm/sec high-speed printing
- Supports receipt, ticket, and label media
- Available with StarPRNT or ESC/POS emulation
The SK1-300 Series of 3-inch kiosk printers have it all: they boast a print speed of 250mm/sec with 203 dpi resolution, while also demonstrating high reliability, compact design, and easy integration.
Available in standard format (horizontal orientation) with or without presenter, standard format drop-in paper loading with or without presenter, or vertical format (vertical orientation) without presenter, the SK1-300 Series of kiosk printers have the ability to fit many applications.
Featuring a compact (low height size: 95mm including paper roll) and lightweight (730g) design, the SK1-321 kiosk printer is an optimal solution for applications requiring a small direct thermal kiosk printer with standard 3-inch print width. The SK1-321 also features a drop-in and print paper basket design, compared to the SK1-311, which features a paper roll arm holder.
All SK1-300 models come with RS-232C and USB interface which integrates with many commonly used kiosk solutions. The SK1-300 Series also ships standard with StarPRNT emulation, allowing software developers to take advantage of the full stack of Star Micronics technology, such as the StarPRNT SDKs and Star’s powerful line of drivers. Software developers that have already integrated Star products can now easily swap or extend their applications from a desktop printer to a kiosk printer. ESC/POS is still available for legacy integration.
| Product Specifications | |
|---|---|
| Printer Method | Direct Line Thermal |
| Print Speed | Max 250mm/sec |
| Paper Width | 58mm, 60mm, 80mm, 83mm |
| Print Width | 54mm, 56mm, 72mm, 80mm |
| Paper Roll Holder | SK1-311: 120mm
SK1-321: 83mm |
| Resolution | 8 dots/mm (203dpi) |
| Font | 8x16, 12x24 dots |
| Character Types | PC437 / 850 / 852 / 857 / 858 / 860 / 863 / 865 / 866, WPC 1252 |
| Bar Code | JAN8/13, CODE39, ITF, CODABAR, CODE128, UPC-A/E |
| 2D Bar Code | QR, Maxicode, Micro PDF-417, PDF-417, DataMatrix |
| Interface | Dual Serial (RS232C) & USB (V2.0 FULL SPEED) |
| Cutter | Full and Partial Cut (Command Selectable) |
| Operating Voltage | DC 24V |
| External Dimensions | SK1-311: 127 x 137 x 79 (w x h x d) mm
SK1-321: 127 x 137 x 75 (w x h x d) mm |
| Reliability MCBF | Printing Pulses-200 Million Pulses
Print Head-150km Auto Cutter-2 Million Cuts |
