Star Micronics SK1-41
The pictures shown are general images for product SK1-41 and may not be applicable to all part numbers

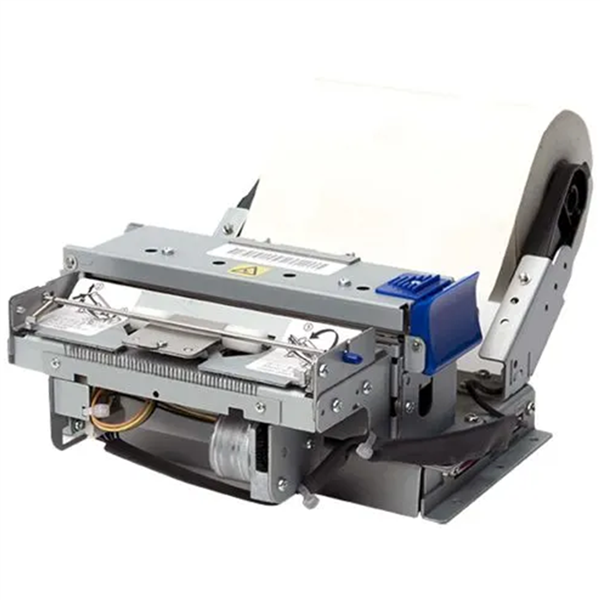

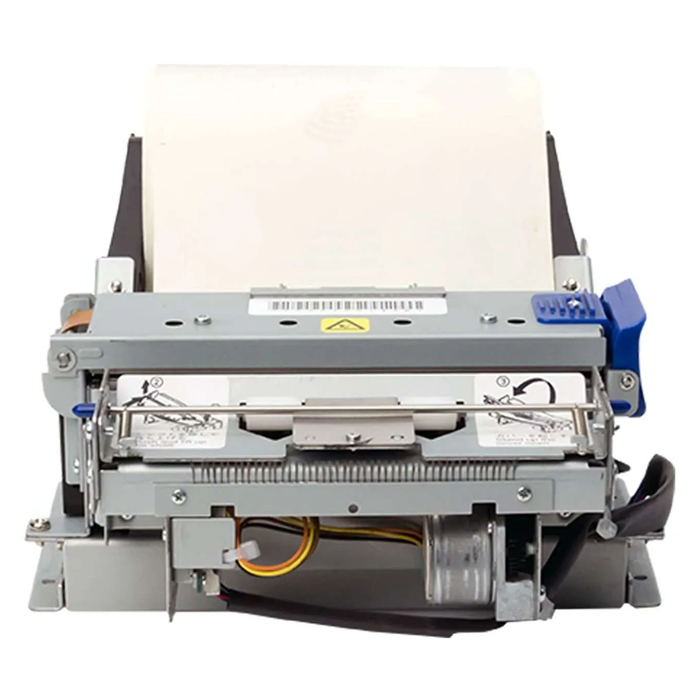

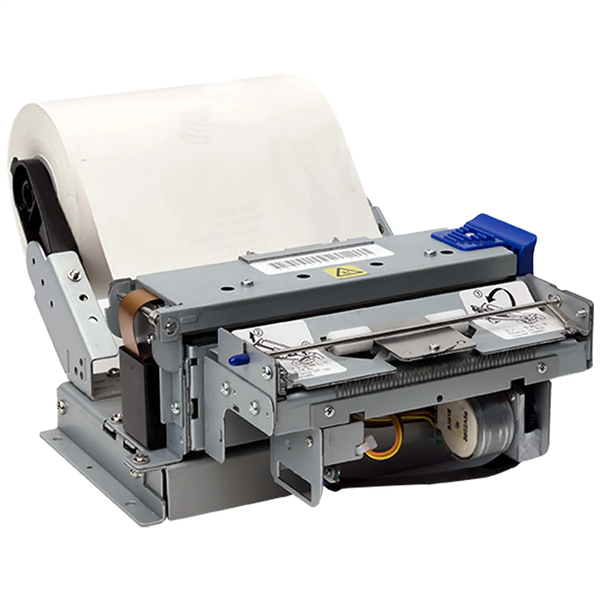

SK1-41 Receipt Printer
Wide-Format and Easy to Integrate
The SK1-41 four-inch series provides dependable, low maintenance printers that have a fast print speed of 150mm/sec with 203 dpi resolution. The thermal kiosk printers come in standard format (horizontal orientation), with or without presenter. All SK1-41 models come with RS-232C and USB interfaces which integrate with many commonly used kiosk solutions.
Key Features
- Compact and lightweight
- Max 150mm/sec high-speed printing
- Full and partial cut (command selectable)
- Easy to integrate
- Supports receipt, ticket, and label media
Available in standard format (horizontal orientation) with and without presenter, the SK1-41 four-inch series offers a quick and reliable four-inch wide printing solution designed for servicing kiosks which provide information-intensive reports and receipts.
Easy to integrate, the SK1-41 series features two different models to accommodate any application: The SK1- 41ASF4-LQ (featuring a standard paper roll holder) and the SK1-41ASF4-LQP (featuring a standard paper roll with presenter). All SK1-41 models come with RS-232C and USB interface which integrates with many commonly used kiosk solutions.
We offer Star Micronics full range of media! Having trouble finding what you need? Give us a call! We have people ready to help.
| Product Specifications | |
|---|---|
| Printer Method | Direct Line Thermal |
| Print Speed | Max 150mm/sec |
| Paper Width | 80mm, 83mm, 112mm |
| Print Width | 72mm, 80mm, 104mm |
| Paper Roll Holder | 120mm |
| Resolution | 8 dots/mm (203dpi) |
| Font | 8x16, 12x24 dots |
| Character Types | PC437 / 850 / 852 / 857 / 858 / 860 / 863 / 865 / 866, WPC 1252 |
| Bar Code | JAN8/13, CODE39, ITF, CODABAR, CODE128, UPC-A/E |
| 2D Bar Code | QR, Maxicode, Micro PDF-417, PDF-417, DataMatrix |
| Interface | Dual Serial (RS232C) & USB (V2.0 FULL SPEED) |
| Cutter | Full and Partial Cut (Command Selectable) |
| Operating Voltage | DC 24V |
| External Dimensions | SK1-41: 160.9 x 159.3 x 88.1 (w x h x d) mm |
| Reliability | Max Cycles Before Failure-200 Million Pulses
Print Head-150km Auto Cutter-1.5 Million Cuts |
| Safety Standards | CE, FCC, VCCI |
