Star Micronics TSP800 Series

POSGuys Rating:

5 ips

4.25 inch

Part of Star Receipt Printers

Starting At: $436.00

Ships Same Day

Available Models

Additional Images:

Color Options

Dark Grey, Light Grey

POSGuys Rating:

Lifetime Support 3 Year Warranty 20 Day Return Period Free Shipping

Starting At:
$436.00

Ships Same Day

Models & Options

Description
Specifications
Review
Downloads
FAQs

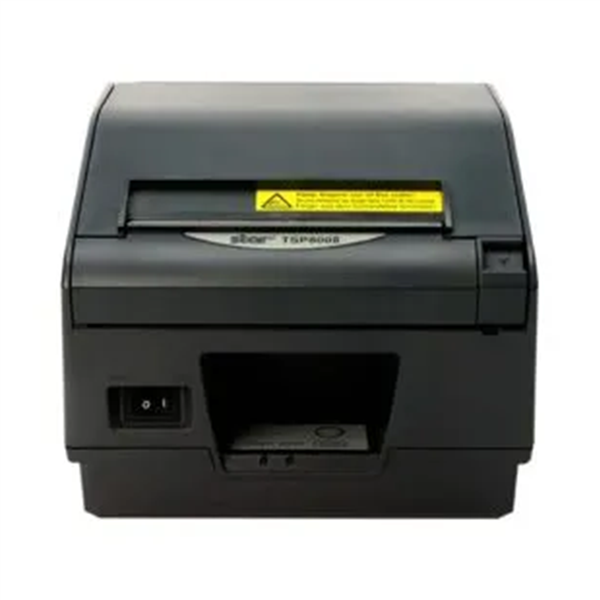

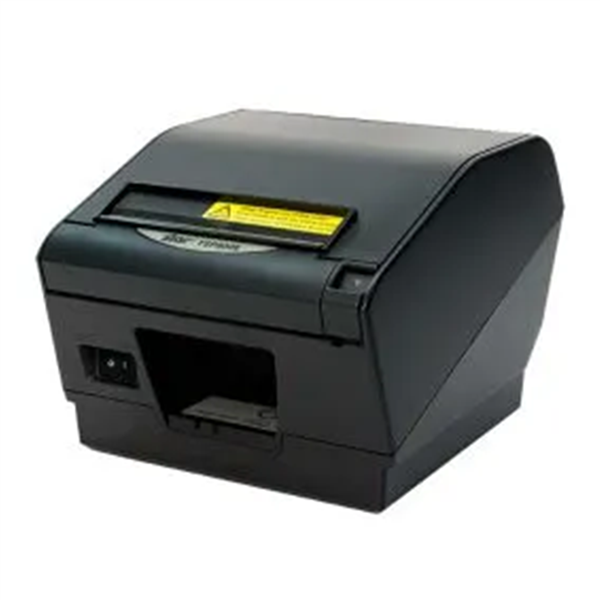

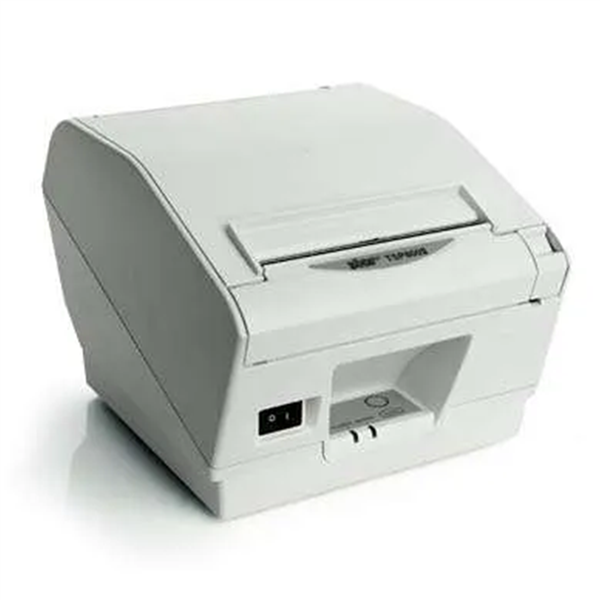

TSP800 Series Receipt Printer

The TSP800 and TSP800II are one of the few printers lines on the market that provide printing on 3" to 4.25" wide paper at an amazing speed. It is the perfect printer for applications that need to print a large amount of information on a receipt printer. Features include print speed of 50 lines/sec, auto-cutter, 2-color printing, swappable interfaces for easy integration, and logo store utility for coupons and graphic storage.

Click Here for Additional Warranty Information

Features

Extra wide printing width of 3" to 4.25"
Prints 50 lines per second
Auto-cutter
Optional 2-color printing

Product Specifications
Dimensions	Standard model: 180W x 213D x 148H mm - Wall mount model: 180W x 153D x 213H mm
Weight	Standard model: Approx. 1.9 kg - Wall mount model: 2.2 kg
Color Options	Dark Grey, Light Grey
Interface	RS232C, parallel, USB, ethernet
Print Method	Direct thermal
Print Speed	150 mm / sec
Print Resolution	203 x 203 dpi
Emulation	Star line mode, Star page mode, Star DP8340 mode, ESC/POS™
OPOS Compatible	Yes
Character Set	ANK 95, 32 Int 128 Graphic
Barcodes Supported	9 versions
Graphics Printing	Yes
Data / Logo Storage	Yes - 2 x 8 MBbit plus 2 x 1 Mbit Statis RAM
Operating Temperature	41°F - 113°F (5°C - 45°C)
MCBF	37,000,000 Lines
Auto Cutter Lifespan	2 Million cuts
Paper Dimensions	112 mm width (82.5, 80, and 58 mm with paper guide), 100 mm maximum diameter
Two Color Printing Capabilities	Yes - red/black, blue/black, green/black (two color thermal paper required)
Sensors	paper out, paper low, cover open, black mark
Auto Cutter	Optional - Guillotine with partial or full cut selectable
Wall Mountable	Optional - wall mounting bracket required
Mac Compatible	Yes
In The Box	Printer, users manual, start up paper roll, ferrite core

Frequestly Asked Questions

How do I install a Star Ethernet Printer?

Downloads
Data Sheet 800
Data Sheet 800II
Manual 800
Manual 800II
Drivers

Star Micronics TSP800 Series Reviews

POSGuys Rating:

Customer Reviews

Recommended Models

37962120

TSP800 Receipt Printer (TSP847IIL-24), Putty with 2 Color Printing, Auto Cutter and Tear Bar, Ethernet Interface, (Requires Power Supply, Part 30781751)

$563.00

Add to Cart

color: putty
interface: Ethernet
power supply: Not Included

37962130

TSP800 Receipt Printer (TSP847IIL-24GRY), Grey with 2 color Printing, Auto Cutter and Tear Bar, Ethernet Interface, (Requires Power Supply, Part 30781751)

$563.00

Add to Cart

color: Grey
interface: Ethernet
power supply: Not Included

39443710

TSP800 Receipt Printer (TSP847IIC-24GRY), Grey with 2 Color Printing, Auto Cutter and Tear Bar, Parallel Interface, (Requires Power Supply, Part 30781751)

$436.00

Add to Cart

color: Grey
interface: parallel
power supply: Not Included

39443800

TSP800 Receipt Printer (TSP847IID-24), Putty with 2 Color Printing, Auto Cutter and Tear Bar, RS-232 Serial Interface, (Requires Power Supply, Part 30781751)

$436.00

Add to Cart

color: putty
interface: Serial
power supply: Not Included

39443810

TSP800 Receipt Printer (TSP847IID-24GRY), Grey with 2 Color Printing, Auto Cutter and Tear Bar, RS-232 Serial Interface, (Requires Power Supply, Part 30781751)

$436.00

Add to Cart

color: Grey
interface: Serial
power supply: Not Included

Accessories

30781870 External Power Supply (PS60A-24B1) (Replaces 30781753)

$35.00

Add to Cart

28102 6 Foot USB Printer Cable: Black, A to B

$12.00

Add to Cart

37967430 Labels TSP800: 111mm Roll Width, 4 1/8 x 3 Inch Labels, Black Mark on back side, 600 Labels/Roll, 12 Rolls/Case, Blue Core (TRL111-4x3-BM-D100-C31, 12PK)

$170.00

Add to Cart

37967440 Labels TSP800: 111mm Roll Width, 4 1/8 x 6 Inch Labels, Black Mark on back side, 300 Labels/Roll, 12 Rolls/Case, Blue Core (TRL111-4x6-BM-D100-C31, 12PK)

$150.00

Add to Cart

37967450 Labels TSP800: 111mm Roll Width, 4 1/8 x 1 Inch Labels, Black Mark on back side, 1600 Labels/Roll, 12 Rolls/Case, Blue Core (TRL111-4x1-BM-D100-C31, 12PK)

$170.00

Add to Cart

37963930 Paper TSP800II: 112mm Width, 328 ft Length, 12 Rolls/Case, Blue Core (TRF112-D100-C17, 12PK)

$90.62

Add to Cart

39607803 Ethernet Interface Board IFBD-HE07 for TSP650, TSP700II, TSP800II, TSP828, TUP500 SERIES' - Replaces 39607802

$140.00

Add to Cart

39607820 Swappable USB Interface Board (IFBD-HU07 USB I'FACE) for TSP654II, TSP700,TSP800

$48.00

Add to Cart

39607200 RS232 Serial Interface Board for TSP650, TSP700, TSP800 & TUP500 Series'

$40.00

Add to Cart

39607211 Parallel Interface Board TSP650, TSP700, TSP800 & TUP500 Series'

$37.00

Add to Cart

39590110 Wall Mount Kit for TSP800 (WBT800)

$45.00

Add to Cart

DIBM25C06 6-Foot Parallel Printer Cable for Star Printers

$5.00

Add to Cart

2901-6MF9-STAR 6-Foot Null Modem Serial Printer Cable (9 to 25 pin) for Star Printers

$5.00

Add to Cart

243-006 6-Foot A to B USB Printer Cable for Star Printers

$5.00

Add to Cart

DIBM25C06-BLACK 6-Foot Parallel Printer Cable for Star Printers, Black

$7.00

Add to Cart

87998190 Star Micronics 3-Year Swap-A-Star Warranty (must be purchased within 15 days of printer purchase)

$89.00

Add to Cart

87998200 Star Micronics 4-Year Swap-A-Star Warranty (must be purchased within 15 days of printer purchase)

$80.00

Add to Cart

87998100 Star Micronics 3-Year Extend-A-Star Warranty (must be purchased within 15 days of printer purchase)

$75.00

Add to Cart

87998110 Star Micronics 4-Year Extend-A-Star Warranty (must be purchased within 15 days of printer purchase)

$70.00

Add to Cart

89778200 Star Micronics 4-Year Swap-A-Star (includes Extend-A-Star) Warranty (must be purchased within 15 days of printer purchase)

$72.00

Add to Cart

Previously Available Models

39443101

TSP847C-24 Two-Color Printer, Color: Putty with Tear Bar and Auto Cutter, Power Supply, Parallel Interface
This model has reached end of life.

Please Call

39443111

TSP847C-24 GRY Two-Color Printer, Color: Grey with Tear Bar and Auto Cutter, Power Supply, Parallel Interface
This model has reached end of life.

Please Call

39443001

TSP847D-24 Two-Color Printer, Color: Putty with Tear Bar and Auto Cutter, Power Supply, Serial Interface
This model has reached end of life.

Please Call

39443011

TSP847D-24 GRY Two-Color Printer, Color: Grey with Tear Bar and Auto Cutter, Power Supply, Serial Interface
This model has reached end of life.

Please Call

39443201

TSP847U-24 Two-Color Printer, Color: Putty with Tear Bar and Auto Cutter, Power Supply, USB Interface
This model has reached end of life.

Please Call

39443211

TSP847U-24 GRY Two-Color Printer, Color: Grey with Tear Bar and Auto Cutter, Power Supply, USB Interface
This model has reached end of life.

Please Call

37998850

TSP847L-24 Two Color Printer, Color: Putty with Tear Bar and Auto Cutter, Power Supply, Ethernet Interface
This model has reached end of life.

Please Call

37998860

TSP847L-24 GRY Two Color Printer, Color: Grey with Tear Bar and Auto Cutter, Power Supply, Ethernet Interface
This model has reached end of life.

Please Call

39443700

TSP800 Receipt Printer (TSP847IIC-24), Putty with 2 Color Printing, Auto Cutter and Tear Bar, Parallel Interface, (Requires Power Supply, Part 30781751)
This model has reached end of life.

Please Call

39443900

TSP800 Receipt Printer (TSP847IIU-24), Putty with 2 Color Printing, Auto Cutter and Tear Bar, USB Interface, (Requires Power Supply, Part 30781751)
This model has reached end of life.

Please Call

39443910

TSP800 Receipt Printer (TSP847IIU-24GRY), Grey with 2 Color Printing, Auto Cutter and Tear Bar, USB Interface, (Requires Power Supply, Part 30781751)
This model has reached end of life.

Please Call
