Star Micronics mC-Label2

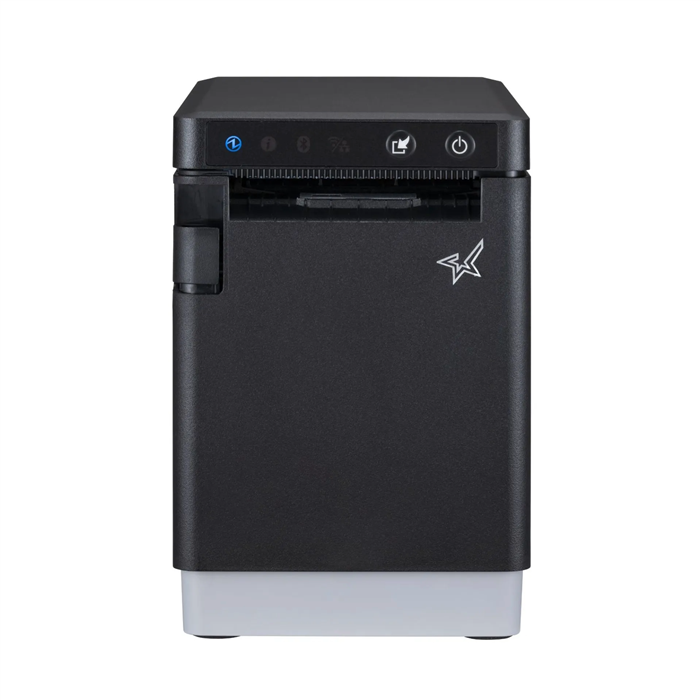

_800_700.png "mC-Label2 Product Image")

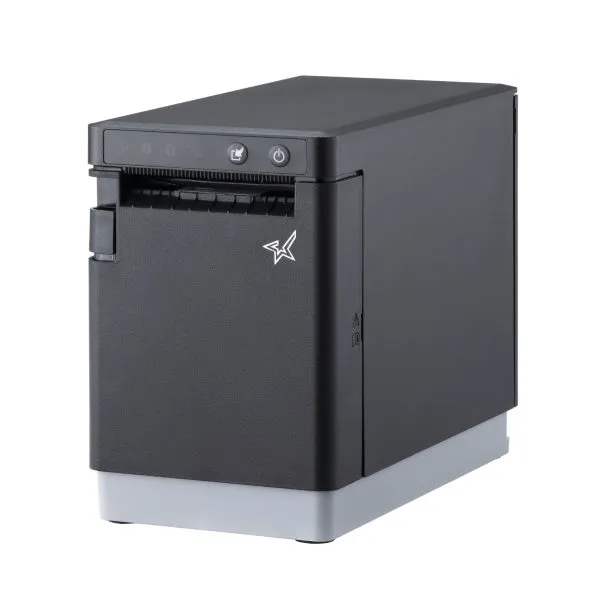

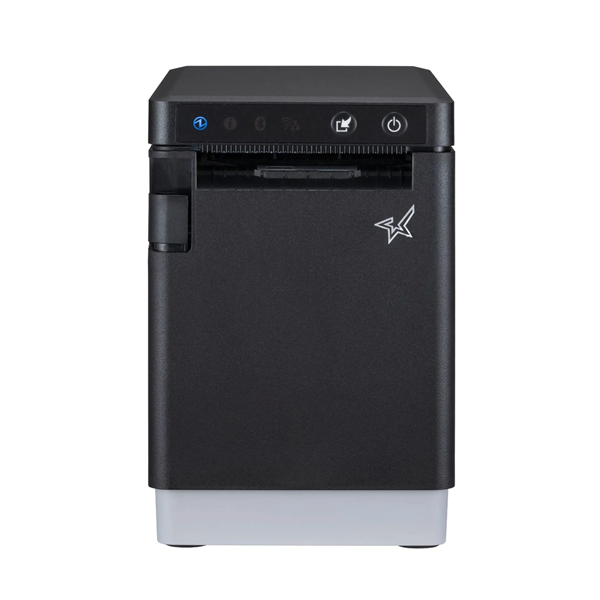

The pictures shown are general images for product mC-Label2 and may not be applicable to all part numbers

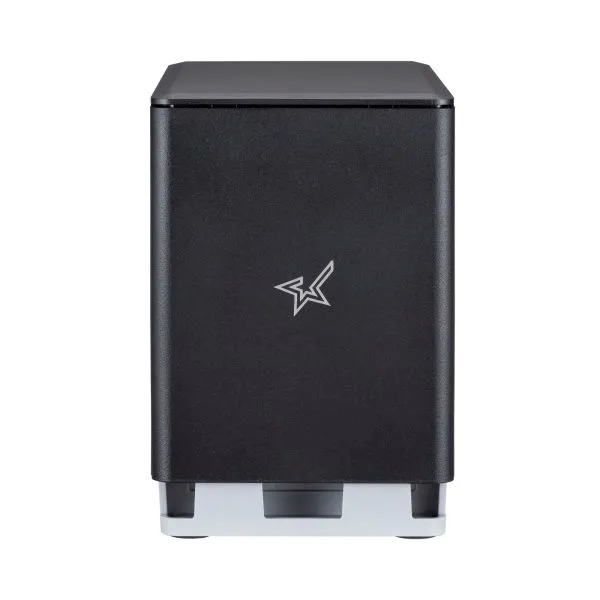

_800_600.png "Alternate image for mC-Label2"){kind=small}
_800_600.png "Alternate image for mC-Label2"){kind=small}
_800_600.png "Alternate image for mC-Label2"){kind=small}
_800_600.png "Alternate image for mC-Label2"){kind=small}
_800_600.png "Alternate image for mC-Label2"){kind=small}
_800_600.png "Alternate image for mC-Label2"){kind=small}
mC-Label2 Receipt Printer
Multifunctional Label Printer
The mC-Label2 by Star Micronics delivers high-resolution labeling in a compact 2-inch design, perfect for tight spaces and small-format prints. It features a front-loading, front-exit design that fits neatly under counters or shelves and supports linerless labels, die-cut labels, receipts, and continuous paper with sharp 300 dpi clarity. This Cloud Ready label printer works with Star Micronics Cloud Services, StarIO.Online, and Label Builder for template-based printing and device management. With One Touch Label, users can store and print up to three static designs directly from the printer, even without an internet connection. Compatible with iOS, Android, and Windows, the mC-Label2 is available in wired and wireless models to fit a wide range of retail, foodservice, healthcare, and cannabis applications.
Key Features - mC-Label2 Multifunctional Label Printer
- Compact footprint, high-resolution 300 dpi

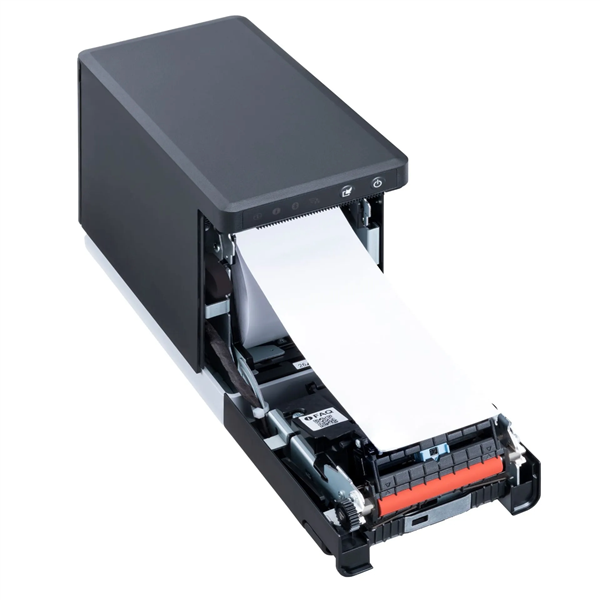

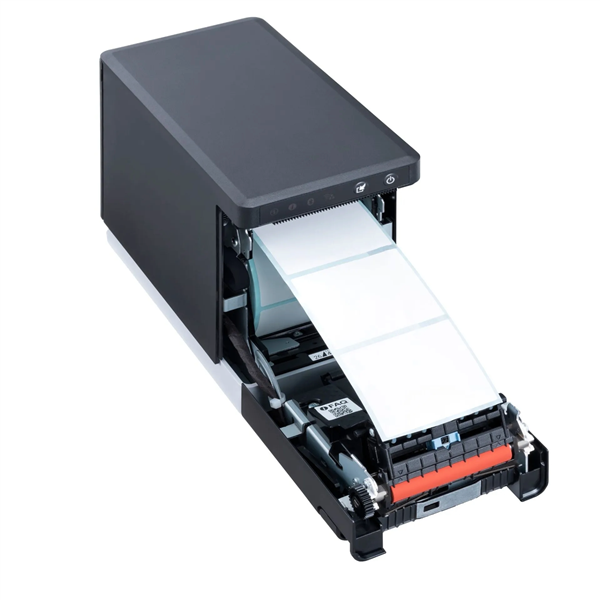

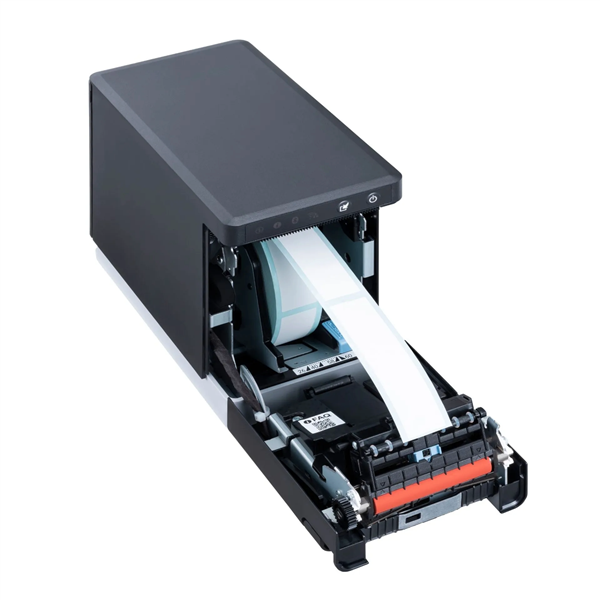

- Front-loading, front-exit design that fits in tight spaces
- Supports linerless, die-cut, continuous labels, and receipt media
- Works with paper widths from 25 mm to 60 mm
- Offers USB-C, LAN, WLAN, USB-A, and Apple MFi-certified Bluetooth connectivity (X4 models)
- Pairs easily with Android, Windows, and iOS devices
- Optional die-cut-only model for focused use cases (LBL models)

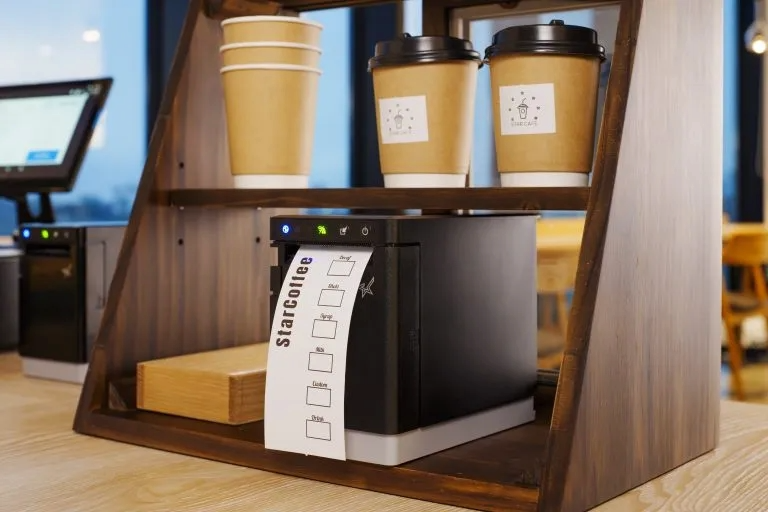

Precision Labeling in a Compact Design
The mC-Label2 brings professional-grade labeling to tight spaces with a small footprint and smart front-loading, front-exit architecture...

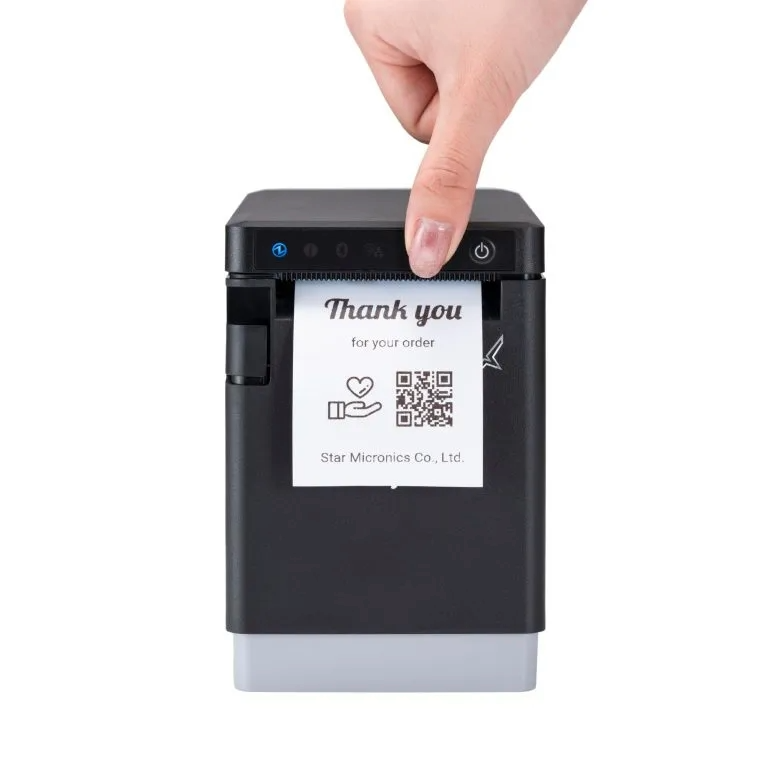

Custom Labels at the Push of a Button
...With One Touch Label, users can print any of those stored labels by simply pressing the printer’s multifunction button—no internet or software access needed.
Smarter Connectivity Made Simple
...The mC-Label2 is ready for fast, scalable, and secure cloud-based printing, whether you’re managing one printer or hundreds.

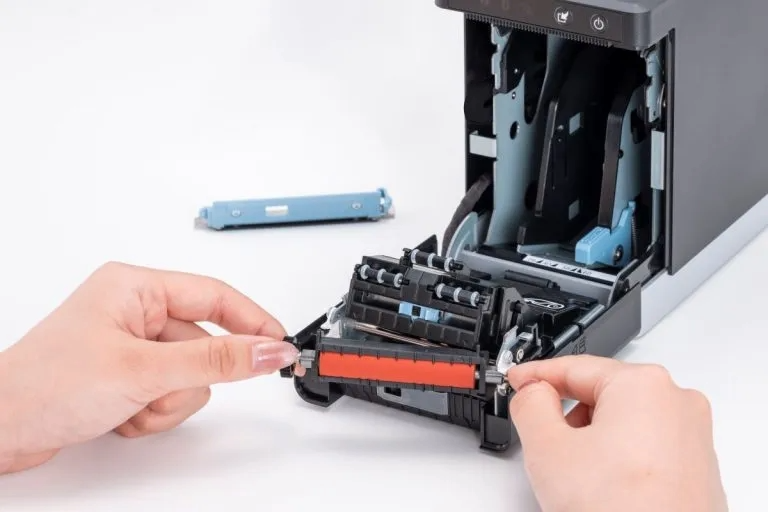

Tool-Free Maintenance, Done Right
...Color-coded components make part removal and replacement intuitive, and the tool-free design means your team can handle it all without IT support.

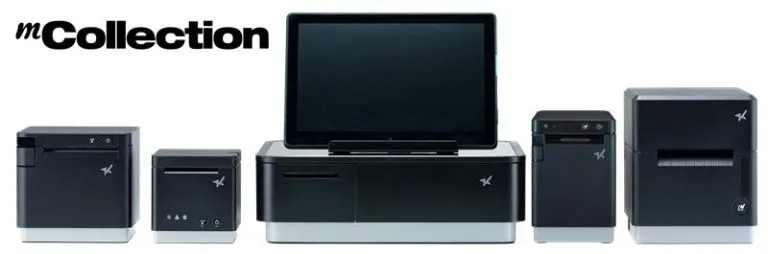

Part of the mCollection®
The mC-Label2 multifunctional label and receipt printer is part of the Star Micronics’ mCollection – a line of mPOS hardware designed for the mobile future...
mC-Label2 Online Manual can be found here: mC-Label2 Online Manual
We offer Star Micronic's full range of media! Having trouble finding what you need? Give us a call! We have people ready to help.
| Product Specifications | |
|---|---|
| Printer Method | Direct Thermal |
| Print Resolution | 300 dpi (11.8 dots/mm) |
| Print Speed | Up to 180 mm/sec |
| Paper Width | 25 mm – 60 mm |
| Print Width | 15 mm – 56.9 mm |
| Roll Diameter | Max. φ102mm |
| Paper Thickness | 53 – 154μm (Varies depending on paper type) |
| Media Types Supported | MCL21 Models:
Linerless labels (sticky/permanent), Die-cut, Continuous, Thermal receipt
MCL21 LBL Models: Die-cut labels, Thermal receipt |
| Top Margin | 3 mm (default), 11 mm supported |
| Cut Method | MCL21 Models:
Linerless labels (sticky/permanent), Die-cut, Continuous, Thermal receipt
MCL21 LBL Models: Tear bar |
| Interfaces | MCL21 Models:
USB-C as Ultra-C, USB-A, LAN, WLAN, Bluetooth (MFi-certified)
MCL21 LBL Models: USB-C as Ultra-C, USB-A, LAN, Optional WLAN |
| Emulation | StarPRNT |
| Flexible Connection | StarXpand SDK, StarPRNT SDK, Star PassPRNT™, CloudPRNT™, CloudPRNT Next, Various drivers, Star Quick Setup Utility®, SteadyLAN |
| System Compatibility | All major operating systems: iOS (MFi on Bluetooth models), macOS, Android, Windows, Linux |
| Cloud Compatibility | CloudPRNT Next, CloudPRNT, StarIO.Online, Star Micronics Cloud Services, Label Builder |
| One Touch Label | Store and print up to 3 static label designs offline |
| Paper Loading | Front loading and drop in |
| Paper Exit | Front exit |
| Front exit | MCL21 Models:
Cover open, paper end, GAP/black mark, hold print (taken), paper jam, cutter home position
MCL21 LBL Models: Cover open, paper end, GAP/black mark |
| Dimensions | 98 x 185 x 145.5 mm (W x D x H) |
| Weight | Approx. 1.6 kg (main unit only) |
| Ingress Protection Rating | IP22 |
| Included Accessories | Power supply, AC cable, USB cable (A to C), easy setup guide, safety guide |
| AC Adapter | PS65AT-24A |
| Model Variants | MCL21 Models (all-media):
MCL21Ci, MCL21CWBI
MCL21 LBL Models (die-cut & receipt only): MCL21Ci LBL, MCL21CWBI LBL |
| Operating Temperature | 5°C to 45°C |
| Humidity Range | 10% to 90% RH (non-condensing) |
| Options | Replacement Parts: 2in1(Cutter & Platen), Cutter Unit, Platen Roll Unit
Peripherals: Star Barcode Scanners, Wireless LAN Unit (MCW10), mC-Sound (MCS10), BU01-24-A Ticket Alarm/Buzzer |
| Warranty | 2-Year Limited Manufacturer Warranty (US & Canada) |
Star Micronics mC-Label2 Reviews
Customer Reviews
Recommended Models
mC-Label2, Barcode Label Printer, Adjustable Label Width with Max 2”, Tearbar, 300 dpi, USB-C with Power Delivery for iOS / Android / Windows, Ethernet (LAN), SteadyLAN, CloudPRNT, Peripheral Hub, Black, Ext PS Included
Additional Models
mC-Label2 X4, Label and Linerless Label Printer, Adjustable Label Width with Max 2”, Cutter, 300 dpi, WLAN, USB-C with Power Delivery for iOS / Android / Windows, Bluetooth (MFi), Ethernet (LAN), SteadyLAN, CloudPRNT, Peripheral Hub, Black, Ext PS Includ
mC-Label2, Label and Linerless Label Printer, Adjustable Label Width with Max 2”, Cutter, 300 dpi, USB-C with Power Delivery for iOS / Android / Windows, Ethernet (LAN), SteadyLAN, CloudPRNT, Peripheral Hub, Black, Ext PS Included
mC-Label2 X4, Barcode Label Printer, Adjustable Label Width with Max 2”, Tearbar, 300 dpi, WLAN, USB-C with Power Delivery for iOS / Android / Windows, Bluetooth (MFi), Ethernet (LAN), SteadyLAN, CloudPRNT, Peripheral Hub, Black, Ext PS Included
