    Home » RFID Solutions » DataLogic 2128P
    Point of Sale Buyer's Guide

    DataLogic 2128P

    2128P Product Image

    The pictures shown are general images for product 2128P and may not be applicable to all part numbers

    Alternate image for 2128P
    Alternate image for 2128P
    Alternate image for 2128P
    Alternate image for 2128P
    Alternate image for 2128P
    Alternate image for 2128P
    Alternate image for 2128P
    Alternate image for 2128P
    Buy it now
    POSGuys Rating:Not Rated
    Lifetime Support
    1 Year Warranty
    15 Day Return Period
    Free Shipping
    2128P Features
    RFID

    2128P RFID Solutions

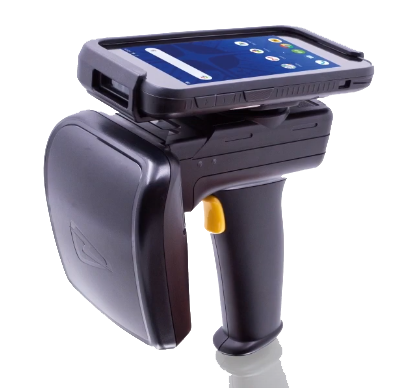

    Handheld UHF RFID Reader for the Memor 11 PDA

    Maximize Your Inventory Accuracy
    When performing inventory tasks with 2128P the accuracy level is at its highest and provides a reliable stock status that helps customers to make the right business decisions.

    Top Performance RFID Tag Capture
    Designed to provide the best-in-class performance for quickly reading large numbers of UHF RFID tags, the 2128P reader boasts improved levels of accuracy and RFID read/write performance. All items within range are read simultaneously. In-reader Tag de-duplication software removes duplication of tag reads, thereby improving reading performance and facilitating data flow. Sophisticated user feedback and embedded processes and accelerometers provide the most configurable, in-depth and capable ‘search and find’ features currently available.

    Ultra Secure Data Gathering
    As the ePop-Loq® system provides a wired connection between the Memor 11 and 2128P RFID Reader, sensitive data can be given that extra level of security by avoiding the use of Bluetooth® data transfer. The 2128P handheld UHF reader supports batch data collection and is equipped with a Micro SD socket and a real time clock. Up to 500 million transponder EPCs can be stored on a 32 GB Micro SD card. This provides the ability to collect and log data even if USB or Bluetooth communication channels are not available.

    Easy to Use
    Thanks to a set of software applications the use of 2128P reader is simplified: RFID Explorer, RFID Tag Finder, RFID Scan Scan Write.

    Easy to Recharge

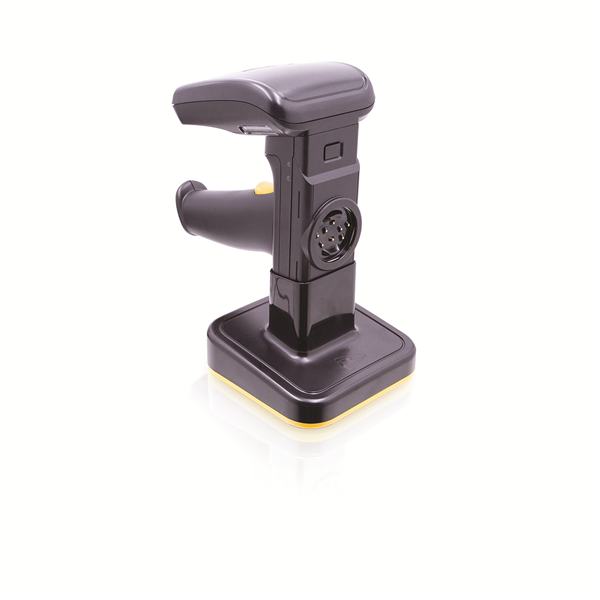

    The 2128P Charging Station allows charging of both the 2128P UHF RFID Reader and the Memor 11 attached via the active ePopLoq® case. The recharging operations are simplified and speeded up without the need to disconnect and recharge the two objects separately.

    Easy to Attach and Detach

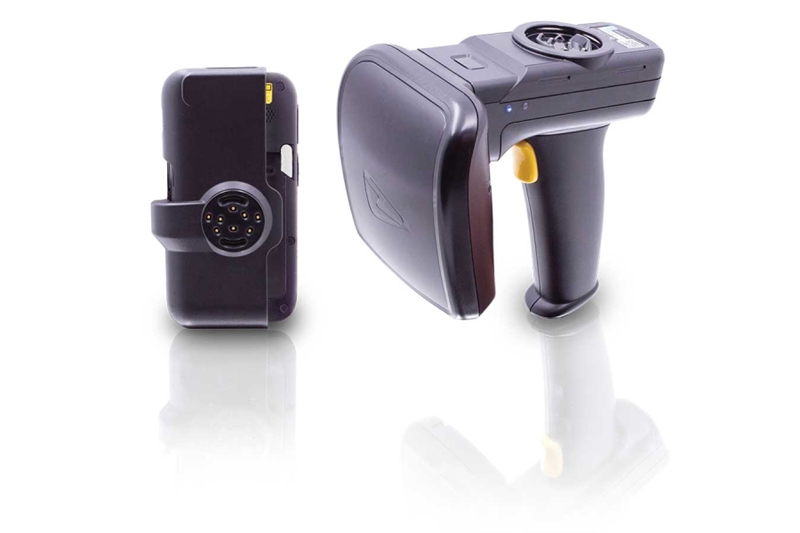

    The ePop-Loq® allows a fast and reliable way to attach and detach to the Memor 11 and it is designed to safely separate when the reader is subject to large impacts, such as when dropped.

    Features

    • Provides a larger, fixed high gain antenna for up to 9 m / 29.5 ft of read range
    • In-reader Tag de-duplication software
    • The integrated ePop-Loq® socket allows for data and charge connections
    • Flat landing contact pads, allowing for quicker docking and greater durability
    • Bluetooth Version 4.2 technology
    • Supports both Bluetooth Classic as well as Bluetooth Low Energy (BLE) connectivity
    • Can be operated in Serial Port Profile (SPP) or Human Interface Device mode (HID)
    • LED indicators on the rear side of the antenna
    • Direct USB Connection for Ultra secure data gathering
    • Equipped with a Micro SD socket and real-time clock
    • Supports automatic re-connect mode

    Industries - Applications

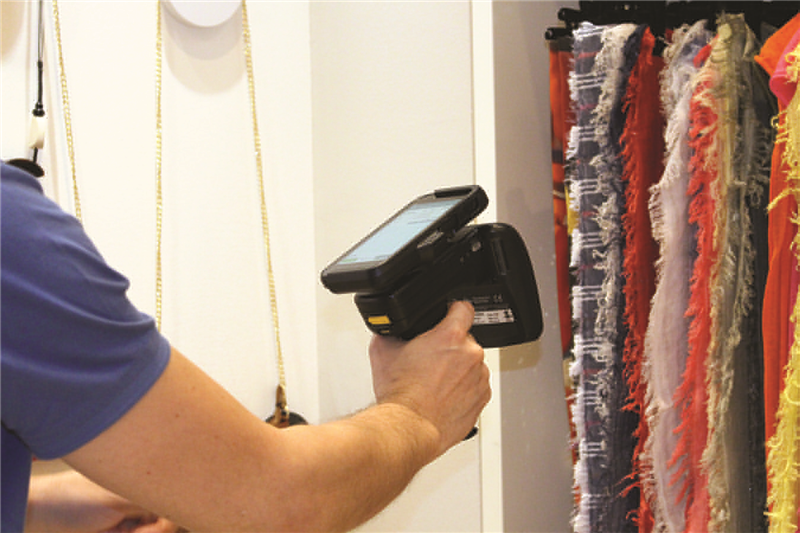

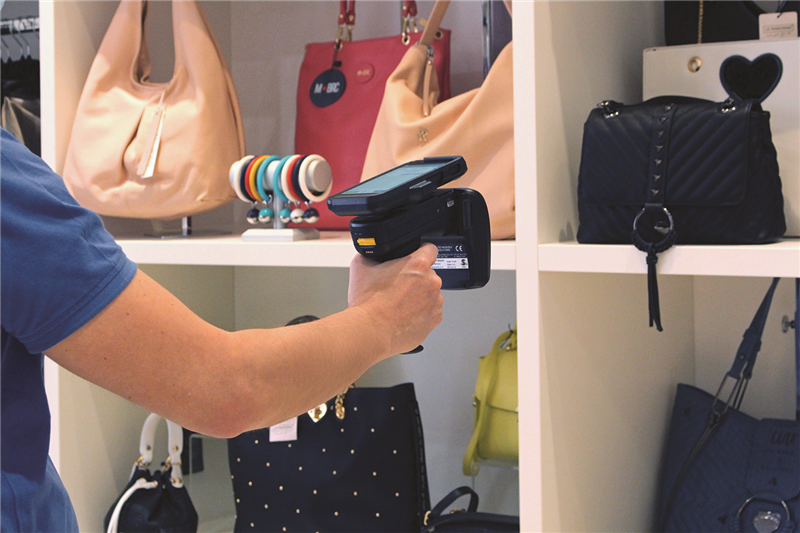

    • Retail: In-store and Back Room Inventory, Item location, Price Checking
    • Transportation & Logistics: Receiving Control, Picking, Item Tracking and Location, Air baggage tracking
    • Manufacturing: Material/Finished Goods Inventory, Locating, Cycle Counting, Receiving Control, Automatic Replenishment
    • Healthcare: Surgical Instrument Tracking, Sample Tracking, Blood Bag Tracking, Pharmaceutical and Laboratory Inventory

    Looking for RFID Software?

    We reccomend TagMatiks Wedge. TagMatiks Wedge makes it easy to collect data from RFID labels and tags for your inventory. Use RFID handhelds to collect data and easily feed into your business systems. The out-of-the-box system can filter tags and display information using a reference file in a configurable view, making it a great fit for any business. The solution supports both all-in-one RFID handhelds as well as iOS and Android devices in conjunction with an RFID sled.

    Follow this link to learn more: TagMatiks Wedge

    Product Specifications
    RFID Performance
  • Maximum Output Power: 34 dBm EIRP
  • Nominal Read Range: Up to 9 m / 29.5 ft
  • Nominal Write Range: Up to 4 m / 13.1 ft
  • Field: 150-degree forward facing
  • Standard Supported: EPC Class 1 Gen 2
  • Frequency Range: EU: 865-868 MHz; US: 902-928 MHz
  • Batch Mode Memory: Up to 500 million date and time stamped EPCs can be stored on a 32GB Micro SD Card
    		•
    Communication
  • Host Mobile Computer: Datalogic’s Memor 11 PDA
  • Direct USB Communication: Active ePop-Loq® case for Memor 11 (ePop-Loq® system)
  • Bluetooth Wireless Technology: Version 4.2
  • Bluetooth Profiles: SPP Profile, HID Profile, Bluetooth Low Energy
  • Bluetooth Range: Up to 100 m / 328 ft
  • Bluetooth Pairing: Simple Secure Pairing, NFC OOB Pairing
    		•
    Physical Characteristics
  • Dimensions: 158 x 98 x 170 mm / 6.2 x 3.8 x 6.7 in (LxWxH)
  • Weight: 445 g / 15.7 oz (including battery)
  • Enclosure Materials: Polycarbonate
  • User Input: Trigger button
  • User Feedback: Speaker, vibration motor, LED
  • Power: Removable, rechargeable 3.7 V 2300 mAh Lithium Polymer pack, 8.6 Watt hours
  • Charging: Requires Charging cradle for battery charging
    		•
    Environmental
  • Operating Temperature: -10 °C to 50 °C / 14 °F to 122 °F
  • Charging Temperature: Standard Trigger Handle: 5° C to 40 °C / 41 °F to 104 °F
  • Storage Temperature:
    - Less than 1 month at -20 °C to 45 °C / -4 °F to 113 °F
    - Less than 6 months at -20 °C to +5 °C / -4 °F to 95 °F
  • Humidity: 5 to 85% non-condensing
  • Drop Spec: Multiple drops to concrete: 1.2 m / 4 ft ambient, 0.9 m / 3 ft across the operating temperature range according to IEC 68-2-32, Procedure 1.
  • Tumble: Multiple 0.5 meter tumbles at room temperature according to IEC 68-2-32, Procedure 2.
  • Electrostatic Discharge (ESD): ± 15k VDC air discharge; ± 8k VDC contact discharge
  • Particulate and Water Sealing: IP52
    		•

    DataLogic 2128P Reviews

    POSGuys Rating: Not Rated

    Customer Reviews

    Trustpilot

    Recommended Models

    2128P-RFID-READER-MEMOR-KIT
    2128P RFID Reader with Memor 11 Kit. This kit includes the RFID Reader with Charge Cradle, Mounting Case, and Memor 11 Mobile Device.
    $2454.00 Add to Cart
    2128P-RFID-READER-KIT
    2128P RFID Reader Only Kit. This kit includes the RFID Reader, Charge Cradle & Mounting Case. Memor 11 Sold Separately.
    $1655.00 Add to Cart

    Additional Models

    DLR-SLED01-US
    2128P SLED UHF RFID Reader for Memor US (includes Battery pack)
    $1445.50 Add to Cart
    AH-SLED01

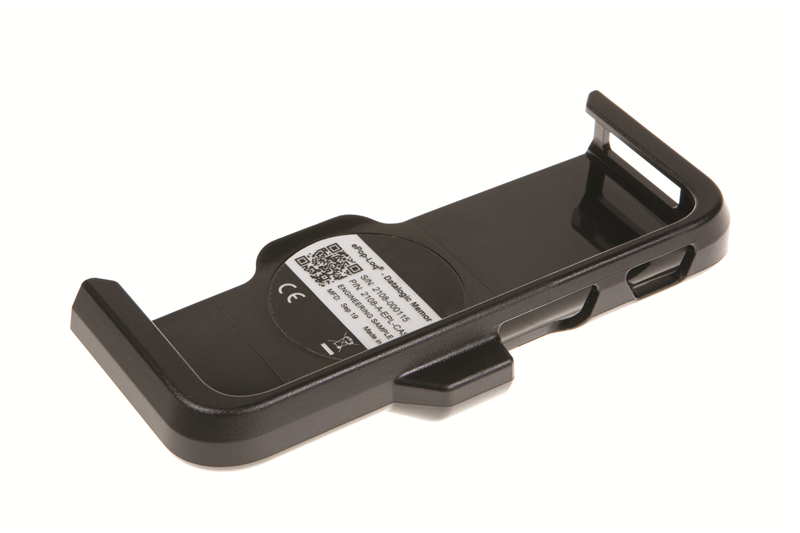

    Active ePop-Loq case for Memor 10 (required)
    $86.26 Add to Cart
    RBP-SLED01
    Battery pack spare rechargeable for 2128P (extra battery pack)
    $138.76 Add to Cart
    CC-SLED01

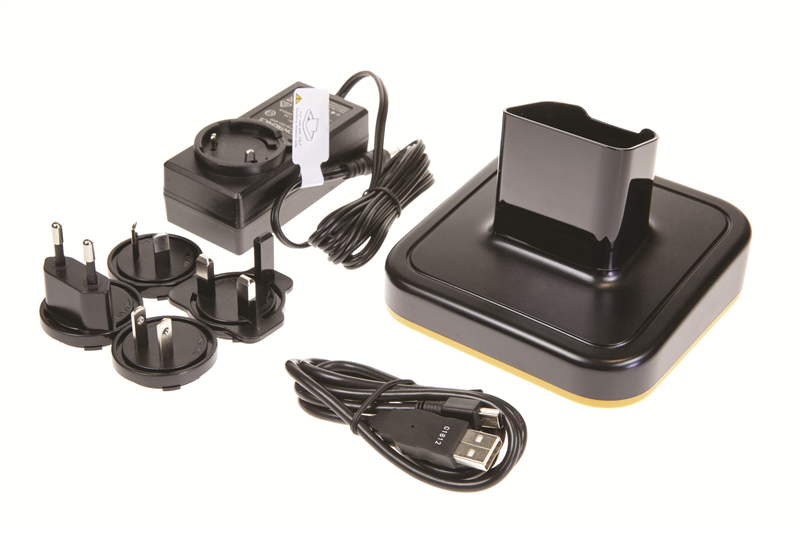

    Charging cradle for 2128P RFID Reader (required)
    $123.00 Add to Cart

    Accessories

    PG-TM-WEDGEA
    TagMatiks Wedge Android License: Simplifies RFID inventory data collection with configurable tag filtering, supporting all-in-one handhelds and iOS/Android devices with an RFID sled.
    Please Call
