Eaton 3S UPS

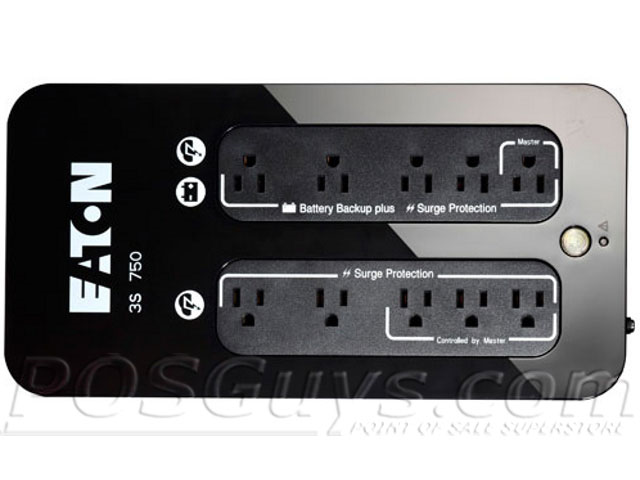

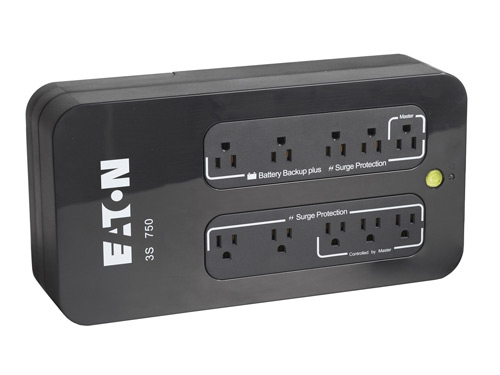

The pictures shown are general images for product 3S UPS and may not be applicable to all part numbers

3S UPS Cables and Power Backup

This product replaces the older Eaton 3105 UPS.

The Eaton 3S UPS helps to protect your computer equipment in case of everyday events such as lightning strikes, storms, over-demand on the utility grid, accidents, and natural disasters knocking out power without warning. EcoControl in the 3S delivers 30 percent greater energy savings than a typical battery backup (model 3S750 only).

There are up to 10 outlet receptacles available depending on your model choice— (5) battery backup, (5) surge protection only. Integrated graceful shutdown ensures your investment is protected by powering down critical systems in the event of power failure.

3S models deliver 7 to 32 minutes of backup power on average. Time enough to safely save data, power down non-critical systems, and maximize ROI for your hardware. When power loss occurs, the UPS can be set up so that it will notify you via text or email so you´re aware of the status of your PC, POS system, server or stand-alone kiosk. Attractive design and glossy finish make the 3S a perfect fit for the modern office environment.

Product Specifications
Power Rating 350-750 VA
Input (1) NEMA 5-15R
Output (4) NEMA 5-15R, (4) NEMA 5-15R surge only (3S350)
(4) NEMA 5-15R, (4) NEMA 5-15R surge only (3S550)
(5) NEMA 5-15R, (5) NEMA 5-15R surge only (3S750)
Voltage 120 Vac
Frequency 50/60 Hz
Battery Type Sealed, lead-acid; maintenance free
Dimensions 3.4" x 5.5" x 13.2"
Operating Temperature 0°C (32°F) to 40°C (104°F)
Weight 6.6 lbs (3S350)
7.3 lbs (3S550)
9.7 lbs (3S750)
Storage Temperature 5°F (-25°C) to 122°F (50°C)
Warranty 3 Years
Extended Warranty 3SW5Y-0001-0750U Extends your standard warranty coverage to 5 years
