Eaton 3105 UPS

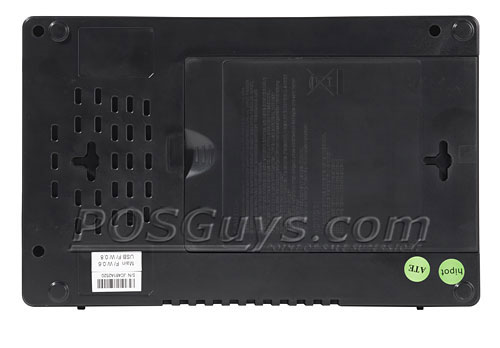

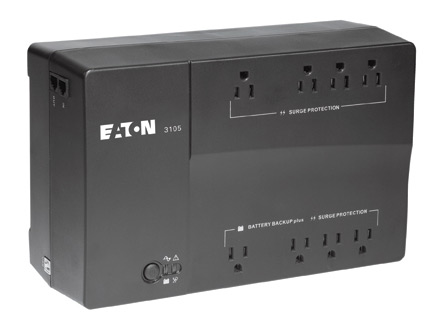

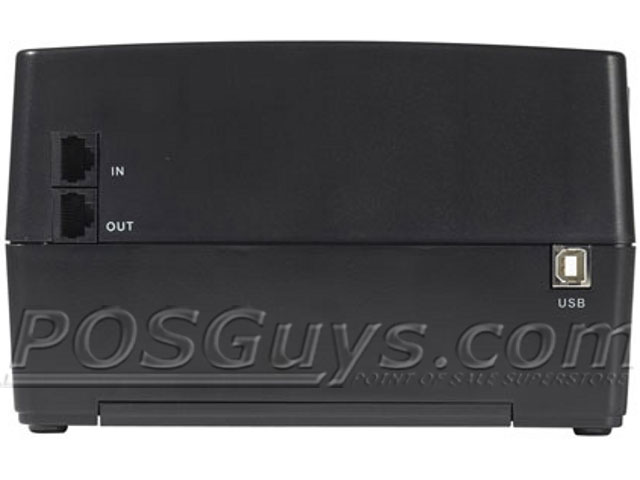

The pictures shown are general images for product 3105 UPS and may not be applicable to all part numbers
3105 UPS Cables and Power Backup
The Eaton 3105 UPS has reached end of life. It has been replaced by the Eaton 3S UPS.
The Eaton 3105 UPS provides affordable, consistent power protection. It has eight total outlets, four with battery backup plus surge protection to prevent damage to essential systems when any power fluctuations/outages occur, and four additional outlets are provided for non-essential devices that require no shut-down time (surge protection only). In an emergency, the battery backup outlets will allow you to save work and power down your system without causing damage to your hardware investment or losing your critical data.
Eaton´s Intelligent Power Protector eliminates maintenance costs by gauging remaining battery life, saving currently open software and properly powering down your system(s) when your home office or small business experiences any type of power failure. With a minimal footprint, the 3105 can be stashed beneath a counter, behind a desk, or mounted to a wall. Eaton´s 3105 UPS is ideal for PCs, POS and VoIP equipment in home offices, small business, retail and healthcare establishments.
| Product Specifications | |
|---|---|
| Power Rating | 700 VA |
| Input | (1) NEMA 5-15R |
| Output | (4) NEMA 5-15R, (4) NEMA 5-15R surge only |
| Voltage | 120vac, 230vac |
| Frequency | 50/60 Hz |
| Battery Type | Sealed, maintenance free lead-acid battery |
| Dimensions | 4.4" x 7" x 11" |
| Surge Energy Rating | 320 Joules |
| Operating Temperature | 0ºC - 40 ºC |
| Storage Temperature | -15°C ~ 50°C |
| Weight | 14.3 lbs |
| Warranty | 3 Years |
| Extended Warranty | 3SW5Y-0001-0750U Extends your standard warranty coverage to 5 years |
