Elo TouchSystems Elo Pay M100
The pictures shown are general images for product Elo Pay M100 and may not be applicable to all part numbers
Elo Pay M100 Tablets

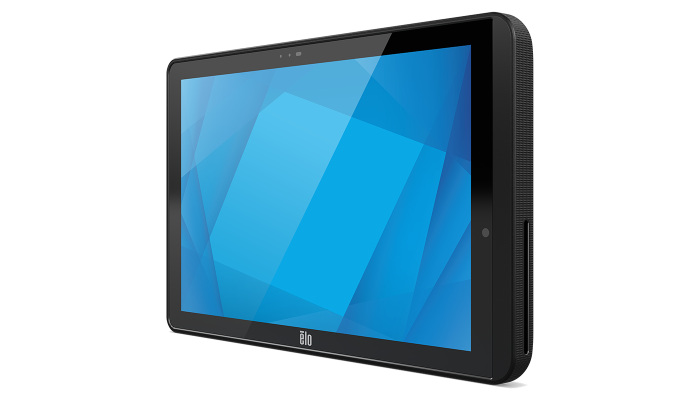

The Elo Pay M100 offers the ultimate rugged, enterprise-grade mobile point of sale tablet in a slim ergonomic form factor. Boasting a 10.1-inch FHD scratch resistant touch display, integrated payment with PCI/PTS 6.2 pin-on-glass, flexible Android 12 OS, and Qualcomm SD660 processor, the M100 Pay brings powerful performance with the security, unified architecture and long life cycle businesses need.
With rugged Corning Gorilla Glass technology to provide protection against scratches and an IP54 rating to provide resistance from unintentional spills, the Elo Pay M100 is purpose-built to endure commercial use. Accept payments across the store, table side, in the drive thru, in-flight or from wherever you do business.
Brilliant 10-inch displayfor every application.
Whether you are accepting payment, taking orders and inventory or supporting curbside order and pickup, the Elo Pay M100 portable pos computer delivers an enterprise-grade, Android mobile point of sale system ready to run your business.
Pin on Glass - Enter your pin directly on the screen.
NFC - Tap with contactless payments.
Integrated cameras for recognizing, scanning & capturing.
The Elo Pay M100 offers an integrated 8MP auto‑focus rear camera and a 5MP fixed-focus front camera.
From mobile to fixed POS.
Go from mobile to fixed with the rotating POS Dock that swivels from merchant- to customer‑facing.
Battery life to cover your shift.
With enough battery life to cover your shift*, you don’t have to worry about having backups to support constant rotation. And with the quick charge feature, your handheld pos terminal can be fully powered in just a few hours.
Rugged mobile computer.
The mobile pos hardware is purpose-built to endure commercial use with features including:
- Corning Gorilla Glass Victus
- IP54
- Drop Resistant 1 meter, 1.6 meter with Rugged Case
Unified hardware. Unified payment.
Elo Pay Terminals leverage one payment kernel to simplify the payment process, increase security, and improve the user experience.
Android device management made easy.
EloView allows you to deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world.
- Remotely deploy content and manage your devices securely.
- Provision your devices in seconds with a seamless out-of-the-box experience.
- Leverage Elo Home to create a customized interface on your Elo Pay M100 device.
Get enterprise support with Elo EssentialEdge.
With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.
OS 360 – Take advantage of monthly security updates to keep your devices secure.
Seamless Provisioning – Leverage EloView or Google Zero Touch to easily set up your device.
Elo OEMConfig – Get Elo’s proprietary APIs on your preferred Android MDM platform, saving months of effort as new releases become available.
Get peace of mind with EloCare
From advance unit replacement to OS 360, EloCare delivers service and support from the people who know your Elo products best.
- Advance Unit Replacement
- Accidental Damage Protection
- Extended Warranty
- OS 360
| Product Specifications | |
|---|---|
| Display | 10.1" Optically Bonded Full HD |
| Touchscreen | Projective capacitive with Corning Gorilla Glass, Water rejection, Anti-Fingerprint Coating |
| Native (optimal) Resolution | 1920 x 1200 |
| Contrast Ratio | 900:1 |
| Brightness | 500 nits |
| Operating System | Android 12 with GMS (AOSP Capable). Planned upgrade to Android 14 available with OS 360 subscription |
| Processor | Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor |
| Memory | 4GB |
| Storage | 64GB |
| Expansion Card Slot | MicroSD card supports up to 1TB SDXC |
| SIM | Available on cellular SKU’s with user accessible nano SIM and eSIM (Cannot be used simultaneously) |
| I/O Ports | |
| Wireless | IEEE 802.11 a/b/g/n/ac, 2x2 MU-MIMO; Bluetooth 5.0 |
| Cellular | |
| GPS | GPS, GLONASS, Galileo and BeiDou-concurrent L1/G1/E1/B1 (GPS, GLO, GAL, BeiDou) ; AGPS support (for cellular models only) |
| LED | 1x combination Green/Amber LED for charging status, 1x combination Blue/Red LED for scan, error, or user programmable |
| Keyboard | On screen keyboard |
| Audio | Dual microphone with noise cancellation, Dual speakers, USB-C PTT headset and USB-C headset support |
| Buttons | Dual scan buttons (programmable buttons), Power button, Volume up/down buttons |
| Payment Card Readers | EMV Contactless ISO 14443-A/B, MiFare, ISO-18092; EMV Chip Card Reader (chip and pin-on-glass) |
| Barcode Scanner | SE4100 scan engine 1D/2D imager (on M100 Scanner models only) |
| Camera | Rear Camera: 8MP Auto-Focus with Flash LED and Flashlight (torch); Front Camera: 5MP Fixed-Focus with Face Authentication |
| Sensors | Light sensor (automatically adjust backlight brightness); Accelerometer |
| Battery | Rechargeable Li-Polymer, 3.8V/8000mAh; User Replaceable battery; Qualcomm Quick Charge 3 |
| Dimensions | Unpackaged: 10.06" x 6.38" x 0.54" / 255.48 mm x 161.96 mm x 13.67 mm; Packaged: 12.68" x 8.54" x 2.91" / 322 mm x 217 mm x 74 mm |
| Weight | M100 w/ Scanner : 1.74 lbs / 789 g, M100 w/o Scanner: 1.69 lbs / 767 g, M100C w/ Scanner: 1.75 lbs / 794 g, M100C w/o Scanner: 1.70 lbs / 772 g |
| Shipping Weight | M100 w/ Scanner : 3.25 lbs / 1473 g, M100 w/o Scanner: 3.20 lbs / 1451 g, M100C w/ Scanner: 3.26 lbs / 1478 g, M100C w/o Scanner: 3.21 lbs / 1456 g |
| Drop Specification | Multiple 1m drops per MIL 810-G; 1.6m drops with the ruggedized case per MIL 810-G |
| Sealing | IP54 per IEC standard 60529 |
| Temperature | Operating: -20°C to 50°C / -4°F to 122°F; Storage: -20°C to 60°C / -4°F to 140°F |
| Humidity | 5% to 95% non-condensing |
| Warranty | 1-year |
| What’s in the box | Elo Pay M100, USB Type C Charger with Qualcomm Quick Charge 3 (US, EU and UK plugs), USB C Cable, Quick Install Guide |
