Pioneer Dash

Dash Product Image

The pictures shown are general images for product Dash and may not be applicable to all part numbers

Dash Tablets


The Pioneer Dash has reached end of life. It has been replaced by the Pioneer Dash T3.

Ruggedly built for warehouses and feature rich enough to be used by law enforcement, Pioneer's 7" Dash tablet is an ideal fit for businesses needing a durable portable data capture device that runs Windows 8.1.

Designed to be used for many diverse applications, the Dash can include an integrated MSR for mobile credit card capture, bringing the payment process where ever you need to go. For an additional cost a 1D/2D imager is available to assist with inventory tracking. Having 2 USB ports, 1 serial port and a headphone jack, along with a seal rating IP54, there are a variety of enterprises that would benefit from having a Dash tablet.

    Features
  • Windows 8.1
  • 1.8 GHz Intel Atom Dual Core Processor
  • 2 GB RAM, 64 GB eMMC
  • 802.11b/g/n, Bluetooth 4.0
  • IP54 Seal with 4-Foot Drop Resistance
  • Optional Integrated MSR, Smartcard Reader Standard
  • Optional NFC Wireless

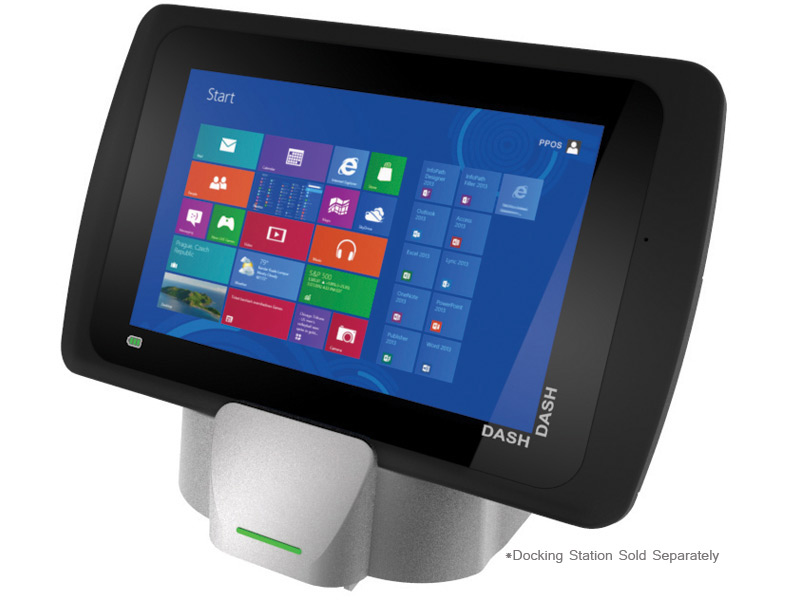

  • Optional Docking Station

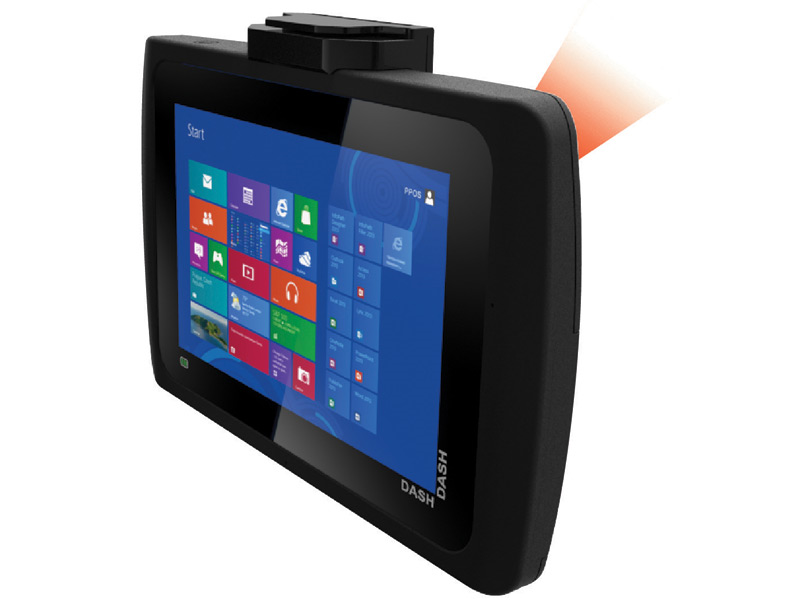

  • Optional 1D/2D Imager
  • 2 USB Ports, 1 RS232
Product Specifications
Weight 1.5 lbs (0.7 kg)
Dimensions 8.82 x 5.59 x 1.02 inches (224x142x25mm)
Operating System Windows 8.1
Processor Intel Atom Dual Core 1.8GHz
Memory 2GB
64GB eMMC
Expansion Option: additional 32GB microSDHC
Keyboard Virtual
Screen 7" with PCT Multitouch
Display Resolution 1280 x 800, 16:10 ratio
Battery 3700mAh, 7.4V
Charging Ports DC-In microUSB
DC-In Barrel
Docking Port
Ports 2USB
1 RS232
1 Headphone (3.5mm)
Wireless WiFi 802.11 b/g/n
Bluetooth Bluetooth 2.1
Operating Temperature Operating: 14° to 122°F (-10° to 50°C)
Operating Humidity 5 - 90% non-condensing
Warranty Unknown

Pioneer Dash Reviews

POSGuys Rating: Not Rated

Customer Reviews

Downloads
Data Sheet

Accessories

Charging Dock for DASH7E1, LAN, USB, Use Power Supply and Cord from Dash
Handstrap Grips, Stylus for the DASH E71

Previously Available Models
