Zebra L10
L10 Tablets
A Versatile Tablet Platform Rugged to the Core
The Zebra L10 rugged platform offers a variety of tablet configurations and a shared accessory ecosystem that sets a standard in office, vehicle and field-based computing.

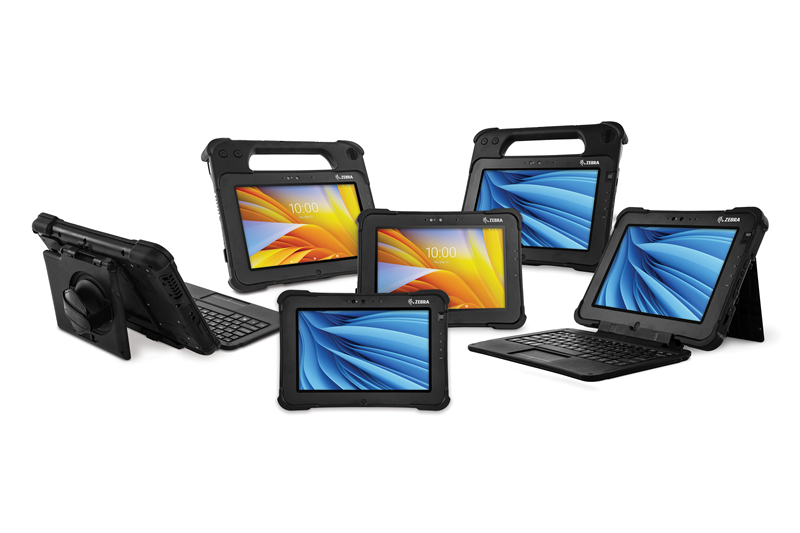

Whether your mobile workers prefer a traditional tablet form factor (XSlate), a tablet with a rigid-handle and built-in barcode reader (XPad) or a 2-in-1 laptop alternative for heavier data entry (XSlate plus keyboard and KickStrap accessory), the flexibility of the Zebra L10 tablets ensures that your workers have the right computing tool for their job. Choose the right operating system for your business, whether that be Windows or Android. Only Zebra offers this many performance, security, connectivity and accessory options in one rugged mobile computing platform.
Features - L10 Tablets- XSlate L10 Android
•Weight: 2.7 lbs./1.2 kg
•6 ft./1.83 m drop to plywood over concrete per MIL-STD-910G
•802.11ac Wi-Fi and 4G LTE Cellular Connectivity - XSlate L10 Windows
•Weight: 2.8 lbs./1.3 kg
•6 ft./1.83 m drop to plywood over concrete per MIL-STD-910G
•802.11ac Wi-Fi and 4G LTE Cellular Connectivity - XPad L10 Android
•Rigid Handle
•SE4710 1D/2D Integrated Scan Engine
•Weight: 3.0 lbs/1.4 kg
•6 ft./1.83 m drop to plywood over concrete per MIL-STD-810G
•802.11ac Wi-Fi and 4G LTE Cellular Connectivity - XPad L10 Windows
•Rigid Handle
•SE4710 1D/2D Integrated Scan Engine
•Weight: 3.1 lbs/1.4 kg
•6 ft./1.83 m drop to plywood over concrete per MIL-STD-810G
•802.11ac Wi-Fi and 4G LTE Cellular Connectivity
Product Specifications | |
---|---|
Dimensions (L x W x D) | XSlate
XPad XSlate with keyboard |
Weight | XSlate: 2.8 lbs/1.3 kg
XPad: 3.1 lbs/1.4 kg XSlate with keyboard: 4.63 lbs/2.1 kg |
Display | |
Graphics | |
Battery Life and Power | Battery charge time: |
Ports/Connectivity | L10ax Windows Docking connector; (2) USB 3.0 ports; USB Type-C port (USB 2.0, USB 3.0, Display Port out); 3.5 mm audio output (stereo out, mono in); RJ-45 Ethernet port; two SIM: (1) Nano SIM (4FF) and (1) eSIM; Micro-SDXC L10 Windows Docking connector (2) USB 3.0 ports USB Type-C port (USB 2.0, USB 3.0, Display Port out) 3.5 mm audio output (stereo out, mono in) RJ-45 ethernet port Dual Nano SIM (4FF) Micro-SDXC L10 Android Docking connector (2) USB 2.0 USB Type-C port (USB 2.0, USB 3.0, Display Port) 3.5mm audio output (stereo out, mono in) RJ-45 ethernet port Dual Nano SIM (4FF) Optional DB9 Serial (USB conv.) or HDMI-In Optional RFID UHF reader |
Expansion Slot | Micro-SDXC |
Integrated Options | NFC; 1D/2D barcode reader (XPAD only)
Optional pass-through antenna includes five ports for MIMO WWAN, MIMO WLAN and GPS
Optional true RS232 serial or CAC/Smart Card reader |
Rugged Keyboard | Optional accessory: backlit; IP65; 3.2 ft./1 m drop specification; kick strap/stand |
Security | Integrated fingerprint reader (optional) Trusted Platform Module (TPM) 2.0 Optional CAC/Smart Card reader |
Expansion Slot | Micro-SDXC |
Rugged Keyboard | Optional accessory: backlit; IP65; 3.2 ft./1 m drop specification; kick strap/stand |
Security | Integrated fingerprint reader (optional) Trusted Platform Module (TPM) 2.0 Optional CAC/Smart Card reader |
Operating System | Android: Upgradeable to Android 14 Windows: Win11 |
Memory (RAM) | Windows:
Android: |
Storage Options | |
Processor | Windows:
Android: |
Wi-Fi (WLAN) | L10ax
Wi-Fi 6/6E¹, 802.11ax R2 including the new 6 GHz band, 2x2 MIMO; 802.11a/b/g/n/ac R2/ax R2, WPA, WPA2, WPA3, WPS, PMF, WMM, WMM-PS, WFD, Wi-Fi Agile Multiband, Wi-Fi Optimized Connectivity, Wi-Fi Location, Wi-Fi TimeSync L10 Intel® Dual Band Wireless-AC 8265 Wi-Fi plus |
Cellular (WWAN) | L10ax
Available 5G (support for 3GPP Rel 15 including Cat 22 LTE, 3G, and sub 6 GHz NR) data only or Global LTE Category 12 data only L10 Optional internal wireless (one expansion slot with choice of: • Sierra Wireless EM7565, 4G LTE with GNSS (GPS + GLONASS + Galileo + Beidou) • Sierra Wireless EM7511. It is LTE-Advanced with GNSS receiver (GPS + GLONASS, BeiDou, and Galileo) • Discrete GNSS, Navisys Technology (u-blox) GPS + GLONASS with SBAS (WAAS, EGNOS and MSAS) Optional Pass-Through antenna includes 5 ports for MIMO WWAN, MIMO WLAN and GPS AT&T FirstNet Ready certification Verizon PNTM certification CBRS Capable (Band 48) - EM7511 Configurations |
Bluetooth (WPAN) | L10ax
GPS, GLONASS, BeiDou/Compass, Galileo. Dual band (L1 + L5) with aGPS L10 Intel® Dual Band Wireless-AC 8265 Wi-Fi plus |
