SpacePole POS Pole Mount

POS Pole Mount Product Image

The pictures shown are general images for product POS Pole Mount and may not be applicable to all part numbers

Flexible Mounting Options for Any Solution


The classic SpacePole Screen Mount is probably the most used foundation in mounting POS systems. It provides versatile mount ingo options for a screen or customer display. Optimum screen height can be set on installation and the Screen Mount provides all the screen rotation and tilt necessary in terms of providing an ergonomic workstation that aids operator productivity.

The mount comes in a number of configurations. These include a screen top mount, a back-to-back mount, a swinging arm, adjustable arm, and an elbow arm. All mounts are 75/100 VESA.

Mounting Options

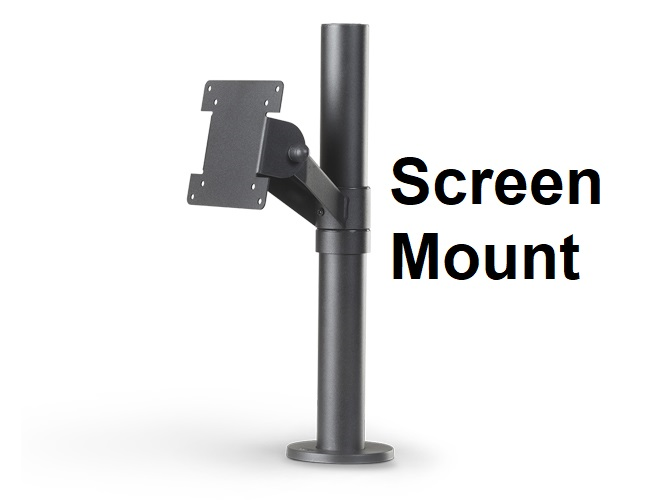

Pole Mount: The classic SpacePole Screen Mount is probably the most used foundation in mounting POS systems. It provides a mount for the screen and a customer display (with an optional adapter).

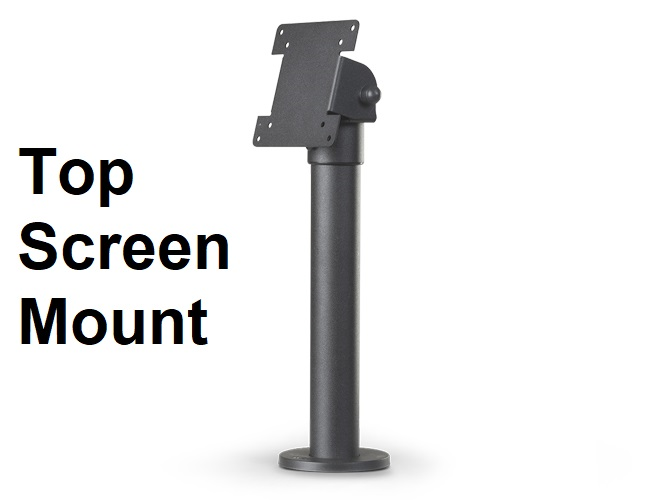

Top Screen Mount: The top mount is used when the solution requires space for the attachment of other peripherals such as a swing arm for a printer or payment terminal to the SpacePole – in addition to the screen.

Back-to-Back Screen Mount: Back to back enables two screens to be fitted to one SpacePole. With one screen facing the customer this enables another engagement point at the point of sale. Promotions, loyalty/rewards, and customer information all lend themselves to this configuration.

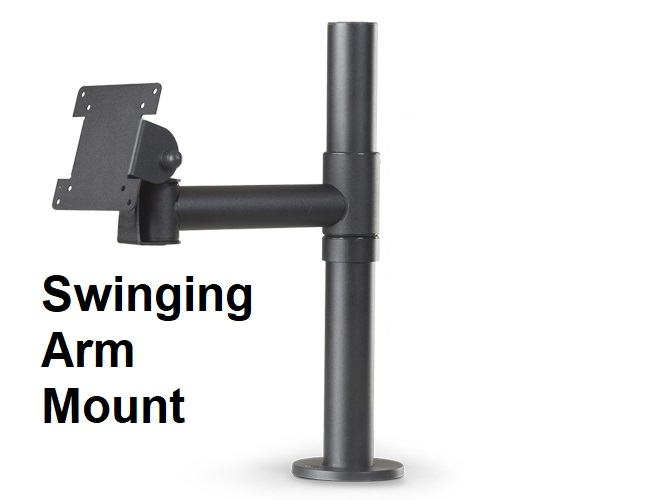

Swing Arm Mount: Swing Arm provides an ergonomic solution where peripherals or the screen itself is needed to swing between the operator and customer. This allows the customer to view the screen for confirmation of an order, or to rotate the payment terminal from the operator to the customer or vice-versa.

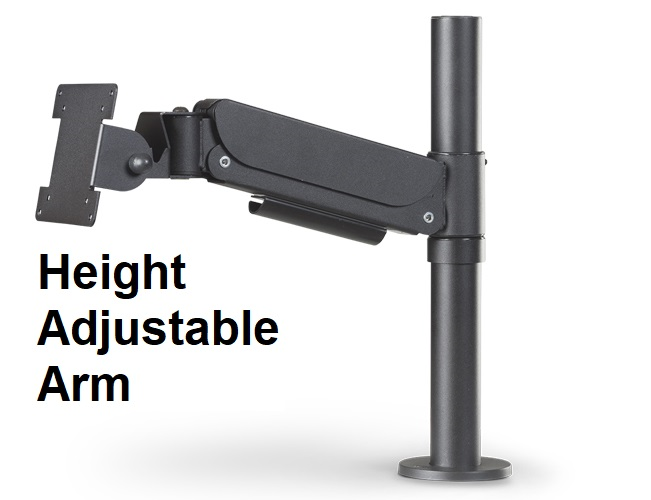

Height Adjustable Arm: The Height Adjustable Arm is an ergonomically designed mounting solution that reduces the possibility of Repetitive Strain Injury (RSI), whilst assisting productivity at the workstation. Where space allows, the height-adjustable arm enables the screen to be raised or lowered to the appropriate eyeline of the operator. It may also be used to mount a keyboard or other peripherals.

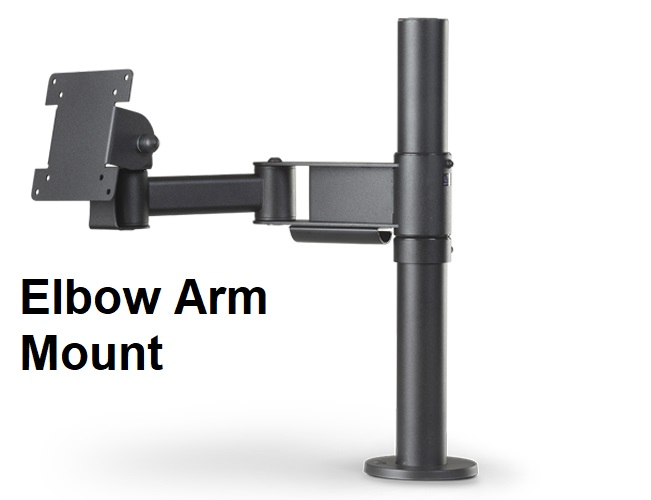

Elbow Arm Mount: When extra reach is required, the elbow arm allows even greater accessibility for the customer or second operator. This allows the customer to view the screen for confirmation of an order – or to rotate the payment terminal from the operator to the customer or vice-versa.

Product Specifications
VESA Mount Capable 75/100
Height 11.8" (Top Mount) - 15.7" (All Others)
Pole Diameter 44.5mm

SpacePole POS Pole Mount Reviews

POSGuys Rating: Not Rated

Customer Reviews

Recommended Models

Top Screen Mount - 75/100 VESA Display Mount (Black) on 11.8" Pole. Includes Cable Clip, Flange Cover, and Mounting Hardware.
Mount Type:Top Screen

Additional Models

Height-Adjustable Arm Mount - VESA 75/100 Display Mount (Black) with Super Light Tension (1 - 2.5kg). Includes Cable Clip, Flange Cover, and Mounting Hardware.
Mount Type:Height-Adjustable Arm
Tension:Super Light
Height-Adjustable Arm Mount – VESA 75/100 Pole Mount (Black) with Light Tension (2.5 - 5kg). Includes Cable Clip, Flange Cover, and Mounting Hardware.
Mount Type:Height-Adjustable Arm
Tension:Light
Height-Adjustable Arm Mount - VESA 75/100 Pole Mount, (Black) With High Tension (7.5 - 10Kg). Includes Cable Clip, Flange Cover, and Mounting Hardware.
Mount Type:Height-Adjustable Arm
Tension:High
Pole Mount - VESA 75/100 Screen Mount (Black) With High Tension (7.5 - 10Kg) on 15.75" Pole. Includes Cable Clip, Flange Cover, and Mounting Hardware.
Mount Type:Pole
Tension:High
Top Screen Mount - VESA 75/100 Pole Mount, (Black) With High Tension (7.5 - 10Kg) on 11.8" Pole. Includes Cable Clip, Flange Cover, and Mounting Hardware.
Mount Type:Top Screen
Tension:High
SPACEPOLE, ESSENTIALS FOR HEAVIER DISPLAYS: BACK TO BACK 75/100 VESA DISPLAY MT
Pole Mount - VESA 75/100 Display Mount (Black) on 15.75" Pole. Includes Cable Clip, Flange Cover, and Mounting Hardware.
Mount Type:Pole
Back-to-Back Screen Mount - VESA 75/100 Display Mount (Black) on 11.8" Pole. Includes Cable Clip, Flange Cover, and Mounting Hardware.
Mount Type:Back to Back
Swing Arm Mount - VESA 75/100 Display Mount (Black) on 200mm Swingarm on 15.75" Pole. Includes Cable Clip, Flange Cover, and Mounting Hardware.
Mount Type:Swing Arm
Height-Adjustable Arm - VESA 75/100 Display Mount (Black) With Medium Tension (5 - 7.5kg) on 15.75" Pole.Includes Cable Clip, Flange Cover, and Mounting Hardware.
Mount Type:Height-Adjustable Arm
Tension:Medium
Elbow Arm Mount - VESA 75/100 300mm Elbow Arm Display Mount (Black) on 15.75" Pole. Includes Cable Clip, Flange Cover, and Mounting Hardware.
Mount Type:Elbow Arm
Pole Mount - VESA 75/100 Display Mount (White) on 15.75" Pole. Includes Cable Clip, Flange Cover, and Mounting Hardware.
Mount Type:Pole

Accessories

Epson TM-T88V Printer Plate With Straight Angle For Use Without Cable Cover. Fits On Spacepole Essentials Swing Arm. Use SPV3104-02 For Use With Printer Cable Cover. (Black)
VESA 75/100 Add-On for Second Display on any SpacePole Essentials (SP2) Pole. Includes VESA Plate and Locking Connection Arm. Replaces SPV3301-02. (Black)
