TSC TDP-245 Plus

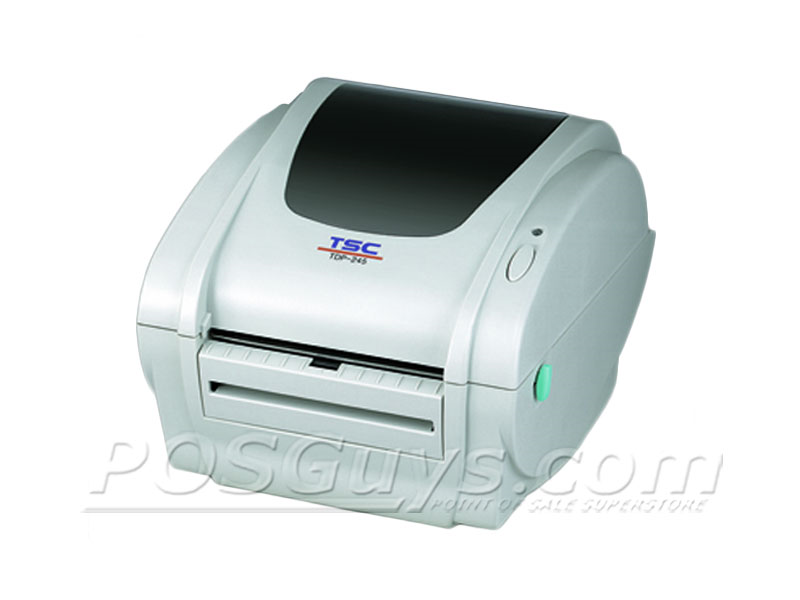

TDP-245 Plus Product Image

The pictures shown are general images for product TDP-245 Plus and may not be applicable to all part numbers

TDP-245 Plus Barcode Printers


The TSC TDP-245 Plus has reached end of life.

Features Include:

  • 5 ips, 203 dpi, Quiet Operation
  • Durable Polycarbonate plastic
  • Center biased mechanism
  • 300 meter ribbon supply
  • 2 MB FLASH program memory
  • 8 MB DRAM memory
  • Adjustable media sensor
  • 5.5" OD Media, 8" external
  • TSPL, EPL2 or DPL language
  • Parallel, Serial ports and USB
  • LabelView XLT+, cable included
  • 2 yr limited warranty


      The TDP-245 has reached end of life. Its replacement is the TDP-247.
Product Specifications
Interface USB, serial RS232, parallel
Print Method Direct thermal or direct thermal / thermal transfer combo
Print Speed 2, 3, 4, 5 ips selectable
Print Resolution 203 dpi
Maximum Print Area Width: 108 mm
Length: 39.3 in (999 mm)
Paper Dimensions Width: 0.75 to 4.4 in (19 to 118 mm) and 0.75 to 2.36 in (19 to 60 mm)
Roll Diameter: Maximum 5.5 in
Paper Thickness 0.06 to 0.25 mm
Resident Fonts Five alpha-numeric fonts, Outline font, OCR-A, OCR-B
Barcodes Supported Barcode Code 39, Code 39C, Code 93, Code128UCC, Code128 subsets A.B.C, Code 11, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digital add-on, MSI, PLESSEY, POSTNET, 2D Barcode PDF-417, Maxicode, DataMatrix, MicroPDF417
Printer Languages TSPL2, EPL2, DPL
Two Color Printing Capabilities No
Auto Cutter Optional
Peeler / Presenter Optional
LCD Display No
Wall Mountable No
Operating Temperature 35° to 104°F (5° to 40°C)
Software Included LabelView XLT, Windows driver for 95, 98, NT, 2000, XP
In The Box Printer, CD-ROM, ribbon for thermal transfer printers, labels, USB cable and quick installation guide
