Zebra ZD611

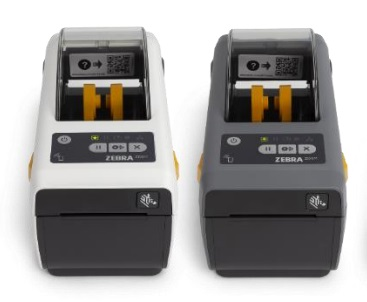

The pictures shown are general images for product ZD611 and may not be applicable to all part numbers
ZD611 Barcode Printers
This product replaces the older Zebra 2824.

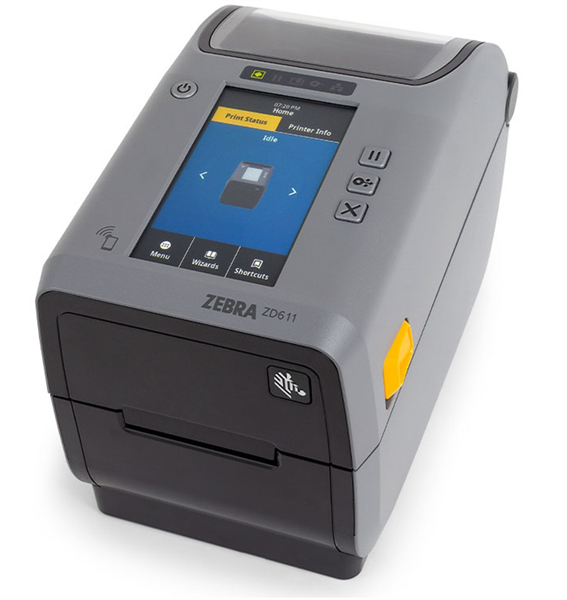

The ZD611 is Zebra's premium 2" label printer. Available in both direct thermal and thermal transfer models, this powerful printer comes ready to handle any low to medium volume print job you need to throw at it. Building on replacing Zebra's widely-popular flagship ZD410 and TLP 2824+ printers, the ZD611 features upgraded print speeds and a re-vamped user interface. Direct thermal models come standard with a 5-icon LED/3-button user interface or a 4" full-color touch display on thermal transfer models.
Featuring a new architecture for added performance and Zebra’s exclusive Print DNA software suite, the ZD611 allows easy setup, operation and maintenance. On top of this, the ZD611 features a movable sensor for greater media flexibility, media dancer for excellent print quality, a printer setup mobile app, and PDF Direct printing (call for details) all backed by 2-year warranty.
Options for any Use Case: Options such as 300 dpi resolution, wireless, and Serial connectivity as well as peeler and cutter media handling, allow customers to add features as needed. Plus, the battery accessory turns the ZD611 into a transportable printing solution. Beyond thermal transfer and direct thermal models, the ZD611 also offers tailor-made models for healthcare—in both thermal transfer and direct thermal. Linerless for less waste is available in the direct thermal model, and UHF RFID is available on the thermal transfer model. All thermal transfer models come standard with the color touch display.

We offer a selection of labels and ribbon to meet any need. Having trouble finding the label you need? Give our Label Selector Tool a try or give us a call! We have people ready to help.
Product Specifications | |
---|---|
Dimensions (L x W x H): | Thermal Transfer: 9.56 in. x 5.46 in. x 6.66 in. / Direct Thermal: 8.6 in. x 4.5 in. x 6.0 in. |
Weight | Thermal Transfer: 2.36 lbs / Direct Thermal: 3.59 lbs |
Operating Temperature | 40° to 105°F (4.4° to 41°C) |
Print Speed | 203dpi: 8 Inches Per Second. 300dpi: 6 Inches Per Second |
Max. Print Width | 203dpi: 2.2" / 300dpi: 2.13" |
Maximum Print Length | 39.0" |
Max Ribbon Width | 1.3" - 2.24" |
Ribbon Roll Diameter | 1.34" OD |
Ribbon Inner Core | 0.5" ID |
Ribbon Length | 243ft |
Media Width | 0.585-2.36 in/6.4-60mm |
Media Roll Diameter | 5.00 in./127 mm |
Media Core Size | Standard - 0.5 in./12.7 mm, 1.0 in./25.4 mm / With optional adaptor kit - 1.5 in./38.1 mm, 2.0 in./50.8 mm, 3.0 in./76.2 mm |
Media Thickness | 0.0024 in./0.06 mm min, 0.0075 in./0.1905mm max (tear off mode only) |
Media Types | Roll-fed or fan-fold • Label stock (die cut or continuous, direct thermal or thermal transfer) • Tag stock (die cut or continuous, direct thermal or thermal transfer) • Receipt paper (continuous, direct thermal) • Wristband stock (direct thermal or thermal transfer) |
Media Sensors | Black line, gap, notch |
Screen Size | 4.3 in. full-color touch LCD (480 × 272 resolution) |
Zebra ZD611 Reviews
Customer Reviews
Downloads |
---|
Windows Driver (Version 10) |

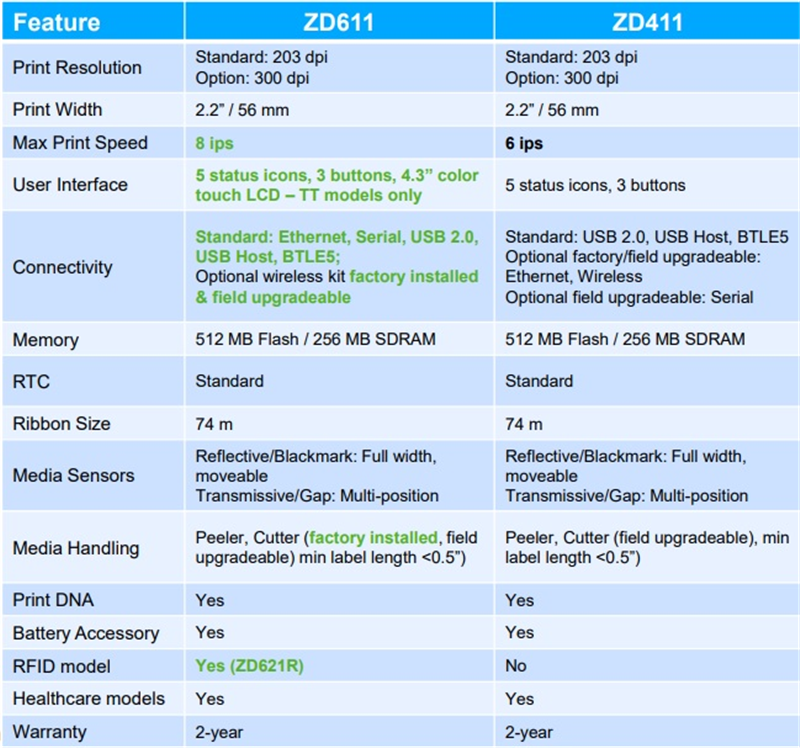

ZD411/ZD611/TLP2824 Comparison Guide |
