Zebra ZM400

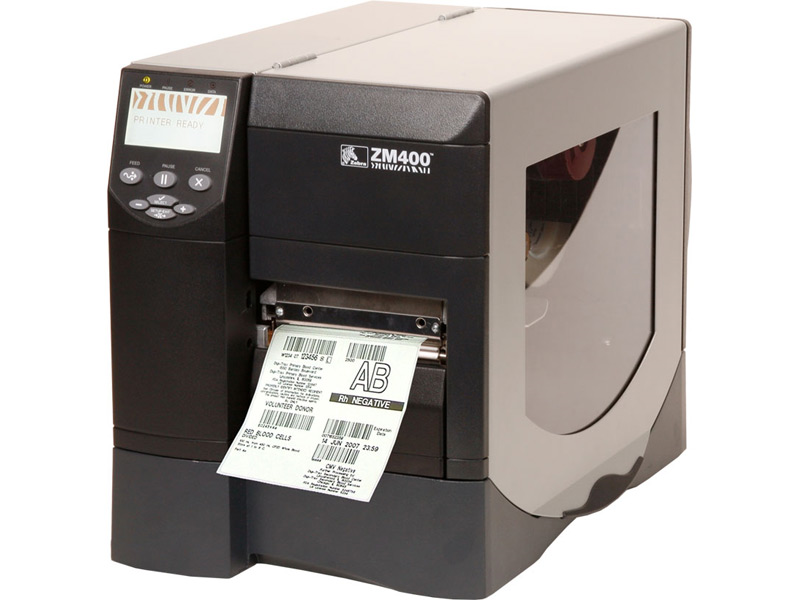

ZM400 Product Image

The pictures shown are general images for product ZM400 and may not be applicable to all part numbers

ZM400 Barcode Printers

The Zebra ZM400 has reached end of life. It has been replaced by the Zebra ZT400.

The Zebra ZM400 industrial barcode printer provides best-in-class performance for any large scale labeling operations. The printer can make 4" wide labels at up to 600 dpi, excellent for jobs requiring high quality labeling, such as health care or inventory control. With a top print speed of 10" per second, the Zebra ZM400 barcode printer will easily streamline your labeling operation. Interface cable not included.

  • RS-232 Serial, Parallel, USB, Ethernet, or Wireless Interfaces available
  • 157" max print length
  • ZPL, ZPL II, EPL, XML compatible
  • Die-cast aluminum base, frame, and printhead mechanism

    These printers do not ship with labels. Labels can be ordered here.
  • Product Specifications
    Interface RS-232 Serial, Parallel, USB, Ethernet, or Wireless
    Print Method Direct thermal or thermal transfer
    Print Speed 203 dpi: 10 in / second (254 mm / second)
    300 dpi: 8 in / second (203 mm / second)
    600 dpi: 4 in / second (102 mm)
    Print Resolution Optional - 203 dpi, 300 dpi, or 600 dpi
    Maximum Print Area Width: 4.09 in (104 mm)
    Length: 157 in (157 mm) at 203 dpi - 73 in (1,854 mm) at 300 dpi - 39 in (991 mm) at 600 dpi
    Paper Dimensions Width: 4.5 in (114 mm)
    Roll Diameter: 8 in (203 mm)
    Paper Thickness 0.0023 to 0.010 in (0.058 to 0.25 mm)
    Resident Fonts 7 bitmapped, 1 smooth scalable, native open type font support, global Printing—Unicode™ compliant for fast multi-language, on demand thermal printing right out of the box, Contains UFST® from Monotype Imaging Inc.
    Graphics Printing Supports user-defined fonts and graphics including custom logos, ZPL II drawing commands for boxes and lines
    Memory 8 MB Flash, 16 MB DRAM - Optional factory installed 64 MB Flash
    Printer Languages ZPL II, EPL™, XML-enabled printing, APL-I™, ZBI 2.0™
    Two Color Printing Capabilities No
    Auto Cutter Optional - cutter with catch tray
    Peeler / Presenter Optional - a front mount passive peel option with no liner take-up, liner take-up option available
    Internal Rewind Optional
    LCD Display 240 x 128 px display
    Weight 32.4 lb (15 kg)
    Dimensions 10.9W x 13.3H x 18.7D in (278 x 338 x 475 mm)
    Wall Mountable No
    Operating Temperature 32° to 104°F (0° to 40°C)
