Zebra ZT400

The pictures shown are general images for product ZT400 and may not be applicable to all part numbers

ZT400 Barcode Printers


This product replaces the older Zebra ZM400.

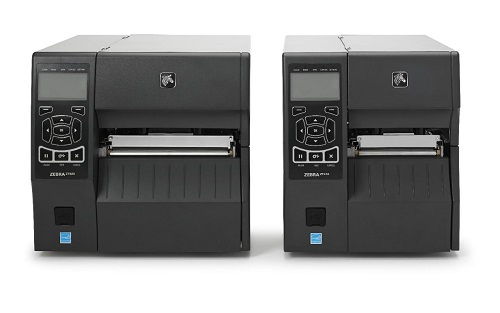

With flexible applications and being effortless to integrate, the ZT400 Series barcode printer will keep your critical operations running smoothly. The ZT400 has a USB host port to easily transferring data from a USB flash drive. Link-OS app enables users to support various printer languages in addition to ZPL® and EPL™ making the ZT400 future proof as there will be no need to get a new printer as technology evolves. The ZT400 comes in two models: 4" ZT410, and the 6" ZT420.


    Features
  • USB, Serial interfaces standard, optional Parallel, Ethernet, 802.11b/n WiFi interfaces
  • Available as direct thermal or combo direct thermal/thermal transfer printer
  • 6" per second print speed
  • ZT410: 4.09" maximum print width
  • ZT420: 6.6" maximum print width
  • 1 year warranty
Product Specifications
Interface USB 2.0
High-Speed
RS-232 Serial
10/100 Ethernet
Bluetooth 2.1
USB Host
Print Method Direct thermal or thermal transfer
Print Speed
  • ZT410: 14 ips/356 mm per second
  • ZT420: 12 ips/305 mm per second
  • Print Resolution
  • ZT410-Standard: 203 dpi; Optional: 300 dpi, 600 dpi
  • ZT420-Standard: 203 dpi; Optional: 300 dpi
  • Maximum Print Area
  • ZT410- Width: 4.09"; Length: 157" at 203 dpi - 73" at 300 dpi - 39" in at 600 dpi
  • ZT420- Width: 6.6"; Length: 102" at 203 dpi - 45" at 300 dpi
  • Paper Dimensions
  • ZT410 - Width: 0.79" to 4.5"
    Roll Diameter: 8" maximum
  • ZT420 - Width: 2" to 7"
    Roll Diameter: 8" OD, 3" ID core
  • Paper Thickness 0.0023"/0.058 mm to 0.010"/0.25 mm
    Barcodes Supported Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 or 5 digit extensions, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, Planet Code

    2D Barcodes: CODABLOCK, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, Micro PDF, RSS-14 (and composite), Aztec
    Graphics Printing Supports user-defined fonts and graphics including custom logos, Unicode, Asian fonts, IBM Code Page 850, Code Page 1250,1252-1255, ZPL II drawing commands for boxes and lines
    Memory 256 MB SDRAM
    512 MB onboard linear Flash memory
    Printer Language ZPL, ZPL II, EPL, • XML-enabled Printing, Zebra Global Printing Solution
    Two Color Printing Capabilities No
    Auto Cutter Yes
    Peeler / Presenter Yes
    LCD Display Back-lit, multiline graphic LCD display with intuitive menu and easy-to-use keypad for quick operation
    Weight
  • ZT410: 36 lb./16.33 Kg
  • ZT420: 40 lb./18.14 Kg
  • Dimensions
  • ZT410
    W-10.6”/269 mm H-12.75”/324 mm D-19.50”/495 mm
  • ZT420
    W-13.25”/336.55 mm H-12.75”/324 mm D-19.50”/495 mm
  • Operating Temperature Thermal transfer: 40º to 104ºF/5º to 40ºC
    Thermal direct: 32º to 104ºF/0º to 40ºC
    Warranty Limited 1 Year

    Zebra ZT400 Reviews

    POSGuys Rating: Not Rated

    Customer Reviews

    Frequestly Asked Questions

    Recommended Models

    ZT420, 6'', 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, Wireless 802.11 a/b/g/n Card: US & Canada, EZPL
    $2806.51 Add to Cart
    Interface:USB, Serial, Ethernet, Bluetooth, Wireless
    Resolution:203 dpi
    Print Method:Direct Thermal / Thermal Transfer
    Accessories:US/CAN, EZPL
    ZT420, 6'', 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, Cutter w/ Catch Tray, EZPL
    $3109.02 Add to Cart
    Interface:USB, Serial, Ethernet, Bluetooth
    Resolution:203 dpi
    Accessories:Cutter, EZPL
    Print Method:Direct Thermal / Thermal Transfer
    ZT420, 6'', 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, Peel w/ Full Rewind, EZPL
    $2879.14 Add to Cart
    Interface:USB, Serial, Ethernet, Bluetooth
    Resolution:203 dpi
    Print Method:Direct Thermal / Thermal Transfer
    Accessories:Peeler, Rewind, EZPL
    TT Printer ZT411; 4", 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, Peel w/ Full Rewind, EZPL
    $1830.34 Add to Cart
    TT Printer ZT411; 4", 300 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, EZPL
    $1750.97 Add to Cart

    Additional Models

    ZT420, 6'', 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, EZPL
    $2423.12 Add to Cart
    Interface:USB, Serial, Ethernet, Bluetooth
    Resolution:203 dpi
    Print Method:Direct Thermal / Thermal Transfer
    Accessories:EZPL
    ZT420, 6'', 300 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, EZPL
    $2803.51 Add to Cart
    Interface:USB, Serial, Ethernet, Bluetooth
    Resolution:300 dpi
    Print Method:Direct Thermal / Thermal Transfer
    Accessories:EZPL
    ZT420, 6'', 300 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, Cutter w/ Catch Tray, EZPL
    $3486.42 Add to Cart
    Interface:USB, Serial, Ethernet, Bluetooth
    Resolution:300 dpi
    Accessories:Cutter, EZPL
    Print Method:Direct Thermal / Thermal Transfer
    ZT420, 6'', 300 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, Peel w/ Full Rewind, EZPL
    $3258.03 Add to Cart
    Interface:USB, Serial, Ethernet, Bluetooth
    Resolution:300 dpi
    Print Method:Direct Thermal / Thermal Transfer
    Accessories:Peeler, Rewind, EZPL
    TT Printer ZT410; 4", 300 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, Wireless 802.11 a/b/g/n Card: US & Canada, EZPL
    $2115.54 Add to Cart
    TT Printer ZT421; 6", 300 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, EZPL
    $2803.51 Add to Cart
    TT Printer ZT411; 4", 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, Wireless 802.11 AC Card: US & Canada, EZPL
    $1833.51 Add to Cart
    TT Printer ZT411; 4", 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, Cutter w/ Catch Tray, EZPL
    $1992.26 Add to Cart
    TT Printer ZT411; 4", 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, Peel, EZPL
    $1571.58 Add to Cart
    TT Printer ZT411; 4", 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, Peel w/ Liner Take-Up, EZPL
    $1733.51 Add to Cart
    TT Printer ZT411; 4", 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, EZPL
    $1430.30 Add to Cart
    TT Printer ZT420; 4", 203 dpi, US Cord, Serial, USB, Bluetooth, and ZebraNet Internal Wireless 802.11ac with Bluetooth 4.0, United States and Canada Only, EZPL,Color
    $2775.06 Add to Cart
    TT Printer ZT410; 4", 203 dpi, US Cord, Serial, USB, Bluetooth, and ZebraNet Internal Wireless 802.11ac with Bluetooth 4.0, United States and Canada Only, EZPL,Color
    $1686.54 Add to Cart
    TT Printer BAA/TAA ZT410; 4", 300 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, EZPL
    $1651.86 Add to Cart
    TT Printer ZT420; 6", 300 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, Peel, EZPL
    $3013.92 Add to Cart
    TT Printer ZT410; 4", 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, Wireless 802.11 a/b/g/n Card: US & Canada, Peel w/ Liner Take-Up, EZPL
    $2135.80 Add to Cart
    ZT420, 6'', 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, RFID UHF Encoder: US & Canada, EZPL
    $3710.03 Add to Cart
    TT Printer ZT420; 6", 203 dpi, Euro and UK cord, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, Wireless 802.11 a/b/g/n Card: Rest of World (ROW), EZPL
    $2698.56 Add to Cart
    ZT410 Barcode Printer, Dark Grey, Direct Thermal / Thermal Transfer with Peeler, 203 dpi, EZPL, Bluetooth 2.1, Serial, USB & Ethernet Interfaces
    $1482.30 Add to Cart
    Interface:USB, Serial, Ethernet
    Resolution:203 dpi
    Print Method:Direct Thermal / Thermal Transfer
    Accessories:Peeler, EZPL
    ZT410 Barcode Printer, Dark Grey Direct Thermal / Thermal Transfer with Rewind, 203 dpi, EZPL, Bluetooth 2.1, RS-232 Serial, USB & Ethernet Interfaces
    $1726.74 Add to Cart
    Interface:USB, Serial, Ethernet
    Resolution:203 dpi
    Print Method:Direct Thermal / Thermal Transfer
    Accessories:Rewind, EZPL
    ZT410 Barcode Printer, Dark Grey, Direct Thermal / Thermal Transfer with Peeler, 300 dpi, EZPL, Bluetooth 2.1, Serial, USB & Ethernet Interfaces
    $2055.52 Add to Cart
    Interface:USB, Serial, Ethernet
    Resolution:300 dpi
    Print Method:Direct Thermal / Thermal Transfer
    Accessories:Peeler, EZPL
    ZT410 Barcode Printer, Dark Grey, Direct Thermal / Thermal Transfer with Cutter, 300 dpi, EZPL, Bluetooth 2.1, RS-232 Serial, USB & Ethernet Interfaces
    $2181.26 Add to Cart
    Interface:USB, Serial, Ethernet
    Resolution:300 dpi
    Accessories:Cutter, EZPL
    Print Method:Direct Thermal / Thermal Transfer
    ZT410 Barcode Printer, Dark Grey Direct Thermal / Thermal Transfer with Rewind, 300 dpi, EZPL, Bluetooth 2.1, RS-232 Serial, USB & Ethernet Interfaces
    $2028.50 Add to Cart
    Interface:USB, Serial, Ethernet
    Resolution:300 dpi
    Print Method:Direct Thermal / Thermal Transfer
    Accessories:Rewind, EZPL
    ZT410 Barcode Printer, Dark Grey, Direct Thermal / Thermal Transfer with Peeler, 300 dpi, EZPL, Bluetooth 2.1, RS-232 Serial, USB & Ethernet Interfaces
    $1899.54 Add to Cart
    Interface:USB, Serial, Ethernet
    Resolution:300 dpi
    Print Method:Direct Thermal / Thermal Transfer
    Accessories:Peeler, EZPL
    ZT410 Barcode Printer, Dark Grey, Direct Thermal / Thermal Transfer with RFID, 300 dpi, EZPL, Bluetooth 2.1, RS-232 Serial, USB & Ethernet Interfaces
    $3153.95 Add to Cart
    Interface:USB, Serial, Ethernet
    Resolution:300 dpi
    Print Method:Direct Thermal / Thermal Transfer
    Accessories:RFID
    ZT410 Barcode Printer, Dark Grey, Direct Thermal/ Thermal Transfer, EZPL, Bluetooth 2.1, Serial, USB & Ethernet Interfaces, 600 dpi for Extremely High Quality Graphics
    $2706.97 Add to Cart
    Interface:USB, Serial, Ethernet
    Resolution:600 dpi
    Print Method:Direct Thermal / Thermal Transfer
    Accessories:EZPL
    ZT410 Barcode Printer, Dark Grey, Direct Thermal / Thermal Transfer with Peeler & Rewind, 600 dpi, EZPL, Bluetooth 2.1/MFI, Serial, USB & Ethernet Interfaces
    $3153.49 Add to Cart
    Interface:USB, Serial, Ethernet
    Resolution:600 dpi
    Print Method:Direct Thermal / Thermal Transfer
    Accessories:Peeler, Rewind, EZPL

    Accessories

    1" Core Media Hanger Kit for the ZT410
    Replacement Kit - Platen Roller for All DPI for the ZT410

    Previously Available Models
