Zebra ZM600

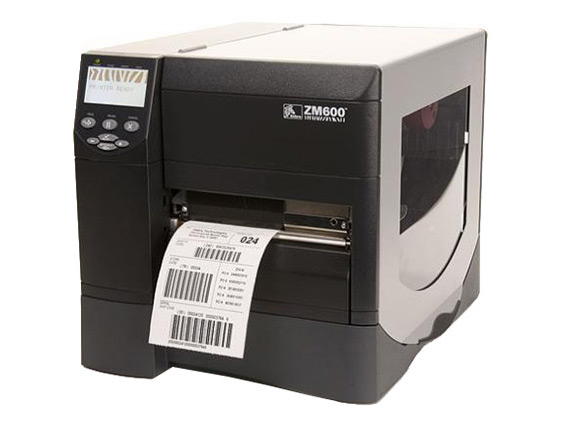

The pictures shown are general images for product ZM600 and may not be applicable to all part numbers
ZM600 Barcode Printers
The Zebra ZM600 has reached end of life. It has been replaced by the Zebra ZT400.
The Zebra ZM600 barcode printer provides 6" wide labels at blisteringly fast speed, excellent for streamlining large scale labeling jobs. At up to 10" per second, the ZM600 prints labels quickly and with ease via direct thermal or thermal transfer methods. The rugged metal frame provides increased durability, making the Zebra ZM600 an ideal choice for demanding environments. Interface cable not included.
Features RS-232 Serial, Parallel, USB, Ethernet, 802.11b/g Interfaces
Die-cast aluminum base, frame, and printhead mechanism
40° to 104° F Operating temperature
Large LCD for quick printer configuration
These printers do not ship with labels. Labels can be ordered here.
Features
These printers do not ship with labels. Labels can be ordered here.
| Product Specifications | |
|---|---|
| Interface | USB 2.0, IEEE1284 parallel, serial RS232, ZebraNet Wireless Plus, ZebraNet 10/100 Print Server |
| Print Speed | 203 dpi: 10 in / second (254 mm / second) 300 dpi: 8 in / second (203 mm / second) 600 dpi: 4 in / second (102 mm) |
| Print Resolution | Optional - 203 dpi, 300 dpi, or 600 dpi |
| Maximum Print Area | Width: 6.6 in (104 mm) Length: With 203 dpi: 102 in (2,590 mm) - with 300 dpi 45 in (1,143 mm) |
| Paper Dimensions | Width: 7 in (178 mm) Roll Diameter: 8 in (203 mm) |
| Paper Thickness | 0.0023 to 0.010 in (0.058 to 0.25 mm) |
| Resident Fonts | 7 bitmapped, 1 smooth scalable, native open type font support, global Printing—Unicode™ compliant for fast multi-language, on demand thermal printing right out of the box, Contains UFST® from Monotype Imaging Inc. |
| Barcodes Supported | Linear Bar Codes: Code 11, Code16k, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case C Codes, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code 2D Barcodes: Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, GS1 DataBar (RSS), Aztec |
| Graphics Printing | Supports user-defined fonts and graphics—including custom logos, ZPL II drawing commands for boxes and lines |
| Memory | 8 MB Flash, 16 MB DRAM |
| Printer Languages | ZPL II, EPL™, XML-enabled printing, APL-I™, ZBI 2.0™ |
| Two Color Printing Capabilities | No |
| Auto Cutter | Optional - cutter with catch tray |
| Peeler / Presenter | Optinal - a front mount passive peel option with no liner take-up, liner with take-up option available |
| Internal Rewind | Optional - internally rewinds full label roll on 3 in core |
| Print Method | Direct thermal or thermal transfer |
| LCD Display | 240 x 128 px display |
| Weight | 32.4 lb (15 kg) |
| Dimensions | 10.9W x 13.3H x 18.7D in (278 x 338 x 475 mm) |
| Operating Temperature | 32°F - 104°F (0°C - 40°C) |
