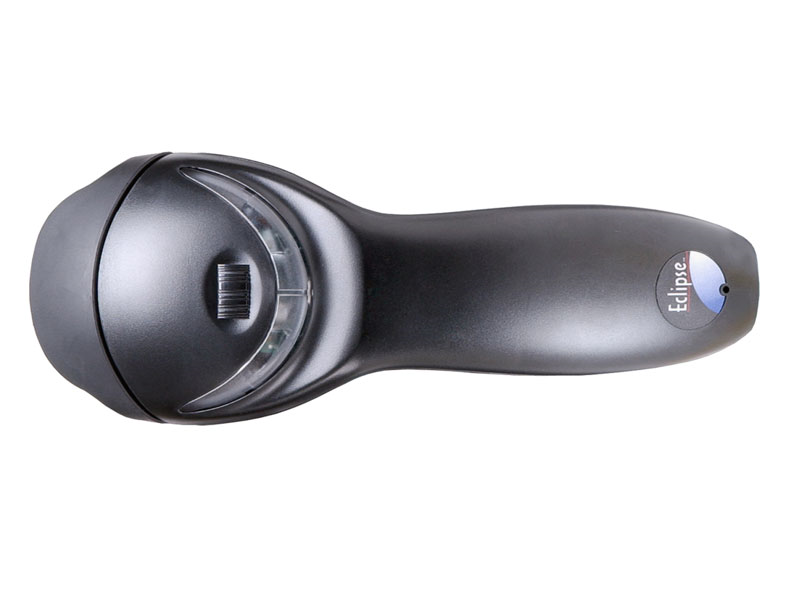

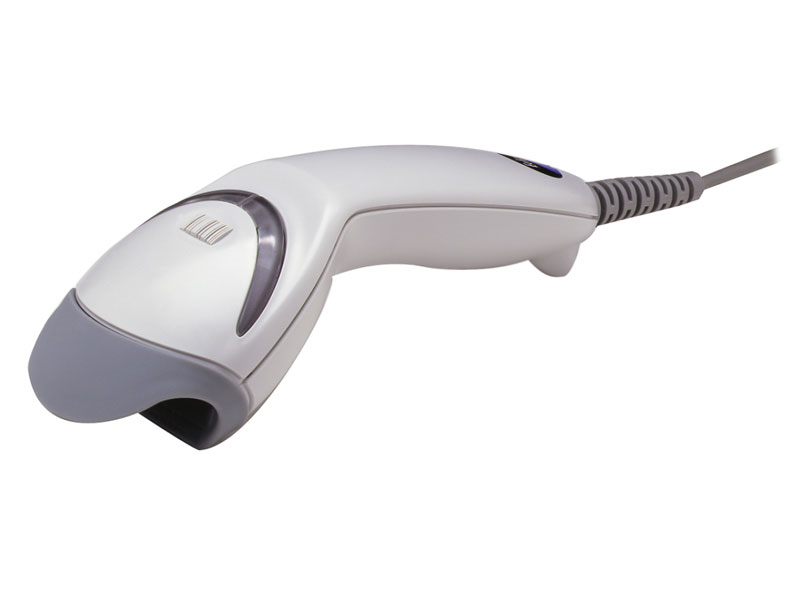

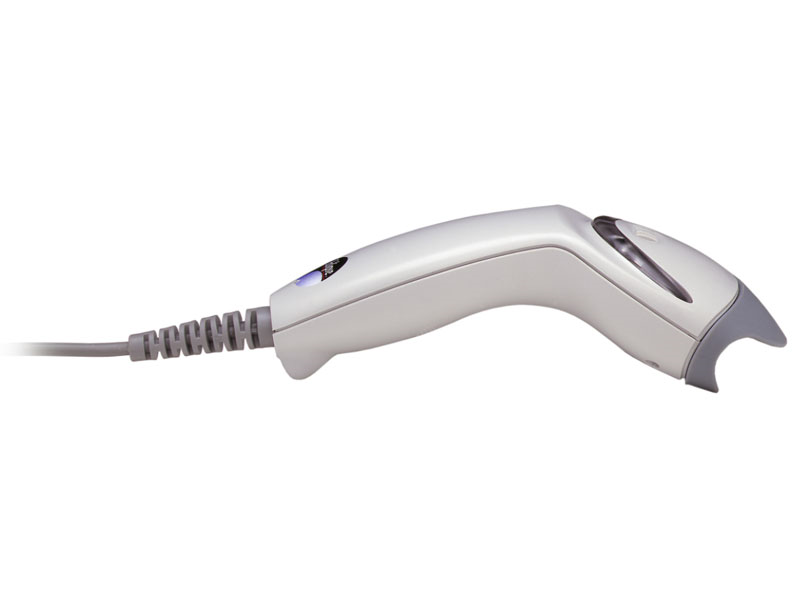

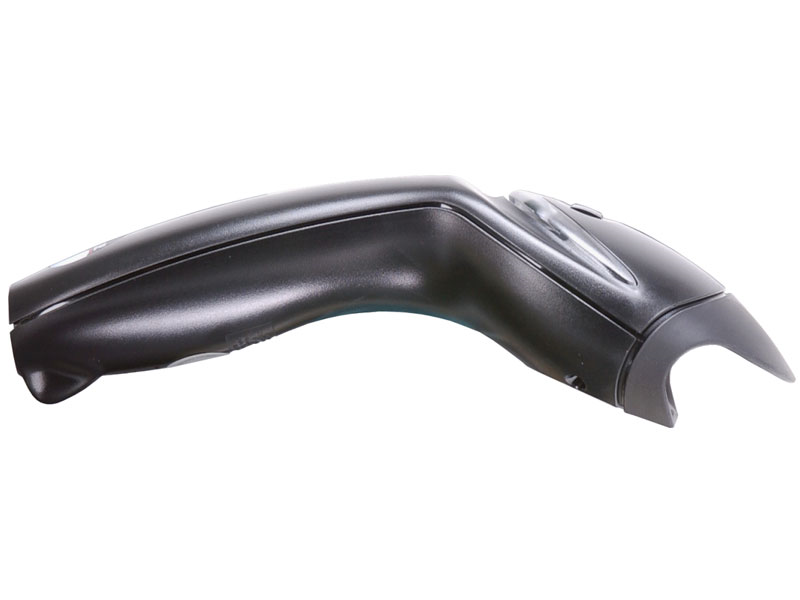

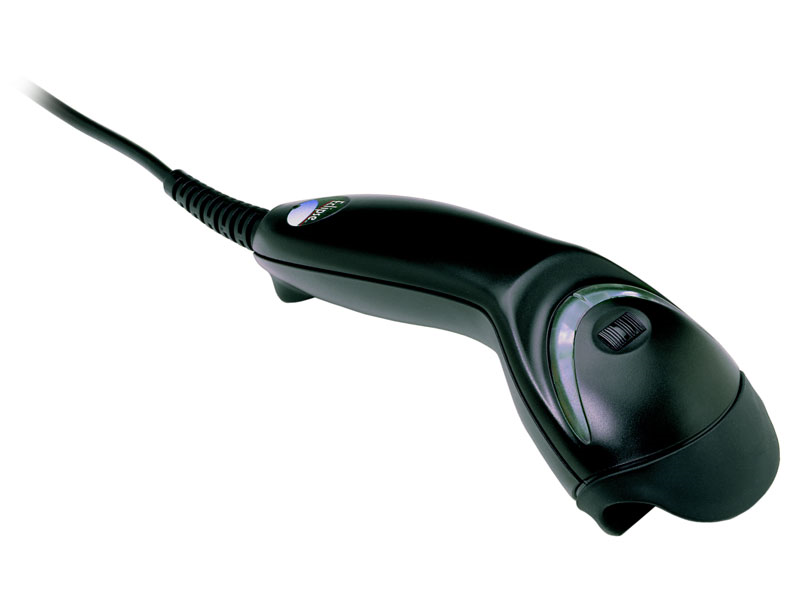

Eclipse Barcode Scanner
Metrologic's MS5145 Eclipse handheld laser barcode scanner utilizes Metrologic CodeGate technology for fast, reliable single-line menu scanning at up to 72 lines per second.
With CodeGate, simply target the desired barcode, click the MS5145 scanner's button, and capture the barcode to complete data transmission. The Metrologic Eclipse features a wider scanning field than CCD barcode scanners and autodescriminates all standard barcode symbologies.

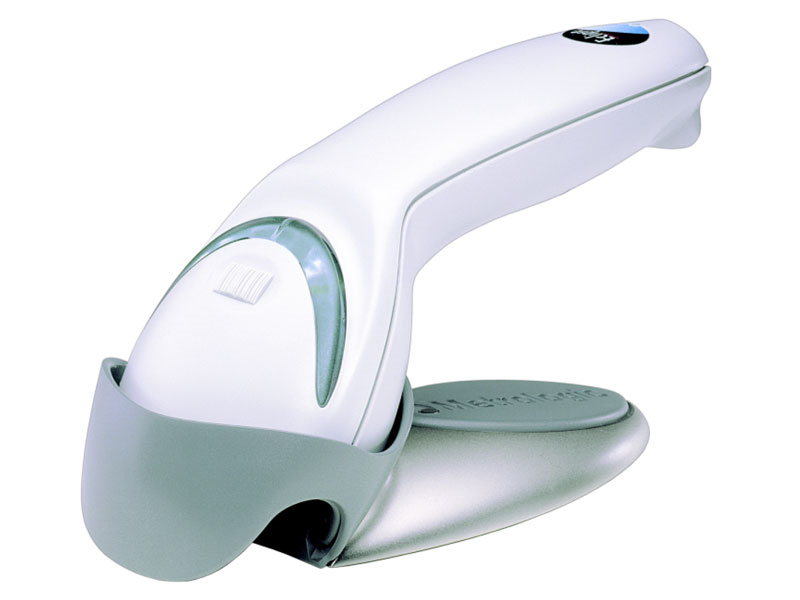

Available in USB, keyboard wedge, or serial interface models, the MS5145 Eclipse is easily integrated into existing point of sale or inventory management systems.Stand sold separately. See Accessories.
|Dimensions||169 mm x 63 mm x 51 mm (6.7½ x 2.5½ 2.0½)|
|Weight||100 g (3.5 oz)|
|Color Options|| Black
|Interfaces Available|| USB
|Scan Method||Single-Line Laser Scanner|
|Decoding Capabilities||Reads standard 1D and GS1 DataBar symbologies.|
|Scan Rate (Maximum)||72 scan lines per second|
|Reading Angle|| Pitch: 68°
|Print Contrast (Min.)||35% minimum reflectance difference|
|Typical Depth of Field|| 5.2 mil: 0 mm - 51 mm (0 - 2.0")
7.5 mil: 0 mm - 76 mm (0 - 3.0")
10.4 mil: 0 mm - 108 mm (0 - 4.0")
13 mil" 0 mm - 140 mm (0 - 5.5")
26 mil: 25 mm - 178 mm (1.0 - 7.0")
|Indicators|| LED (Green = laser on, ready to scan; Red = good read)
Adjustable Beep (7 Tones or No Beep)
|Auto Sense Mode||No|
|Operating Temperature||0°C to 40°C (32°F to 104°F)|
|Drop Specification||Designed to withstand 1.5 m (5´) drops|
|Environmental Sealing||Sealed to resist airborne particulate contaminants|
|Ambient Light (Max)||4842 Lux|
|Stand||46-46633 Yes, As Accessory|
|Warranty||3 Year Factory Warranty|
|Data Sheet (English)|
|Quick Start Guide (English)|
|Quick Start Guide (Español)|
|MS5145 OPOS Driver|
Honeywell Eclipse Reviews
Feb 2017: Downgraded to a 1 / 5 stars. The Eclipse is now a sub $100 using decade old technology. While laser used to be the most popular option for retail, linear imaging is much more durable, scans more aggressively, and works better in bright light. Because of this we recommend the Voyager 1400g as a superior alternative.
Previously (release): 3 / 5 Stars The Eclipse is Metrologic's budget entry-level barcode scanner. Unlike most scanners in its class, this unit is a laser scanner, not a CCD scanner, hence the price tag.
