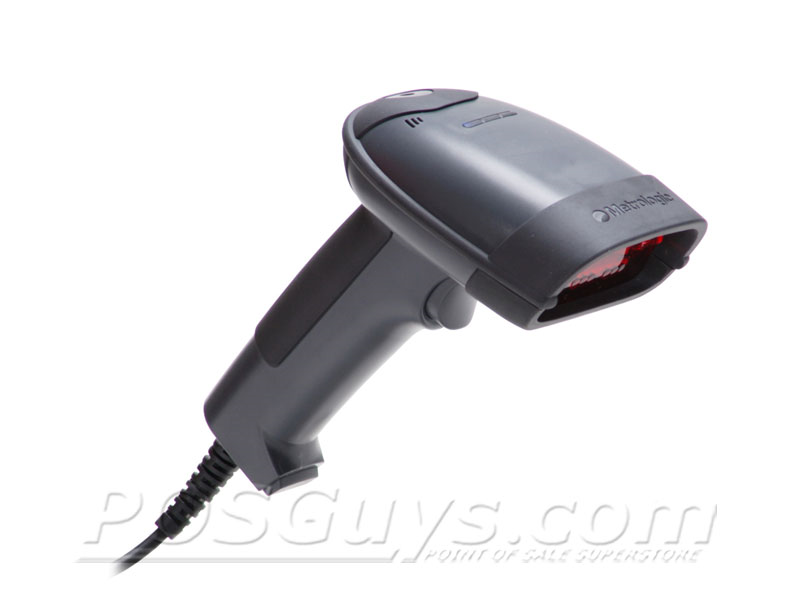

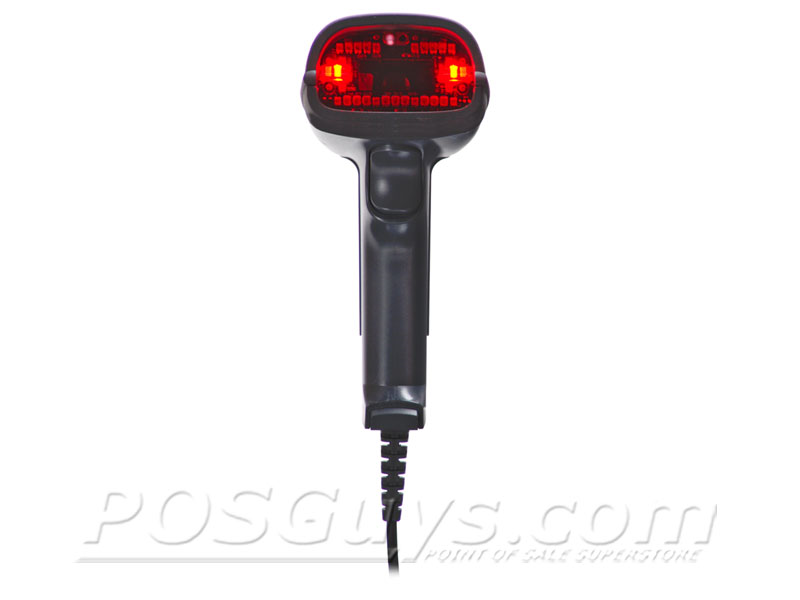

Focus Barcode Scanner
The Honeywell Focus has reached end of life.
The Honeywell Focus™ provides users with increased throughput for virtually all 1D and 2D bar code reading applications - including poorly printed or damaged bar codes - by incorporating high resolution imaging, FirstFlash™ scanning technology, and true contact reading into an affordable solution.
Honeywell makes scanning ID cards and Drivers License barcodes a snap with the Easy ID option. Easy ID is a quick and easy on-board software tool to parse drivers license information in customizable formats. Supports over 45 US states.
The Honeywell Focus has reached end of life. We recommend the Honeywell Xenon 1900 as a suitable replacement.
|Dimensions||183 mm x 79 mm x 111 mm (7.2½ x 4.4½ x 3.1½)|
|Weight||225 g (8 oz)|
|Interfaces Available|| USB
IBM 46xx (RS485)
|Scan Method||Area Image (1280 x 512 pixel array)|
|Decoding Capabilities||Reads standard 1D, PDF, 2D, Postal and OCR symbologies *Note: Decode capabilities dependent on kit configuration|
|Motion Tolerance||47 cm/s (18 in/s) for 13 mil UPC at optimal focus|
|Reading Angle|| Pitch: 75°
|Print Contrast (Min.)||20% minimum reflectance difference|
|Typical Depth of Field: 1690 Model:|| 5.2 mil (1D) 38 mm - 146 mm (1.5 - 5.8")
7.5 mil (1D) 25 mm - 229 mm (1.0 - 9.0")
13 mil (1D) 0 mm - 330 mm (0 - 13.0")
10 mil (PDF) 0 mm - 330 mm (0 - 13.0")
15 mil (PDF) 0 mm - 432 mm (0 - 17.0")
|Typical Depth of Field: 1691 Model:|| 4 mil (1D) 50 mm - 90 mm (2.0 - 3.5")
5.2 mil (1D) 55 mm - 98 mm (2.2 - 3.9")
13 mil (1D) 0 mm - 155 mm (0 - 6.1")
5 mil (2D) 50 mm - 88 mm (2.0 - 3.5")
7.5 mil (2D) 45 mm - 100 mm (1.8 - 3.9")
|Indicators|| LED (Blue=unit powered, ready to scan; White=good read; Yellow=in stand)
Adjustable Beep (7 Tones or No Beep)
|Drivers License Data Parsing||MK1690-61A38-12-A Yes, EasyID Models|
|Mobile Phone Scanning Capabilites||Yes|
|Auto Sense Mode||Yes, In Stand|
|Operating Temperature||0°C to 40°C (32°F to 104°F)|
|Drop Specification||Designed to withstand 1.5 m (5´) drops|
|Environmental Sealing||Sealed to resist airborne particulate contaminants|
|Ambient Light (Max)||100,000 Lux|

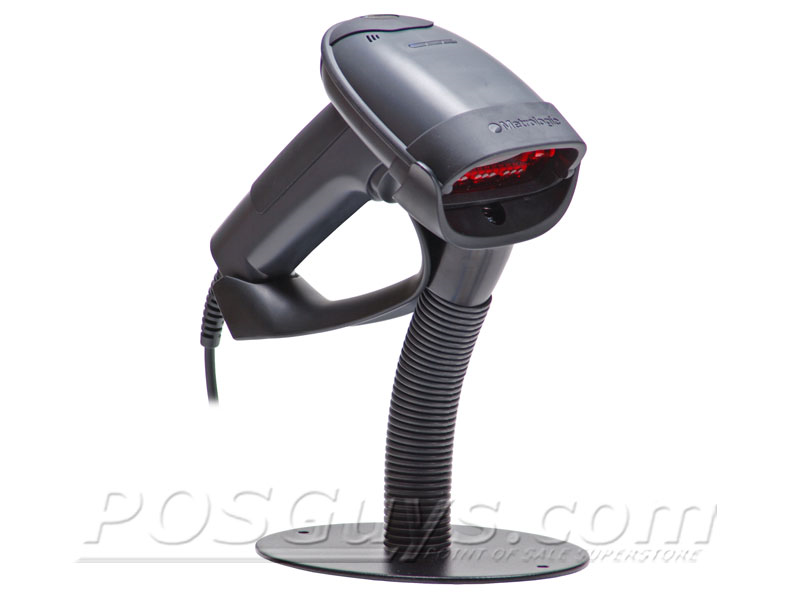

|Stand||Yes, Included in most models|
|Warranty||5 year factory warranty|
Honeywell Focus Reviews
"The Focus would be a great choice for medium and high volume retail environments and health care. The Focus has 2D capabilities for anyone interested in incorporating security, customer validation, or other uses of 2D barcodes. Even if you do not need 2D capabilities, the First Flash feature and aggressive scan engine make it a good choice for high volume settings. "
Reviewed by: Philip of Huntsville AL
Purchased: Honeywell Metrologic MS1690 Focus 1D/2D Area Imager Color: Dark Grey with Stand USB Interface (MK1690-61A38)
Liked: Not sure yet.
Did not like: Not sure yet
Reviewed by: Amata of Tripler amc HI
Purchased: Honeywell MS1690 Focus 1D/2D Area Imager Color: Dark Grey with Stand USB Interface (MK1690-61A38)
