Honeywell VoyagerGS

The pictures shown are general images for product VoyagerGS and may not be applicable to all part numbers

VoyagerGS Barcode Scanner

The Honeywell VoyagerGS has reached end of life. It has been replaced by the Honeywell Voyager 1250g.

The Metrologic MS9590 VoyagerGS retail scanner builds on the power of the original Voyager, increasing the scanning capability and using a gun-shaped housing. The new design creates a more ergonomically pleasing design, allowing for extended periods of scanning with ease. With a 100 scans per second scan speed, the VoyagerGS can read what you need easily, accurately, and incredibly quickly, eliminating the delays that can occur with slower scanners. Optional EAS integration further increases efficiency by letting the VoyagerGS scan barcodes and deactivate security measures in one quick step.

Click Here for Additional Warranty Information


  • Optimal scan range from contact to 12" at 13 mil
  • Can scan as small as 5 mil barcodes
  • Can withstand multiple 5' drops
  • Automatic In-Stand Detection eliminates need to reconfigure for auto-sense mode

  • Product Specifications
    Dimensions 6.3 x 2.6 x 3.9in (160 mm x 65 mm x 100 mm)
    Weight 5.3oz (150g)
    Color Options Black
    Interfaces Available USB
    Keyboard Wedge
    IBM 46xx (RS485)
    Scan Method Single Line Laser
    Decoding Capabilities Reads standard 1D and GS1 DataBar symbologies
    Mobility/Range Corded
    Scan Rate (Maximum) 100 scan lines/second
    Reading Angle Pitch: 68°
    Skew: 52°
    Print Contrast (Min.) 35% minimum reflectance difference
    Typical Depth of Field: 9590 Model 5.2 mil: 83 mm - 108 mm (3.3 - 4.3")
    7.5 mil: 38 mm - 178 mm (1.5 - 7.0")
    10.4 mil: 32 mm - 254 mm (1.3 - 10.0")
    13 mil: 0 mm - 305 mm (0 - 12.0")
    Typical Depth of Field: 9591 Model 4.0 mil: 25 mm - 45 mm (1.0- 1.8")
    5.2 mil: 22 mm - 55 mm (1.0 - 2.2")
    7.5 mil: 20 mm - 64 mm (0.8 - 2.5")
    10.4 mil: 0 mm - 72 mm (0 - 2.8")
    13 mil: 0 mm - 100 mm (0 - 4.0")
    Indicators Beep
    Auto Sense Mode Yes
    Operating Temperature 0°C to 40°C (32°F to 104°F)
    Drop Specification Designed to withstand 1.5 m (5´) drops
    Environmental Sealing IP31
    Ambient Light (Max) 4842 Lux
    Stand XI3200-STAND Yes, Optional
    Warranty 5 year factory warranty

    Honeywell VoyagerGS Reviews

    POSGuys Rating:

    The Metrologic VoyagerGS is a solid scanner that will provide you will excellent use for quite some time. The combination of gun-style scanning and CodeGate technology ensure accurate reads for any retail environment.

    Read the comprehensive Honeywell VoyagerGS Review by POSGuys' Staff

    Customer Reviews

    Frequestly Asked Questions

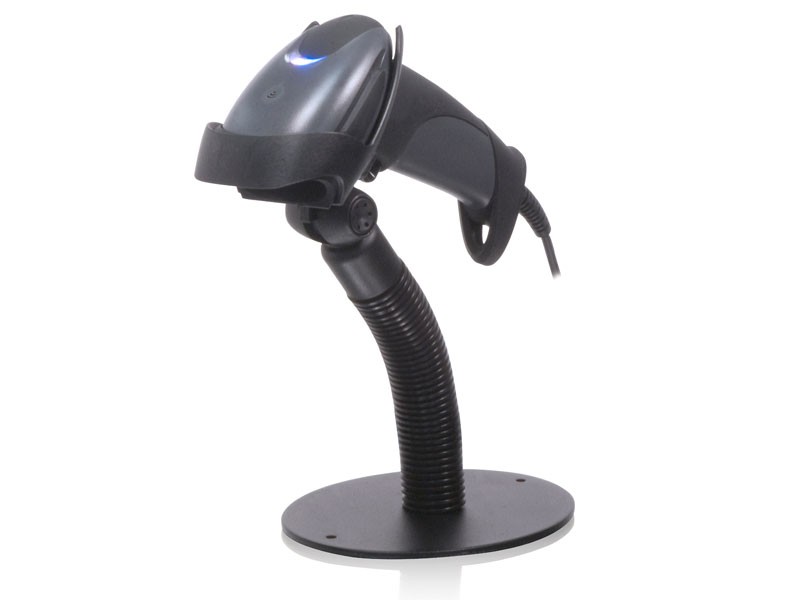

    VoyagerGS Flex Neck Auto-Sense Stand
    MS9590 VoyagerGS - 5-Year Warranty, 1-day turnaround, comprehensive coverage.
    9590 VoyagerGS - 1-year Warranty, 3-day turnaround, wear and defects only, Post Sale.

    Previously Available Models
