Home » Barcode Scanner » Honeywell Xenon 1900 Color

Honeywell Xenon 1900 Color

The pictures shown are general images for product Xenon 1900 Color and may not be applicable to all part numbers

Buy it now
Lifetime Support
15 Day Return Period
Xenon 1900 Color Features
Corded
Advanced
Color Options

Black, White

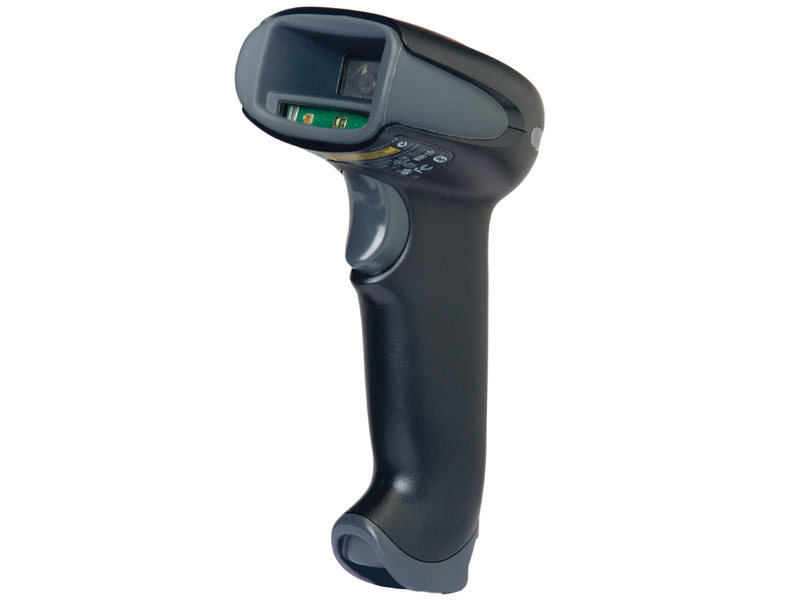

Xenon 1900 Color Barcode Scanner


The Honeywell Xenon 1900 Color has reached end of life. It has been replaced by the Honeywell Xenon XP 1950g.

The Xenon 1900 Color, Honeywell’s latest barcode scanning innovation, is an aggressive imager; capable of scanning colored barcodes and doubling as a digital camera for capturing color images. It features ColorFusion™ technology and a custom sensor specifically optimized for barcode scanning enabling the Xenon 1900 Color to scan previously unreadable barcodes, such as a red bar code on a white background.

Available in standard or high density scanning range, this imager supports a diverse variety of industries including healthcare, retail, and shipping. A feature specifically designed for the healthcare industry is the optional disinfectant ready housing which protects the scanner against harsh disinfectant chemicals. While not designed exclusively for healthcare, the ability to capture Drivers License photos and signatures with a simple scan can greatly speed up check-in times. Another feature to improve productivity and one that will please the end user is the scanner’s invaluable ability to read from LCD or mobile screens.

Extremely reliable, the Xenon 1900 Color withstands up to 50 drops to concrete from 6 feet, features an IP41-rating for added protection against dust and moisture, and provides a solid state design which consolidates components onto a single board, maximizing scanner longevity. Combined with Honeywell’s 5 year manufacturer warranty, this 2D imager will provide years of uninterrupted performance.

    Features
  • Scan red and other color barcodes
  • Color image capture
  • EasyDL software for Driver's License data parsing
  • 240 inch per second motion tolerance
  • Withstands multiple 6-foot drops to concrete
  • Available in Black, Disinfectant-Ready Healthcare White

The Honeywell Xenon 1900 Color is a corded barcode scanner, for the cordless model please visit the Honeywell Xenon 1902 Color.

Please call 800-903-6571 or email [email protected] for further information.

Product Specifications
Dimensions 104 mm x 71 mm x 160 mm (4.1˝ x 2.8˝ x 6.3˝)
Weight 147 g (5.2 oz)
Color Options Black, White
Interfaces Available USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Scan Method Area Imager
Battery Corded
Decoding Capabilities Linear:
China Pst, Codabar (NW7), Code 11, Code 128, Code 32, Code 39, Code 93, Code 2 of 5, EAN, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 DataBar (formerlly RSS), Telepen, Trioptic Code, UPC
Decoding Capabilities Stacked:
Codablock F, GS1 Composite (formerly EAN/UCC), Micro PDF417, PDF 417

Matrix:Aztec, Chinese Sensible Code (Han Xin Code), Data Matrix, MaxiCode, QR Code, Micro QR Code
Motion Tolerance Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus
Reading Angle HD Focus: Horizontal 41.4°; Vertical: 32.2°
SR Focus: Horizontal: 42.4°; Vertical: 33°
Print Contrast (Min) 20% minimum reflectance difference
Drivers License Data Parsing Yes with Optional Drivers License Parsing Software
Healthcare Specific Model 1900hHD-0-COL Yes
Image Capture Yes
Stand STND-08R00-000-4 Optional
Mobile Phone Scanning Capabilities Yes
Drop Specification Up to 50 drops to concrete from up to six feet
Operating Temperature 0°C to 50°C (32°F to 122°F)
Environmental Sealing IP41
Ambient Light (Max) 100,000 lux (9,290 foot-candles)
Warranty 5 Years

Honeywell Xenon 1900 Color Reviews

POSGuys Rating:

Honeywell's latest Xenon is quite unique in its ability to scan red barcodes. Most scanners use red light to illuminate the intended barcode and thus any color which reflects red light is used for spaces between bars and not the bars themselves. This means that it is most often impossible for other scanners to read red as well as yellow and orange colored barcodes. One would expect this unique functionality to slow down a barcode scanner but with Honeywell’s ColorFusion™ technology the Xenon 1900 Color is just as aggressive as ever.

Customer Reviews

Frequestly Asked Questions

Accessories

Xenon 1900 Stand, Grey, 9" Height, Flexible Rod, Weighted Base
Xenon 1900 - 1-Year Warranty, 3-day turnaround, wear and defects only, Post Sale
Xenon 1900 - 5-Year Warranty, 1-day turnaround, comprehensive coverage.
Xenon 1900 and 1902 EasyDL Drivers License Parsing Software License
Please Call
Xenon 1900 PS/2 Keyboard Wedge Interface Cable, Black, Coiled, 3m Length
USB Interface Cable, Black, 5m Length
Xenon 1900 RS-232 Serial Interface Cable, Black, DB9 Female, 3m Length, ± 12V Signals (True RS-232 Interface, Requires Power Supply: Part Number 46-00525)
Honeywell RS-232 Serial Interface Cable, Black, DB9 Female, 3m Length, ± 5V Signals (TTL Interface, Requires Power Supply: Part Number 46-00525)
ColorFusion Software License Key for Xenon 1902g Barcode Scanner (Models with Color Imaging Capability Only)
Honeywell Universal Power Power Supply (PowerLink) for the Vuquest 3310g, MS9540, MS9520, MS7120 and MS5145
USB Interface Cable, Black, 3 Meter, Straight
EasyDL Drivers License Parsing Software License
Xenon 1900 Stand, Grey, 9" Height, Flexible Rod, Weighted Base, Xenon Cup

Previously Available Models

Previously Available Accessories
