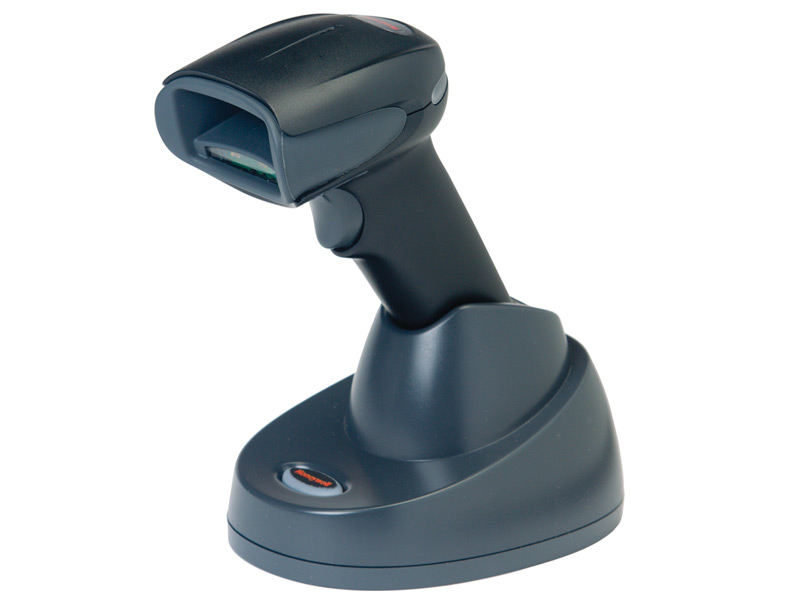

Honeywell Xenon 1902 Color
Xenon 1902 Color Barcode Scanner
The Honeywell Xenon 1902 Color has reached end of life. It has been replaced by the Honeywell Xenon XP 1952g.
Honeywell’s Xenon 1902 Color barcode scanner combines Adaptus Imaging Technology 6.0 with cutting edge color imaging capabilities, allowing end users to document color signatures, Licenses and packages without staying at their computer or sacrificing barcode scanning performance. This cordless 2D barcode scanner unlocks new worlds of functionality, allowing enterprises to read color barcodes that were previously unreadable, such as a red barcode on a white background. It also eliminates the need to use a separate digital camera for color image capture, streamlining workflow and improving productivity.Honeywell designed the Xenon 1902 Color to survive rough retail environments. Mounted components on a single board eliminate the need for connectors resulting in a more reliable scanner with fewer components and failure points. The durable single board design improves serviceability, minimizes downtime, and allows the Xenon 1902 Color to withstand up to 50 drops to concrete from up to 6 feet. Single board design also helps to minimize form factor, meaning that the Xenon 1902 is lighter and fits well in virtually any sized hand, reducing operator fatigue and allowing for more productive time spent scanning.
- Features
- EasyDL software for Driver's License data parsing (Optional)
- Withstands up to 50 6-foot drops to concrete
- Available in Black, Disinfectant-Ready Healthcare White
- 240 inch per second motion tolerance
- Color image capture capability
- Scans red and other high contrast colored barcodes
The Xenon 1902 Color is a cordless barcode scanner, for the corded model please visit the Honeywell Xenon 1900 Color.
Product Specifications | |
---|---|
Dimensions | 104 mm x 71 mm x 160 mm (4.1˝ x 2.8˝ x 6.3˝) |
Weight | 147 g (5.2 oz) |
Color Options | Black, White |
Interfaces Available | USB, Keyboard Wedge, RS232, IBM 46xx (RS485) |
Scan Method | Area Imager |
Battery | 1800 mAh Li-ion minimum |
Decoding Capabilities | Linear: China Pst, Codabar (NW7), Code 11, Code 128, Code 32, Code 39, Code 93, Code 2 of 5, EAN, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 DataBar (formerlly RSS), Telepen, Trioptic Code, UPC |
Decoding Capabilities | Stacked: Codablock F, GS1 Composite (formerly EAN/UCC), Micro PDF417, PDF 417 Matrix: Aztec, Chinese Sensible Code (Han Xin Code), Data Matrix, MaxiCode, QR Code, Micro QR Code |
Operating Time | Up to 50,000 scans per charge (Approx. 14 hours) |
Recharge Time | 4.5 Hours |
Motion Tolerance | Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus |
Reading Angle | HD Focus: Horizontal 41.4°; Vertical: 32.2° SR Focus: Horizontal: 42.4°; Vertical: 33° |
Print Contrast (Min) | 20% minimum reflectance difference |
Drivers License Data Parsing | Yes with Optional Drivers License Parsing Software |
Healthcare Specific Model | 1902hHD-0-COL Yes |
Image Capture | Yes |
Mobile Phone Scanning Capabilities | Yes |
Drop Specification | Up to 50 drops to concrete from up to six feet |
Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Environmental Sealing | IP41 |
Ambient Light (Max) | 100,000 lux (9,290 foot-candles) |
Warranty | 3 Year |
Downloads |
---|
Data Sheet - Xenon 1902 Color |
Quick Start Guide (English) |
Quick Start Guide (Español) |
EasyDL Software Information |
Honeywell Xenon 1902 Color Reviews
The Xenon 1902 Color is unique among cordless imagers for its ability to scan barcodes in the colors red and orange. With an image capture capability that renders this device similar to a digital camera, this scanner is ideal for use when keeping a visual record of packages, Driver Licenses or signatures.
