Zebra DS9308 Hands-Free Scanner Barcode Scanner | POSGuys.com
Home » Barcode Scanner » Zebra DS9308 Hands-Free Scanner

Zebra DS9308 Hands-Free Scanner

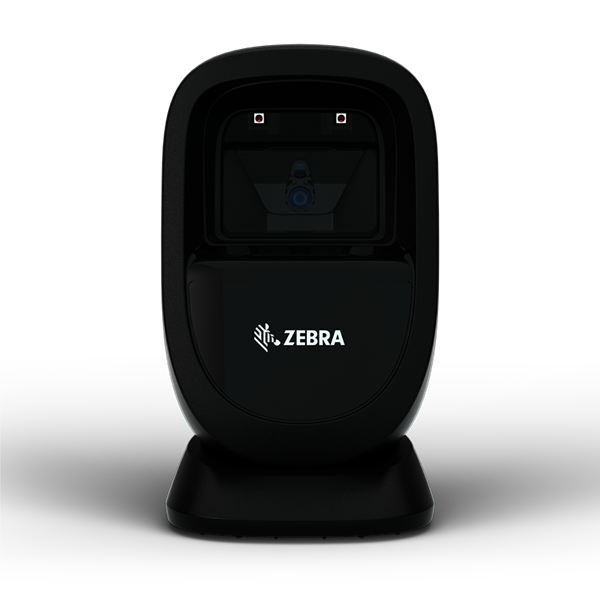

DS9308 Hands-Free Scanner Product Image

The pictures shown are general images for product DS9308 Hands-Free Scanner and may not be applicable to all part numbers

DS9308 Hands-Free Scanner Barcode Scanner


This product replaces the older Symbol DS9208.

From convenience and drug stores to quick serve restaurants and other retail environments — counterspace is limited, bumps and spills may be an everyday occurrence, and the need for high customer satisfaction is always critical. Introducing the DS9300 Series, the presentation scanner that fits anywhere, scans everything, and is built for all-day reliability. You get a compact form factor coupled with stylish aesthetics ideal for trendy boutiques or convenience stores with limited real-estate at the checkout counter. With the ability to scan challenging barcodes at your point of sale, you get unmatched performance for speedier checkout times and happier customers, along with a design that is built to handle everyday drops, bumps and spills to keep you up and running. The DS9300 Series — the little presentation scanner with big functionality.
Use Part # DS9308-SR4R2800AZW if you are using RUBY

Product Specifications
Dimensions 5.7 in. H x 3.4 in. W x 3.3 in. D
Weight 11.2 oz.
Swipe Speed Up to 120 in./305 cm. per second for 13 mil UPC in optimized mode
Illumination 660 nm Hyper Red LED
Imager Field of View 52° H x 33° V nominal
Image Sensor 1280 x 800 pixels
Operating Temperature 32.0° F to 122.0° F
Drop Specification Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete
Environmental Sealing IP52
1D Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, securPharm, DotCode, Dotted DataMatrix

Zebra DS9308 Hands-Free Scanner Reviews

POSGuys Rating: Not Rated

Customer Reviews

Downloads
Spec Sheet

Frequestly Asked Questions

Recommended Models

DS9308 Hands-Free Scanner Black USB Kit: DS9308-SR00004ZZWW Scanner, CBA-U21-S07ZBR Shielded USB Cable
Interface:USB
Color:Black
DS9308-DL BLACK USB KIT - NA: DS9308-DL00004ZZNA SCANNER, CBA-U21-S07ZBR SHIELDED USB CABLE (Driver's License Parsing)
Driver's License Parsing:DL Parsing
Interface:USB
Color:Black

Additional Models

DS9308: Presentation Area Imager, Standard Range, DL Parsing, Corded, Midnight Black, Checkpoint EAS
Driver's License Parsing:DL Parsing
Interface:Order Cable Separately
Color:Black
Checkpoint EAS:Checkpoint EAS
DS9308: Presentation Area Imager, Standard Range, Corded, Midnight Black, Checkpoint EAS
Interface:Order Cable Separately
Color:Black
Checkpoint EAS:Checkpoint EAS
DS9308: Presentation Area Imager, Standard Range, DL Parsing, Corded, Midnight Black (scanner only, see accessories for USB cable)
Driver's License Parsing:DL Parsing
Interface:Order Cable Separately
Color:Black
DS9308: Presentation Area Imager, Standard Range, Corded, Midnight Black
Interface:Order Cable Separately
Color:Black
DS9308: Presentation Area Imager, Standard Range, Corded, Alpine White
Interface:Order Cable Separately
Color:White
DS9308 Hands-Free Scanner Black Serial Kit: DS9308-SR00004ZZWW Scanner, CBA-R28-C09ZAR Verifone Cable, Confirmed to Work with Ruby
Interface:RS232 Serial - Verifone
Color:Black
DS9308 Hands-Free Scanner Black Serial Kit - US: DS9308-SR00004ZZWW Scanner, CBA-R01-S07PBR Serial Cable, PWR-WUA5V4W0US Power
Interface:RS232 Serial
Color:Black

Accessories

Cable - Shielded Usb: Series A Connector, 7Ft. (2.1M), Straight (Updated)
