DataLogic PowerScan 7000 2D

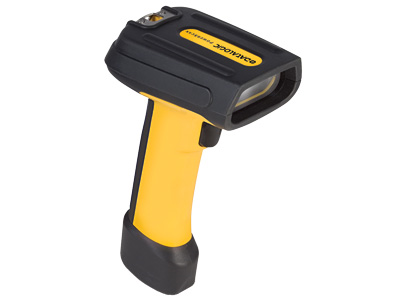

PowerScan 7000 2D Product Image

The pictures shown are general images for product PowerScan 7000 2D and may not be applicable to all part numbers

PowerScan 7000 2D Industrial Barcode Scanner

The DataLogic PowerScan 7000 2D has reached end of life. It has been replaced by the DataLogic PowerScan PD9531.

The Datalogic PowerScan 7000 2D barcode scanner gives you industrial grade durability at an economical price, excellent for shipping and logistics applications. Available as a standard range or high density imager, the PowerScan 7000 2D can scan barcodes from up to 12 inches away. A green LED illuminates the optimal scanning area, aiding in aiming.

The PowerScan 7000 2D has been designed to hold up to incredibly rough environments, sporting an IP65 seal, completely sealing it from dust and protecting it from low pressure jets of water. This durable design also allows the barcode scanner to operate in temperatures as low as -22° F, making it the smart choice for cold storage inventory management.

• Withstands drops of 6.6-feet to concrete
• IP65 seal keeps out dust & low-pressure water jets
• High resolution VGA Plus image capture allows for signature capture
Product Specifications
Dimensions 19.0 x 7.5 x 11.5 cm / 7.5 x 3.0 x 4.5 in
Weight 283.0 g / 10.0 oz
Color Options Yellow/Black
Interfaces Available Keyboard Wedge
Scan Method Area Imager
Decoding Capabilities Decodes 1D, 2D and stacked codes, plus postal codes and OCR fonts
Mobility/Range Corded
Motion Tolerance
Reading Angle Pitch: +/- 40°
Roll (Tilt): 360°
Skew (Yaw): +/- 40°
Print Contrast (Min.) 37%
Typical Depth of Field PS7000 2D Standard
6.6 mils PDF: 4.5 to 12.7 cm / 1.8 to 5.0 in
8.3 mils: 6.3 to 16.7 cm / 2.5 to 6.6 in
8.3 mils Data Matrix: 6.1 to 11.9 cm / 2.4 to 4.7 in
10 mils PDF: 3.0 to 16.7 cm / 1.2 to 6.6 in
13 mils: 2.8 to 31.0 cm / 1.1 to 12.2 in
15 mils Data Matrix: 3.3 to 23.3 cm / 1.3 to 9.2 in
35 mils Maxi Code: 2.5 to 30.5 cm / 1.0 to 12.0 in
Indicators Indicators Beeper (Adjustable Tone)
Good Read LED
Auto Sense Mode Yes, In Hands Free Stand
Drivers License Data Parsing No
Image Capture Yes
Graphic Formats: BMP, JPEG, TIFF
Mobile Phone Scanning Capabilites No
Operating Temperature -30 to 50 °C / -22 to 122 °F
Storage Temperature -40 to 60 °C / -40 to 140 °F
Drop Specification Withstands 50 drops from 2 m / 6.6 ft onto a concrete surface
Environmental Sealing IP65
Ambient Light (Max) 0 - 100,000 lux
Stand Yes, As Accessory
Warranty 5 Year Warranty
