DataLogic PowerScan PD9531

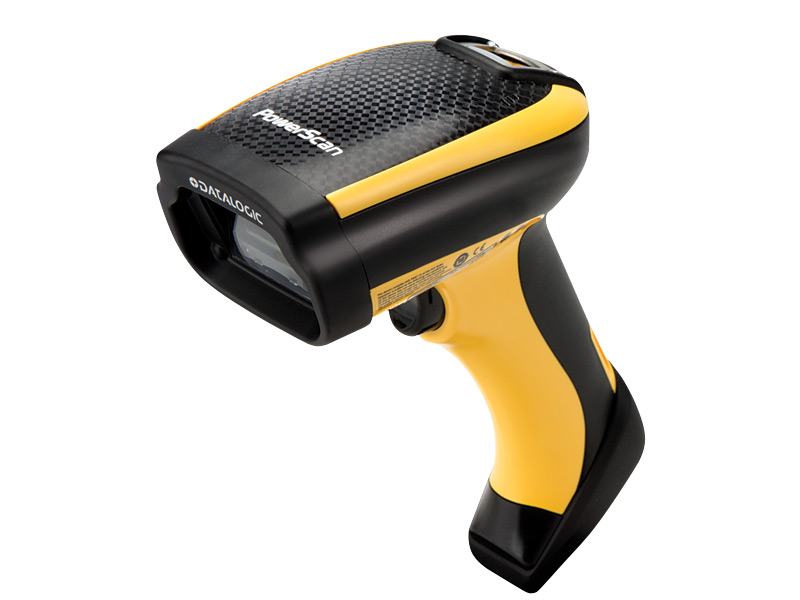

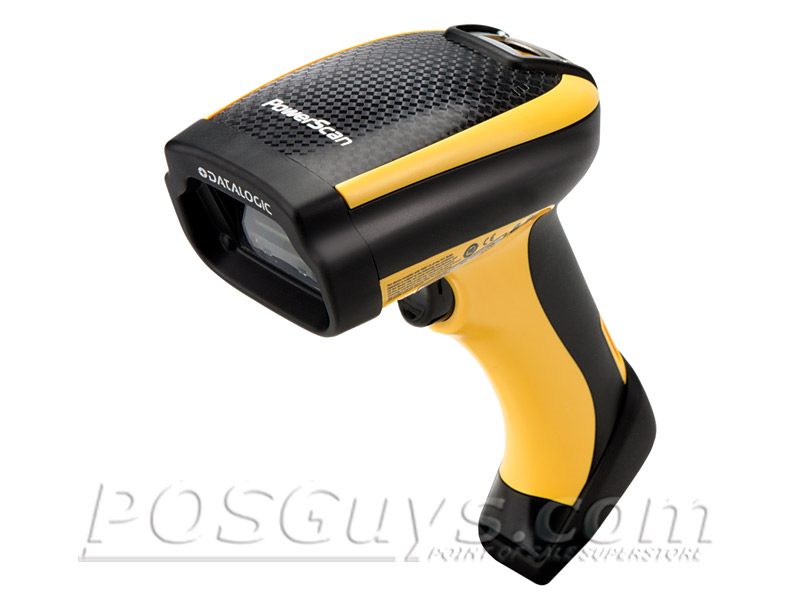

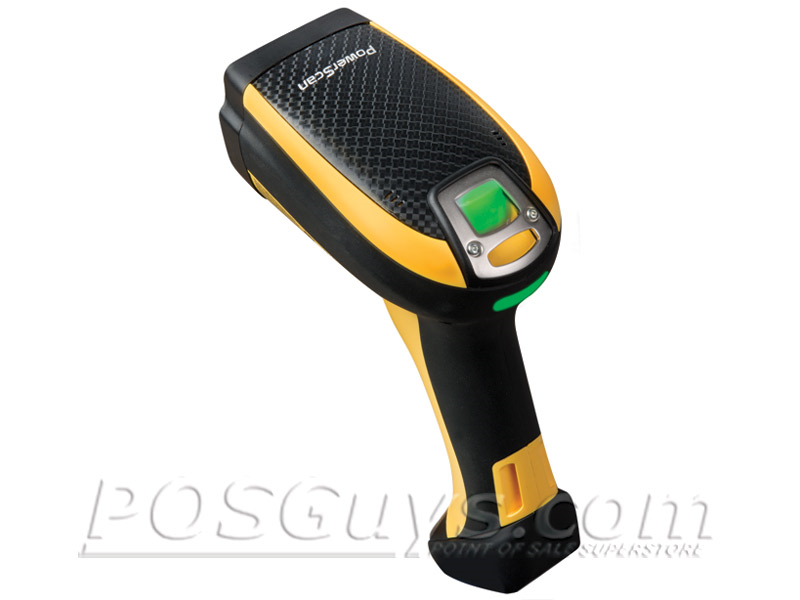

The pictures shown are general images for product PowerScan PD9531 and may not be applicable to all part numbers
Black/Yellow
PowerScan PD9531 Industrial Barcode Scanner
The DataLogic PowerScan PD9531 is nearing end of life. It will soon be replaced by the DataLogic PowerScan PD9630.
This product replaces the older DataLogic PowerScan 7000 2D.
The Datalogic PowerScan PD9500/PD9501 barcode scanner offers the high performance imaging necessary for heavy industrial or manufacturing data capture. Available as a standard or high performance scanner, the PD9500 fits in well in outdoor scanning or harsh environments.
The 2D area imager in the PowerScan PD9500 provides the aggressive scanning you need to keep operations moving smoothly. You get quick barcode scanning from contact to over a yard away, eliminating the hassle of learning the scanner's "sweet spot." The scanner reads barcodes as small as 2.5 Mil, terrific for the small barcodes you find on parts during the manufacturing process.
Heavy industrial environments can push hardware far beyond their capabilities. Thankfully the PowerScan PD9500 has been built to handle these steep demands. The scanner is built to operate in temperatures as low as -4° F, ideal for cold storage and outdoor barcode scanning. An environmental seal rated at IP65 keeps all dust and low pressure jets of water from harming internal components, and the scanner is reinforced to survive drops of over 6 feet to concrete. With a 3-year warranty standard, the Datalogic PowerScan PD9500 has the performance and durability you need.
- Features
- IP65 seal, protects against dust and low pressure water jets
- 3 Green Lights and loud beep signify successful scans
- Withstands 50 drops of 6.5-feet to concrete
- Operates in temperatures as low as -4° F
| Model | Max Resolution (1D) | Max Resolution (2D) | Scan Range (13 Mil 1D) |
| PD9530 | 4 Mil | 7.5 Mil | 1.5" to 17.7" |
| PD9530-HP | 2.5 Mil | 4 Mil | 1.1" to 23.6" |
| Product Specifications | |
|---|---|
| Dimensions | 4.3" x 2.9" x 8.3" |
| Weight | 11.6 oz |
| Color Options | Black/Yellow |
| Interfaces Available | USB, PS/2 Keyboard Wedge, RS-232 Serial |
| Scan Method | 2D Area Imager |
| Decoding Capabilities | Standard 1D and 2D barcodes |
| Print Contrast (Min.) | 15% |
| Reading Angle | Pitch: ± 40° Roll (tilt): 360° Skew: ± 40° |
| Indicators | Beeper, Datalogic 3 Green Light technology, Green Spot |
| Typical Depth of Field | For 13 Mil
PD9530: 1.5" to 17.7" PD9530-HP: 1.1" to 23.6" |
| Ambient Light (Max) | 0 to 100,000 Lux |
| Operating Temperature | -4° to 122° F |
| Storage Temperature | -40° to158° F |
| Drop Specification | Withstands 50 6.5-foot drops to concrete |
| Mobile Phone Scanning Capabilities | Yes |
| Environmental Sealing | IP65 |
