DataLogic PowerScan PM9600

The pictures shown are general images for product PowerScan PM9600 and may not be applicable to all part numbers

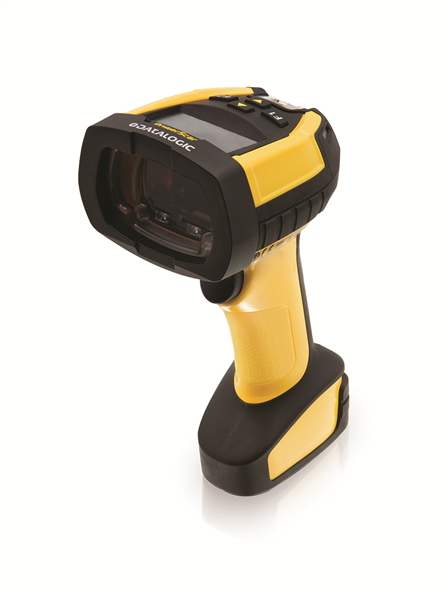

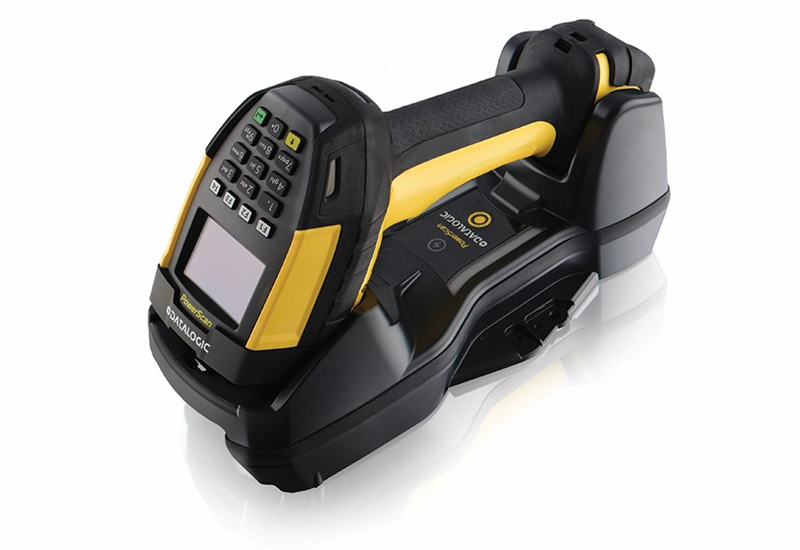

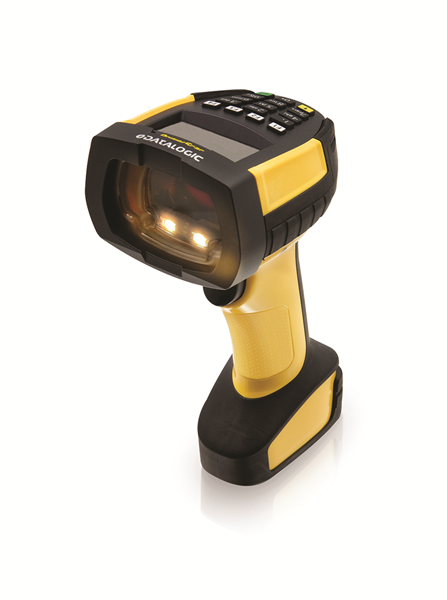

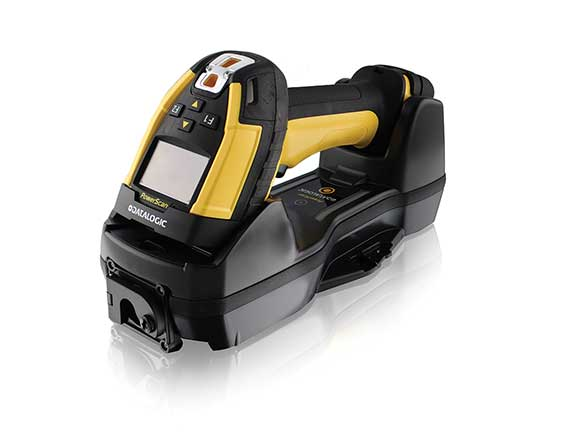

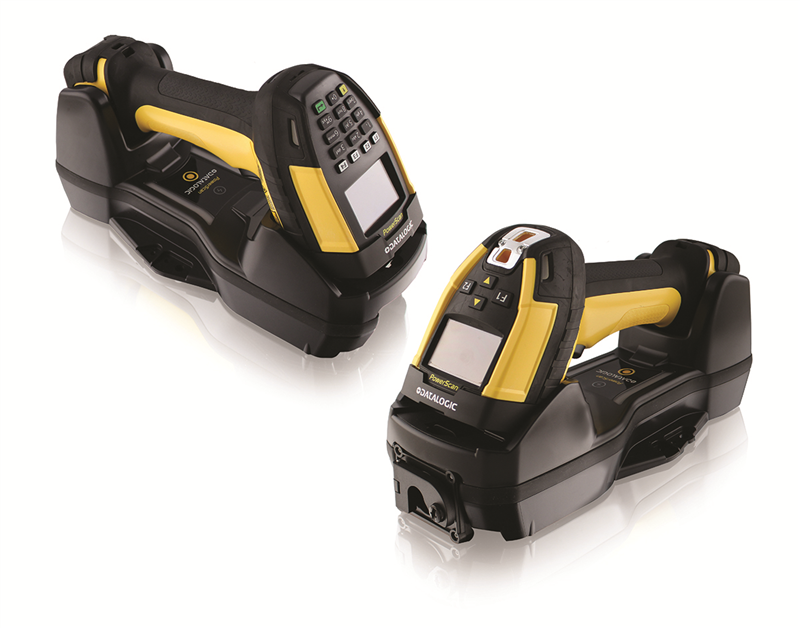

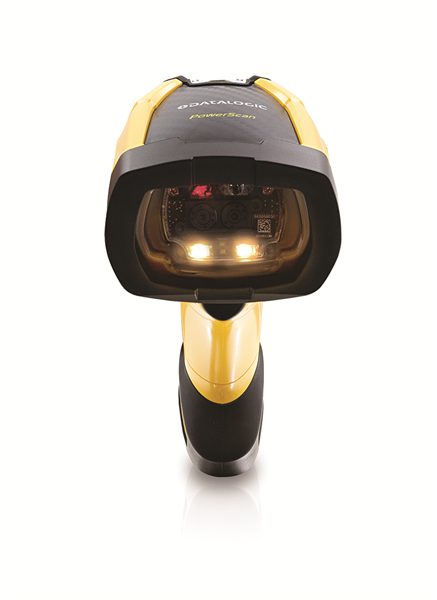

PowerScan PM9600 Industrial Barcode Scanner


This product replaces the older DataLogic PowerScan PBT9501.

Handheld Industrial Scanners for 1D/2D Barcode Reading with Top Flexibility

Bullet Proof Your Traceability Targets

The 9600 is the range-topping handheld industrial scanner in the best-selling PowerScan series from Datalogic, helping you smash your traceability targets. Achieving full traceability in manufacturing, intralogistics and retail environments is the number one priority faced by businesses today when faced with fulfilling consumer delivery demands. You need a tough device for handling the toughest jobs. This IP65 and IP67 rated scanner will withstand 2.5 m drops onto hard concrete, and the trigger is tested to resist up to 10 million hits. Even though it is impervious to dirt and water, it is wirelessly charged in its cradle. No more device failure due to grimy or corroded charging contacts. Maximum performance whilst protecting your bottom line at a great price!

Future Proof Your Connectivity

The PowerScan 9600 series of 2D barcode scanner features all the standard benefits associated with Datalogic industrial handheld scanners, but now with embedded industrial connectivity, allowing simple interfacing with a PC, Industrial PC, Tablet, or PLCs. There is no need for third part devices as the communication modules are exchangeable in the cradle, and inline for the wired version. The plug and play architecture helps to maintain network integrity, and is easily configurable between RS-232, USB, USB-C, Ethernet, Ethernet I/P or Profinet. Any future standards or changes to your networking setup are easy to switch to within a matter of minutes.

Putting Power into Your Hands

The PowerScan 9600 rugged barcode scanner range offers three different performance levels, depending on your application, with read rates 20% faster than competitive products. The Standard Range model is equipped with a single camera for capturing low density 1D and 2D codes within normal reading ranges. For longer distance reading, choose the High Performance reader with a dual camera. Finally, and unique to Datalogic, is the Document Capture model which will take color images for quality control or signatory confirmation. As with all Datalogic scanners, the 9600 Series provides gentle white light illumination and outputs a successful ‘Green Spot’ for a successful read, even on damaged or dirty barcodes.

Taking Wireless to The Next Level

The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic’s STAR Cordless System™. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The PowerScan 9600 scanner features Datalogic’s Wireless Charging System. Based on inductive-charging technology, Datalogic’s Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time – and this removes a key point of failure for devices used in industrial and retail functions. Operators can freely walk around large working areas with an industrial wireless barcode scanner, scanning items, inputting data from the built-in keypad, and gaining immediate feedback from the host on the large, bright OLED display.

Ensuring Even Better Cost of Ownership

With growing emphasis on long term device performance, Datalogic has equipped several cost-saving features in the PowerScan 9600 Series. Smart battery technology maximizes and optimizes charging efficiency, providing an indication of battery health. The cradle also includes wireless charging capability, eliminating the possibility of poor or no charging due to damaged or dirty contacts, which is the number one failure in traditional cradle setups. These new cradles even provide information on device health, enabling you to schedule predictive maintenance, thus avoiding any unplanned downtime because of unexpected failure. Your total cost of ownership is reduced significantly thanks to these simple but powerful additions, with wireless charging providing a 15% increase. The PowerScan 9600 Series is the easy choice when it comes to top flexibility and extreme reliability regarding handheld scanners.

9600 Auto Range Series

The 9600 series is also available in a full suite of Auto Range (AR) products to provide the best solution for different necessities. It includes a corded desk models (PD9600 AR), cordless models featuring Datalogic’s STAR 433 MHz Cordless System™ 2.0 proprietary radio (PM9600 AR) and full keypad/display options, and cordless Bluetooth® 5.0 models (PBT9600AR). The PowerScan 9600 Auto Range series inherits the plug-and-play architecture of the PowerScan 9600 family making it easily configurable between Serial, USB, Ethernet, EtherNet/IP, or PROFINET while protecting customer’s investment in case of future changes to the communication setup.



Other PowerScan 9600 Listings:

Features - POWERSCAN™ 9600 SERIES
  • Snappy omnidirectional reading on 1D, stacked and 2D codes, postal codes
  • Standard Range and High Performance models
  • Water and Particulate Sealing Rating: IP65 and IP67; Cradle IP65; 10 million hits trigger
  • Center of gravity design
  • Modular cradle design allowing interface expansion
  • White light illumination
  • High visibility OLED Display with 4-Keys /16-Keys keypad options
  • Standard Range, High Performance and Document capture optics
  • Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback
  • Datalogic’s Motionix™ motion-sensing technology
  • Wireless Charging reducing total cost of ownership
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI.
Product Specifications
Datalogic STAR Cordless System
  • Radio Frequency: 433 MHz; 910 MHz;
  • Effective Radiated Power: 433 MHz: < 10 mW; 910 MHz: < 50 mW; Point-to-Point/Multi-Point
  • Configuration; Max. Readers per Radio Receiver: 16; Two Way Communications.
  • Radio Range (Open Air): 433 MHz: 150 m / 492 ft low speed; 100 m / 328 ft high speed
  • 910 MHz: 230 m / 754 ft low speed; frequency hopping; 180 m / 590 ft high speed
  • 1D / Linear Codes Auto discriminates all standard 1D codes including GS1
    2D Codes Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code
    Postal Codes Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
    Stacked Codes EAN/JAN Composites; GS1 DataBar Composites; GS1
    Digital Watermarking EAN/JAN Composites; GS1 DataBar Composites; GS1
    Print Contrast 15% Minimum
    Reading Angle Pitch: +/- 52°; Roll (Tilt): 360°; Skew (Yaw): +/- 52°
    Resolution (Max) SR: 1D Codes: 3 mil; 2D Codes: 6 mil HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil
    Environmental seal IP67 and IP65; Cradle IP65 (specific models)
    Operating Temperature -20 to 50 °C / -4 to 122 °F
    Storage -40 to 70 °C / -40 to 158 °F
    MTBF Withstands 10 million hits
    User Interfaces RS-232 / USB / Keyboard Wedge Multi-Interface / Ethernet and Industrial Protocols
    ESD Protection (Air Discharge) 20 k
    Battery
  • Battery Type: Lithium-Ion: 3350 mAh
  • Charge time @ 12 VDC: 2.5 hours to charge up to 95%, 3.2 hours to charge 100%, External Power.
  • Reads per charge: 80,000
  • Ambient Light 0 - 100,000 lux
    Drop Resistance
  • Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F;
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
  • Trigger Resistance Withstands 10 million hits
    ESD Protection (Air Discharge) 20 kV
    Humidity (Non-Condensing) 0 - 95%
    Particulate and Water Sealing IP67 and IP65; Cradle IP65 (specific models)
    Temperature
  • Operating: -20 to 50 °C / -4 to 122 °F
  • Storage/Transport: -40 to 70 °C / -40 to 158 °F
  • Charging: 0 to 40 °C / 32 to 104 °F nominal; 0 to 35 °C / 32 to 95 °F ideal
  • Interfaces RS-232 / USB / Ethernet and Industrial Protocols
    Colors Available Yellow/Black
    Dimensions H x L x W 19.8 x 14.0 x 7.9 cm / 7.8 x 5.5 x 3.1 in
    Display PM9600-D/DK. 1.8’’ OLED graphic display; Font Dimensions: User selectable.

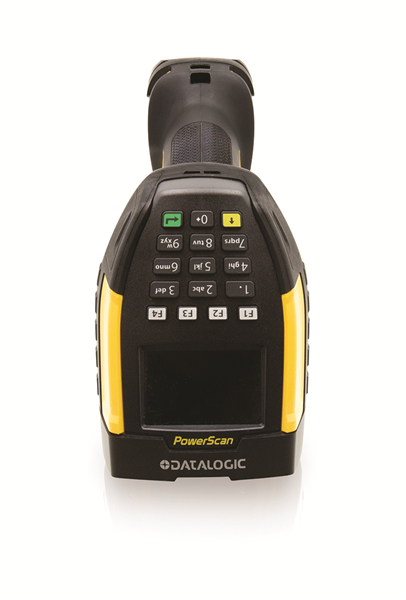

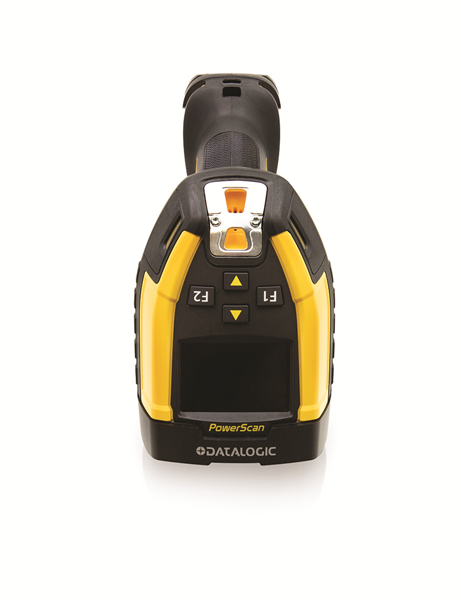

    Keyboard PM9600-D: 4 Keys, PM9600-DK: 16 Keys; Configurable
    Weight
  • PD9630: 318 g / 11.2 oz,
  • PBT9600: 415 g / 14.6 oz,
  • PM9600: 425 g / 15.0 oz,
  • PM9600-D: 445 g / 15.7 oz,
  • PM9600-DK: 455 g / 16.0 oz
  • Imager Sensor 1280 x 800 pixels
    Light Source
  • Aiming: 630 - 680 nm VLD
  • Illumination: White LED reading light
  • Print Contrast Ratio (Minimum) 15%
    Reading Angle Pitch: +/- 52°; Roll (Tilt): 360°; Skew (Yaw): +/- 52°
    Field of View SR and HP: 38° H, 24° V
    Reading Indicators Beeper (Adjustable Tone and Volume); Datalogic’s 3GL™
    Resolution (Maximum)
  • SR/DC: 1D Codes: 3 mil; 2D Codes: 6 mil
  • HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil
  • Typical Depth of Field SR Models
    Code 128
  • 5 mils: 6.4 to 30.9 cm / 2.5 to 12.2 in
  • 20 mils: 4 to 103.7 cm / 1.6 to 40.8 in
  • 40 mils: 5.5 to 175 cm / 2.2 to 68.9 in
    EAN/UPC
  • 13 mils: 4 to 67.5 cm / 1.5 to 26.5 in
    DataMatrix
  • 10 mils: 6 to 30 cm / 2.5 to 11.8 in

    HP Models
    Code 128
  • 2.5 mils: 6.3 to 11.5 cm / 2.5 to 4.5 in
  • 5 mils: 3.8 to 41 cm / 1.5 to 16.1 in
  • 40 mils: 5.5 to 242.9 cm / 2.1 to 95.6 in
    EAN/UPC
  • 13 mils: 4 to 120 cm / 1.5 to 40.2 in
    PDF417
  • 10 mils: 0.5 to 46.1 cm / 0.2 to 18.1 in
    DataMatrix
  • 10 mils: 4.2 to 32 cm /1.6 to 12.6 in
  • DataLogic PowerScan PM9600 Reviews

    POSGuys Rating: Not Rated

    Customer Reviews

    Recommended Models

    PowerScan PM9600-HP, High Performance, 433MHz, USB Kit (Kit includes Scanner PM9600-HP, cradle BC9630-433, Cable CAB-552 , Power Supply 8-0935 and Power Cord 6003-0940)
    Radio Frequency:433MHz
    Keys:No Keys
    Interface:USB
    Accessories:Cradle & Power Supplies Included
    Scan Engine:High Performance
    Display:No Display
    PowerScan PM9600-SR, Standard Range, 433 MHz, USB Kit (Kit includes Scanner PM9600-SR, cradle BC9630-433, Cable CAB-552, Power Supply 8-0935 and Power Cord 6003-0940)
    Radio Frequency:433MHz
    Keys:No Keys
    Interface:USB
    Accessories:Cradle & Power Supplies Included
    Display:No Display
    Scan Engine:Standard Range

    Additional Models

    PowerScan PM9600, High Performance, 433MHz, Display/4-Key Keypad, Removable Battery, USB Kit (Kit includes Scanner, cradle BC9630-433, Cable CAB-552, Power Supply 8-0935 and Power Cord 6003-0940)
    $1020.11 Add to Cart
    Keys:4 Key
    Radio Frequency:433MHz
    Interface:USB
    Accessories:Cradle & Power Supplies Included
    Display:Display
    Scan Engine:High Performance
    PowerScan PM9600, High Performance, 910 MHz, Display/16-key Keypad, Removable Battery. Scanner Only - Order Cradle & Cables Separately.
    Keys:16 Key
    Radio Frequency:910MHz
    Interface:USB/RS-232 - Order Cables Separately.
    Display:Display
    Scan Engine:High Performance
    Accessories:No Accessories. Scanner Only.
    PowerScan PM9600, High Performance, 910MHz, Display/16-Key Keypad, Removable Battery, USB Kit (Kit includes Scanner, cradle BC9630-910, Cable CAB-552, Power Supply 8-0935 and Power Cord 6003-0941)
    $1180.59 Add to Cart
    Keys:16 Key
    Radio Frequency:910MHz
    Interface:USB
    Accessories:Cradle & Power Supplies Included
    Display:Display
    Scan Engine:High Performance
    PowerScan PM9600, High Performance, 433MHz, Display/4-Key Keypad, Removable Battery, RS-232 Kit (Kit includes Scanner, cradle BC9630-433, Cable CAB-548, Power Supply 8-0935 and Power Cord 6003-0940)
    $1020.11 Add to Cart
    Keys:4 Key
    Radio Frequency:433MHz
    Interface:RS-232
    Accessories:Cradle & Power Supplies Included
    Display:Display
    Scan Engine:High Performance
    PowerScan PM9600, High Performance, 433MHz, Display/16-Key Keypad, Removable Battery, USB Kit (Kit includes Scanner, cradle BC9630-433, Cable CAB-552, Power Supply 8-0935 and Power Cord 6003-0940)
    $1093.27 Add to Cart
    Keys:16 Key
    Radio Frequency:433MHz
    Interface:USB
    Accessories:Cradle & Power Supplies Included
    Display:Display
    Scan Engine:High Performance
    PowerScan PM9600, High Performance, 910MHz, Display/16-Key Keypad, Removable Battery, RS-232 Kit (Kit includes Scanner, cradle BC9630-910, Cable CAB-548, Power Supply 8-0935 and Power Cord 6003-0941)
    $1180.59 Add to Cart
    Keys:16 Key
    Radio Frequency:910MHz
    Interface:RS-232
    Accessories:Cradle & Power Supplies Included
    Display:Display
    Scan Engine:High Performance
    PowerScan PM9600, High Performance, 910MHz, Display/4-Key Keypad, Removable Battery. Scanner Only - Order Cradle & Cables Separately.
    Keys:4 Key
    Radio Frequency:910MHz
    Interface:USB/RS-232 - Order Cables Separately.
    Display:Display
    Scan Engine:High Performance
    Accessories:No Accessories. Scanner Only.
    PowerScan PM9600, High Performance, 910MHz, Display/4-Key Keypad, Removable Battery, USB Kit (Kit includes Scanner, cradle BC9630-910, Cable CAB-552, Power Supply 8-0935 and Power Cord 6003-0941)
    $1101.53 Add to Cart
    Keys:4 Key
    Radio Frequency:910MHz
    Interface:USB
    Accessories:Cradle & Power Supplies Included
    Display:Display
    Scan Engine:High Performance
    PowerScan PM9600, High Performance, 433MHz, Display/16-Key Keypad, Removable Battery, RS-232 Kit (Kit includes Scanner, cradle BC9630-433, Cable CAB-548, Power Supply 8-0935 and Power Cord 6003-0940)
    $1093.27 Add to Cart
    Keys:16 Key
    Radio Frequency:433MHz
    Interface:RS-232
    Accessories:Cradle & Power Supplies Included
    Display:Display
    Scan Engine:High Performance
    PowerScan PM9600, High Performance, 910MHz, Display/4-Key Keypad, Removable Battery, RS-232 Kit (Kit includes Scanner, cradle BC9630-910, Cable CAB-548, Power Supply 8-0935 and Power Cord 6003-0941)
    $1020.11 Add to Cart
    Keys:4 Key
    Radio Frequency:910MHz
    Interface:RS-232
    Accessories:Cradle & Power Supplies Included
    Display:Display
    Scan Engine:High Performance
    PowerScan PM9600, High Performance, 433 MHz, Display/16-key Keypad, Removable Battery. Scanner Only - Order Cradle & Cables Separately.
    Keys:16 Key
    Radio Frequency:433MHz
    Interface:USB/RS-232 - Order Cables Separately.
    Display:Display
    Scan Engine:High Performance
    Accessories:No Accessories. Scanner Only.
    PowerScan PM9600, High Performance, 433MHz, Display/4-Key Keypad, Removable Battery. Scanner Only - Order Cradle & Cables Separately.
    Keys:4 Key
    Radio Frequency:433MHz
    Interface:USB/RS-232 - Order Cables Separately.
    Display:Display
    Scan Engine:High Performance
    Accessories:No Accessories. Scanner Only.
    PowerScan PM9600-HP, High Performance, 433 MHz, Removable Battery
    Radio Frequency:433MHz
    Keys:No Keys
    Interface:USB/RS-232 - Order Cables Separately.
    Scan Engine:High Performance
    Accessories:No Accessories. Scanner Only.
    Display:No Display
    PowerScan PM9600-HP, High Performance, 433MHz, RS232 Kit (Kit includes Scanner PM9600-HP, cradle BC9630-433, Cable CAB-548, Power Supply 8-0935 and Power Cord 6003-0940)
    Radio Frequency:433MHz
    Keys:No Keys
    Interface:RS-232
    Accessories:Cradle & Power Supplies Included
    Scan Engine:High Performance
    Display:No Display
    PowerScan PM9600-SR, Standard Range, 910MHz, Removable Battery. Scanner Only - Order Cradle & Cables Separately.
    Radio Frequency:910MHz
    Keys:No Keys
    Interface:USB/RS-232 - Order Cables Separately.
    Accessories:No Accessories. Scanner Only.
    Display:No Display
    Scan Engine:Standard Range
    PowerScan PM9600-HP, High Performance, 910MHz, Removable Battery. Scanner Only - Order Cradle & Cables Separately.
    Radio Frequency:910MHz
    Keys:No Keys
    Interface:USB/RS-232 - Order Cables Separately.
    Scan Engine:High Performance
    Accessories:No Accessories. Scanner Only.
    Display:No Display
    PowerScan PM9600-HP, High Performance, 910MHz, RS232 Kit (Kit includes Scanner PM9600-HP, cradle BC9630-910, Cable CAB-548, Power Supply 8-0935 and Power Cord 6003-0941)
    Radio Frequency:910MHz
    Keys:No Keys
    Interface:RS-232
    Accessories:Cradle & Power Supplies Included
    Scan Engine:High Performance
    Display:No Display
    PowerScan PM9600-HP, High Performance, 910MHz, USB Kit (Kit includes Scanner PM9600-HP, cradle BC9630-910, Cable CAB-552 , Power Supply 8-0935 and Power Cord 6003-0941)
    Radio Frequency:910MHz
    Keys:No Keys
    Interface:USB
    Accessories:Cradle & Power Supplies Included
    Scan Engine:High Performance
    Display:No Display
    PowerScan PM9600-SR, Standard Range, 433 MHz, Removable Battery. Scanner Only - Order Cradle & Cables Separately.
    Radio Frequency:433MHz
    Keys:No Keys
    Interface:USB/RS-232 - Order Cables Separately.
    Accessories:No Accessories. Scanner Only.
    Display:No Display
    Scan Engine:Standard Range
    PowerScan PM9600-SR, Standard Range, 433 MHz, RS-232 Kit (Kit includes Scanner PM9600-SR, cradle BC9630-433, Cable CAB-548, Power Supply 8-0935 and Power Cord 6003-0940)
    Radio Frequency:433MHz
    Keys:4-Key
    Interface:RS-232
    Accessories:Cradle & Power Supplies Included
    Display:No Display
    Scan Engine:Standard Range
    PowerScan PM9600-SR, Standard Range, 910MHz, USB Kit (Kit includes Scanner PM9600-SR, cradle BC9630-910, Cable CAB-552 , Power Supply 8-0935 and Power Cord 6003-0941)
    Radio Frequency:910MHz
    Keys:No Keys
    Interface:USB
    Accessories:Cradle & Power Supplies Included
    Display:No Display
    Scan Engine:Standard Range
    PowerScan PM9600-SR, Standard Range, 910MHz, RS-232 Kit (Kit includes Scanner PM9600-SR, cradle BC9630-910, Cable CAB-548 , Power Supply 8-0935 and Power Cord 6003-0941)
    Keys:4-Key
    Radio Frequency:910MHz
    Interface:RS-232
    Accessories:Cradle & Power Supplies Included
    Display:No Display
    Scan Engine:Standard Range

    Accessories

    Base Station Line Cord
    Datalogic Universal Power Power Cord (120VAC, STD)
    BC9600 Base Station/Charger, 910 MHz, Multi-Interface (RS-232, USB)
    BC9600 Base Station/Charger, 910 MHz, Multi-Interface (RS-232, USB), IP65
    Battery Pack, Removable, PowerScan 9600
    Multi Battery Charger, Extension, 2-Slot
    Multi Battery Charger, Master, 2-Slot (requires the 90ACC0350 power supply)
    Multi Battery Charger, Master, 4-Slot (requires the 90ACC0350 power supply)
    Cable CAB-552, USB Type A, Straight, 2m / 6.5 ft, IP67
    Holster, Universal, HLS-8000
    Protective Case/Belt Holster, PowerScan 9600
    Holder, Desk/Wall Mount, PowerScan 9600
    Stand, Hands-free, PowerScan 9600
    Datalogic Universal Power Power Cord (120VAC STD) (6003-0941)
    PD96XXSR EofC 2 Days Comp 3 Year
