DataLogic PowerScan PD9630

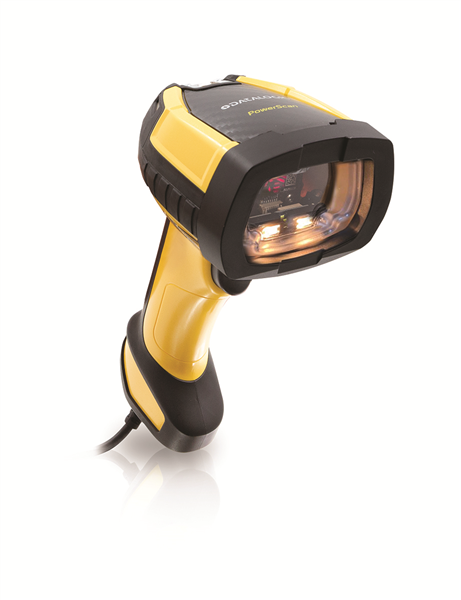

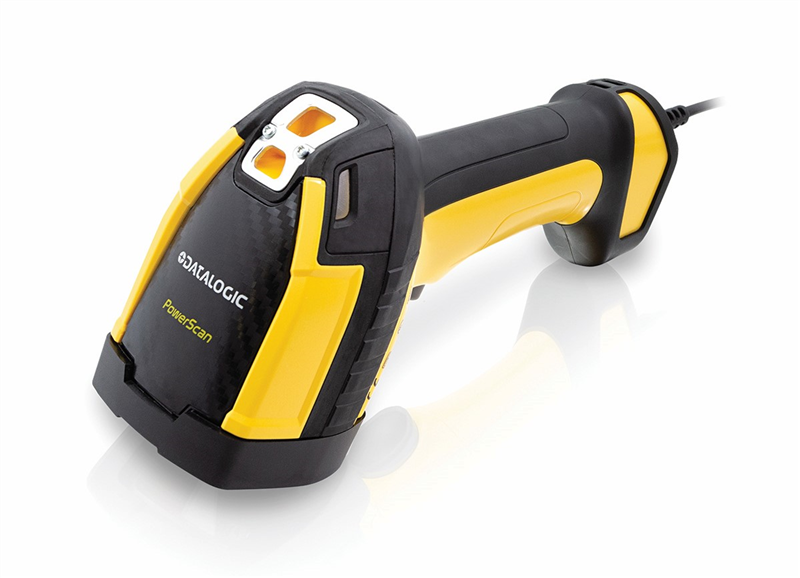

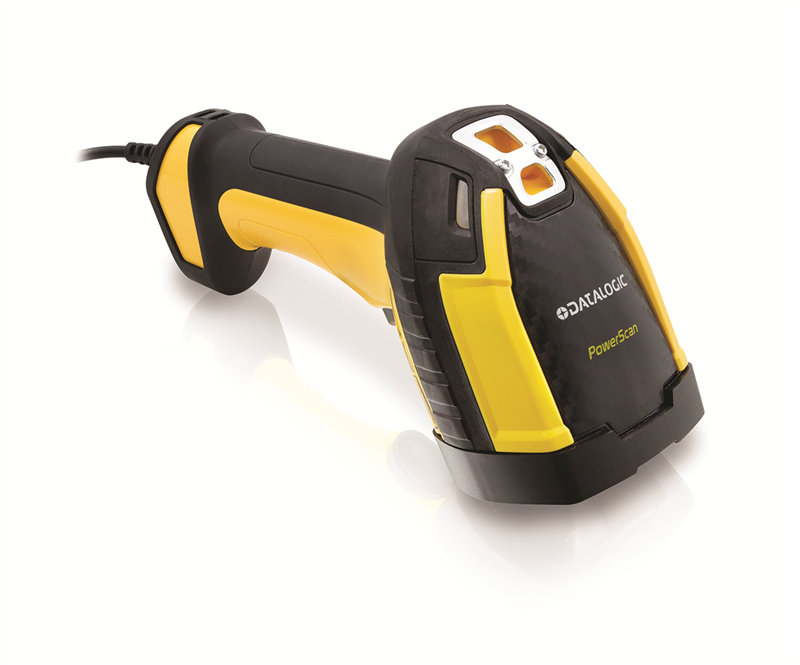

PowerScan PD9630 Industrial Barcode Scanner


The PowerScan PD9630 imager features an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement

The PowerScan PD9630 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications

The PD9630 area imagers also feature Datalogic’s exclusive 3 Green Lights (3GL™) for superior good-read feedback together with a loud beeper and vibration. The ‘Green Spot’ technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, USB and offer an optional Ethernet for standard or industrial uses.

Highlighted Features

  • Snappy omnidirectional reading from contact to over 2.0 m / 6.5
  • Water and Particulate Sealing Rating: IP65 and IP67
  • 10 million trigger hits
  • White light illumination

Scan Engine Depth-Of-Field Comparison (Please See Spec Sheet for Full Breakdown)

    PD9630 - Standard Range
  • Code 128: 5 mils: 6.4 to 30.9 cm / 2.5 to 12.2 in
  • Code 128 20 mils: 4 to 103.7 cm / 1.6 to 40.8 in
  • DataMatrix 10 mils: 6 to 30 cm / 2.5 to 11.8 in
    PD9630 - High Performance
  • Code 128: 5 mils: 3.8 to 41 cm / 1.5 to 16.1 in
  • Code 128: 20 mils: 4 to 157 cm / 1.6 to 61.8 in
  • DataMatrix 10 mils: 4.2 to 32 cm / 1.6 to 12.6 in
    PD9630 - Document Capture
  • Code 128: 5 mils: 3.1 to 39.7 cm / 1.2 to 15.6 in
  • Code 128: 5 mils: 3.1 to 39.7 cm / 1.2 to 15.6 in
  • DataMatrix 10 mils: 4.2 to 30.2 cm / 1.6 to 11.8 in
Product Specifications
Dimensions (H x L x W) 19.0 x 14.0 x 7.9 cm / 7.5 x 5.5 x 3.1 in
Weight 318.0 g / 11.2 oz
Image Sensor PD9630-SR/HP: 1280 x 800 PD9630-DC: 1280 x 800 color sensor
Reading Angle Pitch: +/- 52°; Roll (Tilt): 360°; Skew (Yaw): +/- 52
Resolution (Max) PD9630-SR/PD9630-DC: 1D Codes: 3 mil; 2D Codes: 6 mil PD9630-HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil
Ambient Light (Max) 0 - 100,000 lux
Drop Resistance Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F; Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F
Tumble Specifications 5,000 @ 1 m / 3.3 ft
MTBF Withstands 10 million trigger hits
Environmental seal IP67 and IP65
Standard Interfaces RS-232 / USB

DataLogic PowerScan PD9630 Reviews

POSGuys Rating: Not Rated

Customer Reviews

Downloads
PD9630 Data Sheet

Recommended Models

Powerscan PD9630-SR, Standard Range, USB Kit (Includes Scanner and USB Interface Cable)
Scan Engine:Standard Range
Cables Included:USB Cable
Powerscan PD9630-HP, High Performance, USB Kit (Includes Scanner and USB Interface Cable)
Scan Engine:High Performance
Cables Included:USB Cable

Additional Models

Powerscan PD9630-SR, Standard Range, USB/RS-232 Multi-Interface. Order Cable Separately.
Cables Included:None
Scan Engine:Standard Range
Powerscan PD9630-SR, Standard Range, RS-232 Kit (Includes Scanner and RS-232 Interface Cable)
Cables Included:RS-232 Cable
Scan Engine:Standard Range
Powerscan PD9630-HP, High Performance, USB/RS-232 Multi-Interface. Order Cable Separately.
Scan Engine:High Performance
Cables Included:None
Powerscan PD9630-HP, High Performance, RS-232 Kit (Includes Scanner and RS-232 Interface Cable)
Scan Engine:High Performance
Cables Included:RS-232 Cable
Powerscan PD9630-DC, Document Capture, USB Kit (Includes Scanner and USB Interface Cable)
Scan Engine:Document Capture
Cables Included:USB Cable
Powerscan PD9630-DC, Document Capture, USB/RS-232 Multi-Interface. Order Cable Separately.
Scan Engine:Document Capture
Cables Included:None

Accessories

Datalogic Interface Cable, 12 Foot, Coiled, USB Interface
Datalogic Interface Cable, 12 Foot, Straight, USB Interface
Cable 8 Feet, RS232 9-Pin Female, Coiled, (External Power on Pin 9) for the Datalogic PowerScan
Cable 6 Feet, RS232 9-Pin Female Straight, POT) for the PowerScan
