Socket CHS Series 7

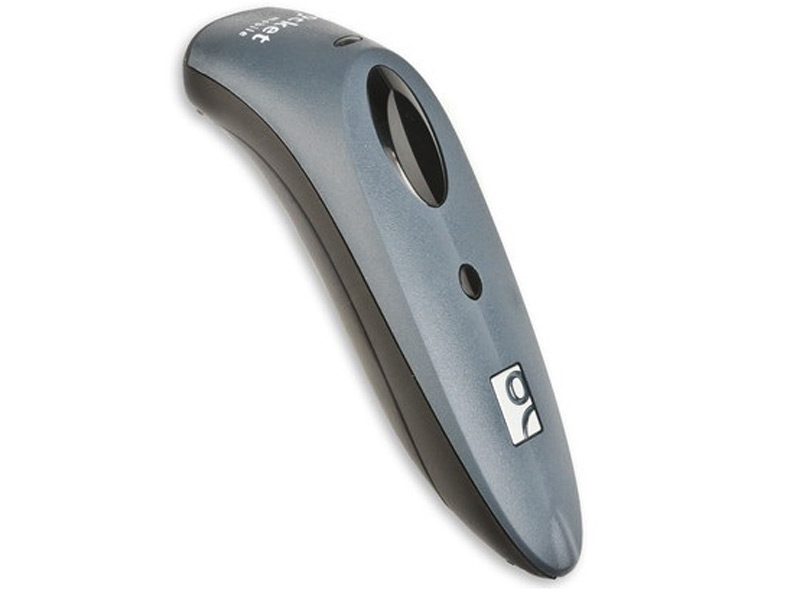

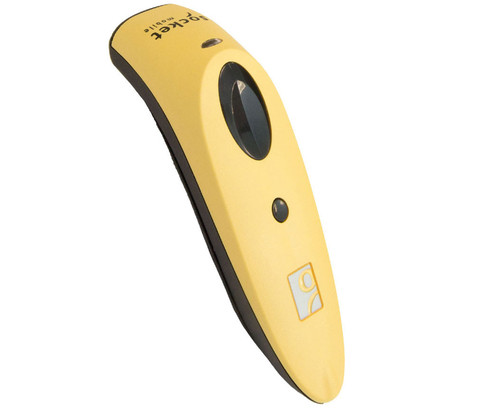

CHS Series 7 Mobile Barcode Scanner

While there are still plenty of models available, this scanner has been replaced by a more recent model.

If you need an iPhone barcode scanner and the built-in camera just isn't cutting it, the CHS Series 7 scanner is the device you've been waiting for. The CHS Series 7i can pair with iOS, Android and Windows smartphones and tablets, allowing you to scan inventory without having to buy an expensive mobile computer. These small, lightweight devices fit easily in hand, so extended scanning sessions are no sweat.

The CHS Series 7 barcode scanner comes with your choice of 1D Imager, 1D laser scanner or 2D imager, excellent for shipping/receiving as well as general inventory scanning. All units can scan easily from 1 to 10 inches, with the laser and 2D options being ideal for scanning device screens. For warehouse and other intense scanning environments, a more rugged housing is available for the ability to withstand 6' drops to concrete. For healthcare providers, the 7XiRx features a rugged antimicrobial design, so you can apply cleaning agents without fear of pitting or etching the housing.

The CHS Series 7 Scanner includes:
• AC Charger
• 2 NiMH Rechargable AAA batteries
• Installation CD
• Lanyard Belt Clip with Tether
• SocketScan Software
• Connect!Agent for Windows Mobile & XP
• One Year Limited Warranty
• 10-hour Battery Life Per Charge
• Support for 19 Major Barcode Symbologies

Product Breakdown:
• CHS 7Ci: Standard Housing, 1D Imager
• CHS 7Mi: Standard Housing, Class 2 Laser
• CHS 7Qi: Standard Housing, 2D Imager

Product Specifications
Dimensions	4.9 x 1.2 x 1.4 in
Weight	3.2 oz
Color Options	Grey Green White Yellow Red Blue
Interfaces Available	Bluetooth
Scan Method	1D Model: Laser Scanner, Imager 2D Model: Linear Imager
Decoding Capabilities	1D Model: Standard 1D Barcodes 2D Model: Standard 1D & 2D Barcodes (See Data Sheets for specific models)
Mobility/Range	Bluetooth 2.45GHz; Up to 330 depending on environment
Battery	Two AAA NiMH
Operating Time	Minimum 8,000 scans in 10 hours
Recharge Time	n/a
Scan Rate (Maximum)	50 (± 3) scans/sec (bi-directional)
Typical Depth of Field	2.2 to 30+ inches
Healthcare Specific Model	Yes, in 1D & 2D Model
Indicators	Low Battery Beep Scan Beep
Stand	No
Warranty	1 Year

Downloads
Data Sheet for 7Ci, Mi & Qi
Data Sheet for 7Di, Pi & Xi
Series 7 Colorful Spec Sheet
7Ci 1D User Guide
User's Guide
7Mi 1D User Guide
7Qi 2D user Guide
CHS 7P Data Sheet - OLD
CHS Series 7 Data Sheet - OLD
