DataLogic Falcon X3+

The pictures shown are general images for product Falcon X3+ and may not be applicable to all part numbers

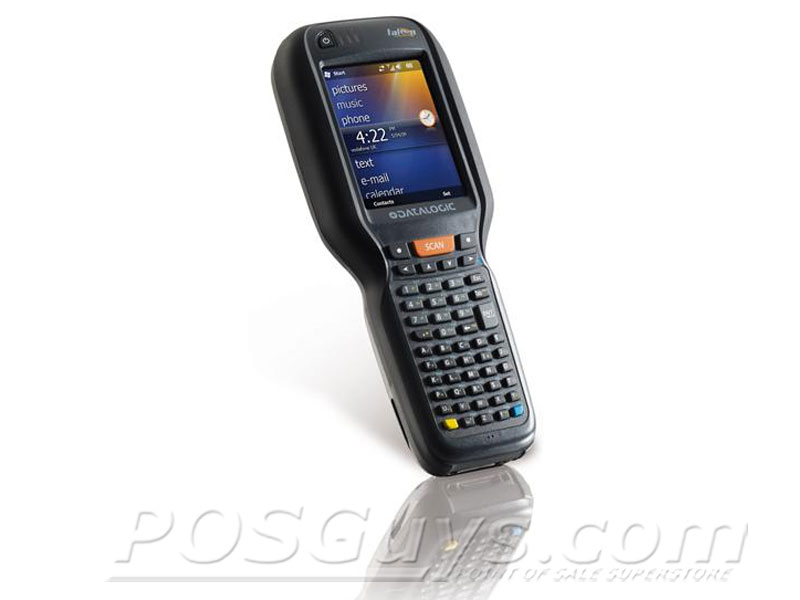

Falcon X3+ Mobile Computers


The DataLogic Falcon X3+ has reached end of life. It has been replaced by the DataLogic Falcon X4.

This product replaces the older DataLogic Falcon X3.

The Datalogic Falcon X3+ provides the power and durability you need for demanding data capture jobs. An incredibly rugged design and multiple configuration options make it a great choice for large scale applications, such as shipping/receiving, warehouses, and wholesalers.

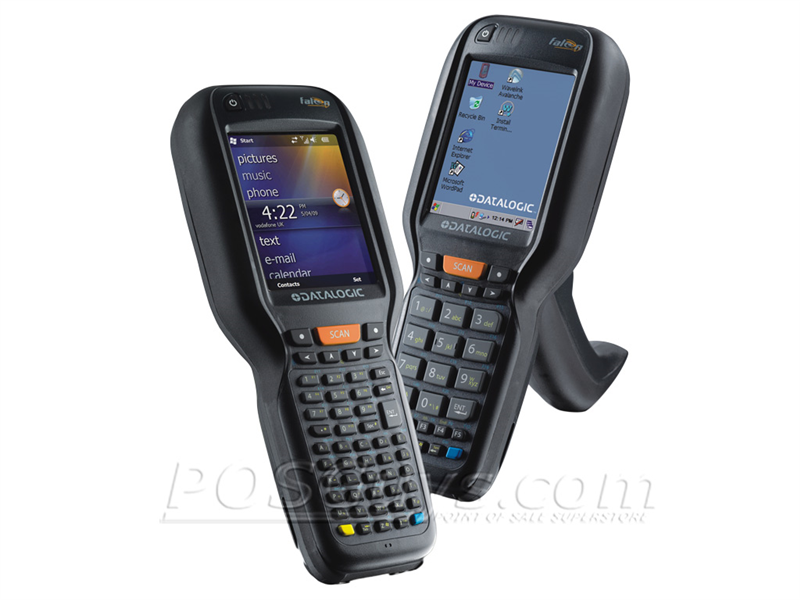

Building on the Falcon series, the Falcon X3+ offers the tools and features ideal for demanding scanning applications. The mobile computer is available in handheld or pistol-grip form factors, so your employees can use the ergonomic design best suited for their work flow. For manual data input, the Falcon X3+ can ship with either a 29-key numeric keypad with large buttons or a 52-key alphanumeric keypad for more intense data entry applications.

The mobile computer comes with one of four scan engines: a high performance laser scanner, an auto-ranging long range laser scanner, a standard range 2D imager, or an extra long range 2D imager. This variety of scanning capabilities means the Falcon X3+ is just as at home in big box retail inventory management as well as trucking or logistics environments. For proof of delivery or other photographic needs, select models include a 3.1 megapixel camera.

With your choice of Windows CE 6.0 Professional or Windows Embedded Handheld 6.5, the Falcon X3+ supports most mobile data management platforms. 1 GB of storage is standard, but can be upgraded using the microSD slot, allowing you to keep large inventory and order databases on hand all day. 802.11a/b/g/n radios keep your employees in contact within the four walls, great for pushing down updates or work process changes on the fly.

Warehouse and industrial environments are incredibly demanding; thankfully the Falcon X3+ can handle them with ease. The reinforced plastics on the mobile computer protect it from drops of six feet to concrete, surviving drops from forklifts or high shelves with ease. Internal sealing on the Falcon X3+ is rated at IP65 standards, completely sealing it against dust and preventing low-pressure water sprays from harming internal components. A 1 year warranty is standard, and Datalogic offers advanced coverage to further protect your investment. For hazardous locations, outdoor industrial scanning, or high demand warehouse scanning, the Datalogic Falcon X3+ is a smart solution.

    Features
  • Windows CE 6.0 Pro or Windows Embedded Handheld 6.5
  • 806 MHz XScale PXA310 Processor, 256 MB RAM, 1 GB Flash
  • 802.11a/b/g/n, Bluetooth Radios
  • Available with Laser, 2D Imager, Long Range Laser, or Long Range 2D scan engine
  • Withstands six-foot drops to concrete
  • IP65 seal, sealed against dust and low pressure water jets
  • 1-year warranty

DataLogic Falcon X3+ Reviews

POSGuys Rating: Not Rated

Customer Reviews

Recommended Models

Falcon X3+ Mobile Computer, Black with Pistol Grip Form Factor, Windows CE 6.0, 29-Key Numeric Keypad, High Performance Laser w/ Green Spot, Bluetooth, 802.11a/b/g/n Radios
Please Call
Operating System:Windows CE 6.0 Pro
Keypad:29-Key Numeric
Scan Engine:High Performance Laser w/ Green Spot
Camera:N/A
Form Factor:Pistol Grip
Falcon X3+ Mobile Computer, Black with Pistol Grip Form Factor, Windows CE 6.0, 52-Key Alphanumeric Keypad, High Performance Laser w/ Green Spot, Bluetooth, 802.11a/b/g/n Radios
Please Call
Operating System:Windows CE 6.0 Pro
Keypad:52-Key Alphanumeric
Scan Engine:High Performance Laser w/ Green Spot
Camera:N/A
Form Factor:Pistol Grip
Falcon X3+ Mobile Computer, Black with Handheld Form Factor, Windows Embedded Handheld 6.5, 52-Key Alphanumeric Keypad, 3.1 Megapixel Camera, Standard Range Imager w/ Green Spot, Bluetooth, 802.11a/b/g/n Radios
Please Call
Operating System:Windows Embedded Handheld 6.5
Keypad:52-Key Alphanumeric
Camera:3.1 Megapixel
Form Factor:Handheld
Scan Engine:Standard Range Imager w/ Green Spot
Falcon X3+ Mobile Computer, Black with Pistol Grip Form Factor, Windows CE 6.0, 29-Key Numeric Keypad, Extended Range Imager (XLR), Bluetooth, 802.11a/b/g/n Radios
Please Call
Operating System:Windows CE 6.0 Pro
Keypad:29-Key Numeric
Scan Engine:Extended Range Imager (XLR)
Camera:N/A
Form Factor:Pistol Grip
Falcon X3+ Mobile Computer, Black with Pistol Grip Form Factor, Windows Embedded Handheld 6.5, 52-Key Alphanumeric Keypad, 3.1 Megapixel Camera, Auto-Ranging Laser Scanner (XLR), Bluetooth, 802.11a/b/g/n Radios
Please Call
Operating System:Windows Embedded Handheld 6.5
Keypad:52-Key Alphanumeric
Camera:3.1 Megapixel
Scan Engine:Auto-Ranging Laser (XLR)
Form Factor:Pistol Grip
Falcon X3+ Mobile Computer, Black with Pistol Grip Form Factor, Windows Embedded Handheld 6.5, 52-Key Alphanumeric Keypad, 3.1 Megapixel Camera, High Performance Laser Scanner w/ Green Spot, Bluetooth, 802.11a/b/g/n Radios
Please Call
Operating System:Windows Embedded Handheld 6.5
Keypad:52-Key Alphanumeric
Camera:3.1 Megapixel
Scan Engine:High Performance Laser w/ Green Spot
Form Factor:Pistol Grip
Falcon X3+ Mobile Computer, Black with Pistol Grip Form Factor, Windows Embedded Handheld 6.5, 52-Key Alphanumeric Keypad, 3.1 Megapixel Camera, Standard Range Imager w/ Green Spot, Bluetooth, 802.11a/b/g/n Radios
Please Call
Operating System:Windows Embedded Handheld 6.5
Keypad:52-Key Alphanumeric
Camera:3.1 Megapixel
Form Factor:Pistol Grip
Scan Engine:Standard Range Imager w/ Green Spot
Falcon X3+ Mobile Computer, Black with Pistol Grip Form Factor, Windows CE 6.0, 52-Key Alphanumeric Keypad, Standard Range Imager w/ Green Spot, Bluetooth, 802.11a/b/g/n Radios
Please Call
Operating System:Windows CE 6.0 Pro
Keypad:52-Key Alphanumeric
Camera:N/A
Form Factor:Pistol Grip
Scan Engine:Standard Range Imager w/ Green Spot
Falcon X3+ Mobile Computer, Black with Pistol Grip Form Factor, Windows CE 6.0, 52-Key Alphanumeric Keypad, Auto-Ranging Laser Scanner (XLR), Bluetooth, 802.11a/b/g/n Radios
Please Call
Operating System:Windows CE 6.0 Pro
Keypad:52-Key Alphanumeric
Scan Engine:Auto-Ranging Laser (XLR)
Camera:N/A
Form Factor:Pistol Grip
Falcon X3+ Mobile Computer, Black with Pistol Grip Form Factor, Windows Embedded Handheld 6.5, 29-Key Numeric Keypad, 3.1 Megapixel Camera, High Performance Laser Scanner w/ Green Spot, Bluetooth, 802.11a/b/g/n Radios
Please Call
Operating System:Windows Embedded Handheld 6.5
Keypad:29-Key Numeric
Camera:3.1 Megapixel
Scan Engine:High Performance Laser w/ Green Spot
Form Factor:Pistol Grip

Additional Models

Falcon X3+ Mobile Computer, Black with Pistol Grip Form Factor, Windows CE 6.0, 52-Key Alphanumeric Keypad, Extended Range Imager (XLR), Bluetooth, 802.11a/b/g/n Radios
Please Call
Operating System:Windows CE 6.0 Pro
Keypad:52-Key Alphanumeric
Scan Engine:Extended Range Imager (XLR)
Camera:N/A
Form Factor:Pistol Grip
Falcon X3+ Mobile Computer, Black with Pistol Grip Form Factor, Windows CE 6.0, 29-Key Numeric Keypad, Standard Range Imager w/ Green Spot, Bluetooth, 802.11a/b/g/n Radios
Please Call
Operating System:Windows CE 6.0 Pro
Keypad:29-Key Numeric
Camera:N/A
Form Factor:Pistol Grip
Scan Engine:Standard Range Imager w/ Green Spot
Falcon X3+ Mobile Computer, Black with Handheld Form Factor, Windows CE 6.0, 52-Key Alphanumeric Keypad, High Performance Laser Scanner w/ Green Spot, Bluetooth, 802.11a/b/g/n Radios
Please Call
Operating System:Windows CE 6.0 Pro
Keypad:52-Key Alphanumeric
Form Factor:Handheld
Scan Engine:High Performance Laser w/ Green Spot
Camera:N/A
Falcon X3+ Mobile Computer, Black with Pistol Grip Form Factor, Windows CE 6.0, 29-Key Numeric Keypad, Auto-Ranging Laser Scanner (XLR), Bluetooth, 802.11a/b/g/n Radios
Please Call
Operating System:Windows CE 6.0 Pro
Keypad:29-Key Numeric
Scan Engine:Auto-Ranging Laser (XLR)
Camera:N/A
Form Factor:Pistol Grip

Accessories

Falcon X3/X4 Battery, 3.7V 5200 mAh (Batteries must be shipped via ground shipping)
Handylink USB Interface Cable, Female USB End, For use with Printers or other Peripherals, 15-Centimeter
Falcon X3/X4 Charging/Communications Dock, Includes Spare Battery Charging Slot, Power Supply, Line Cord, USB Cable, RS-232, Serial Interfaces
Falcon X3/X4 4-Slot Ethernet Dock, Includes Power Supply, Requires Line Cord (Part # 95ACC1113)
Falcon X3 4-Slot Battery Charging Dock, Includes Power Supply, Requires Line Cord (Part # 95ACC1113)
Falcon X3 4-Slot Charging Dock, Supports 4 Devices and 4 Spare Batteries, Includes Power Supply, Requires Line Cord (Part # 95ACC1113)
RS-232 Serial Cable, Connects Dock to PC
