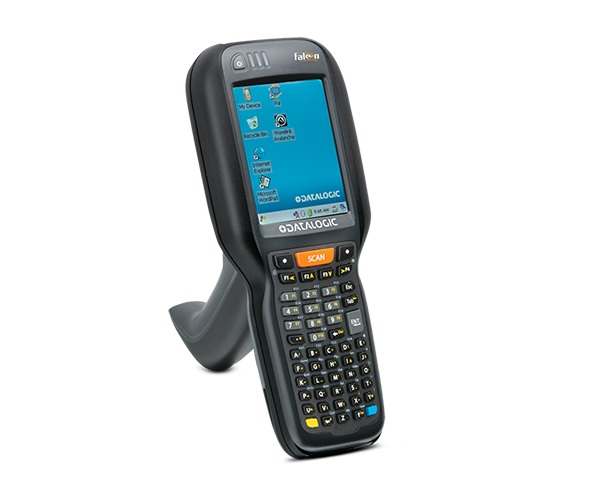

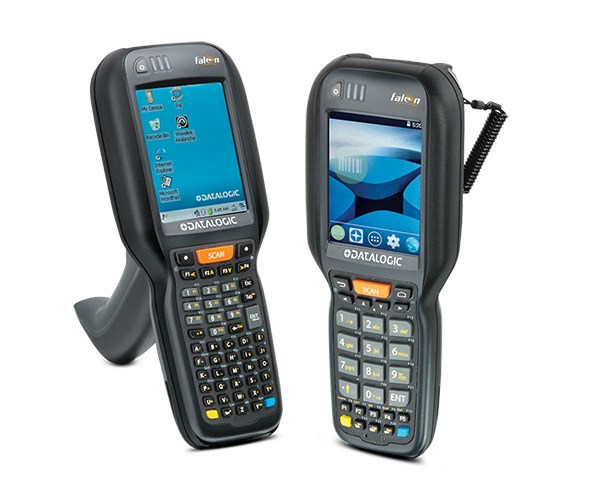

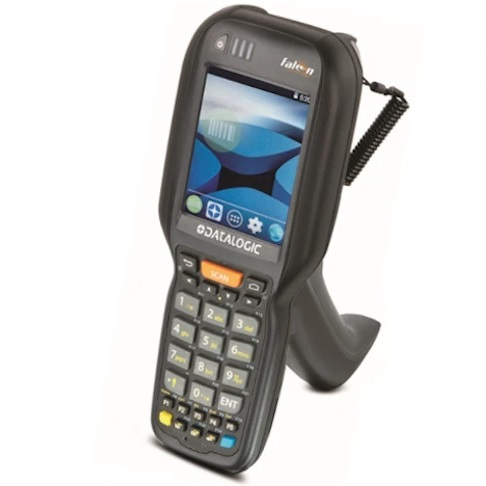

DataLogic Falcon X4

Falcon X4 Mobile Computers


This product replaces the older DataLogic Falcon X3+.

Datalogic keeps up their history of excellence with the continuation of the Falcon line of mobile computers. Introducing the

Built to withstand the beating expected from high-energy warehouse environments, and user-friendly enough to be an asset on the sales floor, the Falcon X4 boasts a touch screen, physical keypad, rugged and sealed design, and your choice of Windows or Android for the operating system. With a variety of options in keypad type, scanner type, and operating system, there's a Falcon X4 for any occasion and every application. Be it inventory control, sales assistance, POS processing, or logistics, the sharp-shooting versatility will make the Falcon a great addition to any environment.

You'll instantly feel the full-shift difference of the ergonomic handheld and pistol grip form factors to balance a 3.5-inch crystal clear display, full numeric or alphanumeric back-lit keyboards, and a one-piece 5,200 mAh battery that lasts your whole work day. With the best ergonomics in its field, the Falcon X4 reduces operator fatigue with no compromise in reliability and robustness, resisting harsh environments, repeated drops, strong shocks, and repetitive tumbles. A multicore 1GHz processor with 1GB RAM and an 8GB flash memory bank (with user-accessible SDHC card slot for expanded memory) powers this handy device, allowing it to handle many functions in one go, and not drain the battery in the meantime. Let our sales staff tell you more about how you can revitalize your processes with this exquisite new mobile computer and industrial barcode scanner, today!

    Features
  • 1 GB RAM / 8 GB Flash memory
  • Choice of Windows Embedded Compact 7 or Android v4.4 (WEC7 version upgradable to Android)
  • TI 802.11 a/b/g/n radio
  • Ruggedized with 1.8 m / 6.0 ft drop to concrete and IP65 sealing rating
  • 3.5 inch touchscreen display with Corning Gorilla Glass 3 scan window
  • 1-year warranty
Charging Note: The Falcon X4 does NOT come with any charging equipment. USB cables, charging docks, and power supplies must be purchased separately. See Accessories for all your charging needs.
Product Specifications
Weight
  • Hand held: 602.0 g / 21.2 oz
  • Pistol grip: 668.0 g / 23.6 oz
  • Dimensions
  • Handheld: 22.5 x 8.8 x 5.5 cm / 8.9 x 3.5 x 2.2 in; 6.4 x 4.0 cm / 2.5 x 1.6 in at keyboard
  • Pistol grip: 22.5 x 8.8 x 16.8 cm / 8.9 x 3.5 x 6.6 in
  • Operating Systems Windows Embedded Compact 7 or Android v4.4
    Processor TI OMAP4 @ 1 GHz Multicore
    Memory 1GB RAM / 8GB Flash Memory
    Screen Reflective TFT daylight readable color display, 240 x 320 pixels, 8.9 cm / 3.5 in diagonal, 65K colors, backlight, touchscreen
    Battery Rechargeable Li-ion batteries; 3.7 V 5200 mAh (19.2 Watt hours)
    1D Imager 2500 pixel sensor; Sharp green LED scan line
    2D Imager Megapixel sensor for extended range; White LED Illumination
    Keyboard Options 29-key numeric, 29-key functional numeric, or 52-key alphanumeric with discrete navigation
    Interface Options Main connector with USB 2.0 High Speed Host (480 Mbps) and Client, RS-232 up to 115.2 Kbps; Ethernet or Modem: via single-slot dock (external module)
    Drop Specification Withstands drops from 1.8 m / 6.0 ft onto concrete follow IEC68-2-32 (Method 1) and 1500 random drops from 1.0 m / 3.3 ft follow EC68-2-32 (Method 2)
    IP Seal Rating IP65 Sealed against dust and jets of water
    Warranty 1-Year Factory Warranty

    DataLogic Falcon X4 Reviews

    POSGuys Rating: Not Rated

    Customer Reviews

    Add a customer product review

    Recommended Models

    Falcon X4 Hand held, Wi-Fi/Bluetooth radios, 29-Key Numeric, 1D Imager, Windows Embedded Compact 7
    $1,509.00
    • form factor: Handheld
    • imager: 1D
    • keypad: 29-Key Num
    • os: Windows
    Falcon X4 Pistol Grip, Wi-Fi/Bluetooth radios, 52-Key Alpha Numeric, 1D Imager, Android 4.4
    $1,649.00
    • form factor: Pistol Grip
    • imager: 1D
    • keypad: 52-Key Alpha
    • os: Android
    Falcon X4 Hand held, Wi-Fi/Bluetooth radios, 29-Key Numeric, 2D Imager, Windows Embedded Compact 7
    $1,649.00
    • form factor: Handheld
    • imager: 2D
    • keypad: 29-Key Num
    • os: Windows
    Falcon X4 - Pistol Grip, Wi-Fi/Bluetooth Radios, 52 key Alphanumeric Keypad, 1D Imager, Windows Embedded Compact 7
    $1,579.00
    • form factor: Pistol Grip
    • imager: 1D
    • keypad: 52-Key Alpha
    • os: Windows

    Additional Models

    Hand held, Wi-Fi/Bluetooth radios, 29-Key Numeric, 2D Imager, Android 4.4
    $1,719.00
    • form factor: Handheld
    • imager: 2D
    • keypad: 29-Key Num
    • os: Android
    Pistol Grip, Wi-Fi/Bluetooth radios, 52-Key Alphanumeric, 2D Imager, Android 4.4
    $1,779.00
    • form factor: Pistol Grip
    • imager: 2D
    • keypad: 52-Key Alpha
    • os: Android
    Hand held, Wi-Fi/Bluetooth radios, 29-Key Numeric, 1D Imager, Android 4.4
    $1,579.00
    • form factor: Handheld
    • imager: 1D
    • keypad: 29-Key Num
    • os: Android
    - Pistol Grip, Wi-Fi/Bluetooth Radios, 29-Key Functional Numeric Keypad, 2D Imager, Android 4.4
    $1,779.00
    • form factor: Pistol Grip
    • imager: 2D
    • keypad: 29-Key Funct
    • os: Android
    - Pistol Grip, Wi-Fi/Bluetooth Radios, 29-Key Numeric Keypad, 2D Imager, Android 4.4
    $1,779.00
    • form factor: Pistol Grip
    • imager: 2D
    • keypad: 29-Key Num
    • os: Android
    - Hand Held, Wi-Fi/Bluetooth Radios, 52-Key Alphanumeric Keypad, 1D Imager, Windows Embedded Compact 7
    $1,509.00
    • form factor: Handheld
    • imager: 1D
    • keypad: 52-Key Alpha
    • os: Windows
    Pistol Grip, Wi-Fi/Bluetooth radios, 29-Key Functional Numeric, 2D Imager, Windows Embedded Compact 7
    $1,719.00
    • form factor: Pistol Grip
    • imager: 2D
    • keypad: 29-Key Funct
    • os: Windows
    Pistol Grip, Wi-Fi/Bluetooth radios, 52-Key Alpha Numeric, 2D Imager, Windows Embedded Compact 7
    $1,719.00
    • form factor: Pistol Grip
    • imager: 2D
    • keypad: 52-Key Alpha
    • os: Windows
    Pistol Grip, Wi-Fi/Bluetooth radios, 29-Key Numeric, 2D Imager, Windows Embedded Compact 7
    $1,719.00
    • form factor: Pistol Grip
    • imager: 2D
    • keypad: 29-Key Num
    • os: Windows
    Pistol Grip, Wi-Fi/Bluetooth radios, 29-Key Numeric, 1D Imager, Windows Embedded Compact 7
    $1,548.43
    • form factor: Pistol Grip
    • imager: 1D
    • keypad: 29-Key Num
    • os: Windows

    Accessories

    94A150057 Falcon X3/X4 Charging/Communications Dock, Includes Spare Battery Charging Slot, Power Supply, Line Cord, USB Cable, RS-232, Serial Interfaces
    $242.00
    Add to Cart
    94A150056 Falcon X3/X4 4-Slot Ethernet Dock, Includes Power Supply, Requires Line Cord (Part # 95ACC1113)
    $759.00
    Add to Cart
    94ACC1386 Falcon X3/X4 Battery, 3.7V 5200 mAh
    $113.00
    Add to Cart
    95ACC1113 AC Line Cord, US
    $17.00
    Add to Cart
