Honeywell RP2f Series
The pictures shown are general images for product RP2f Series and may not be applicable to all part numbers

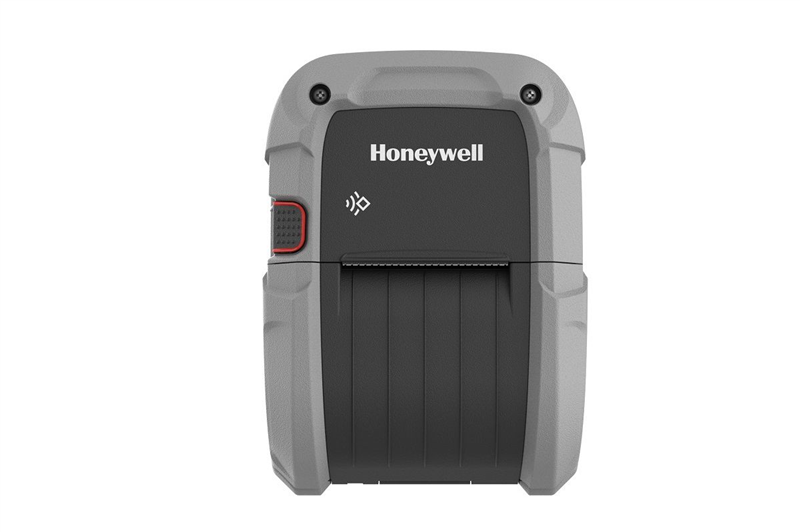

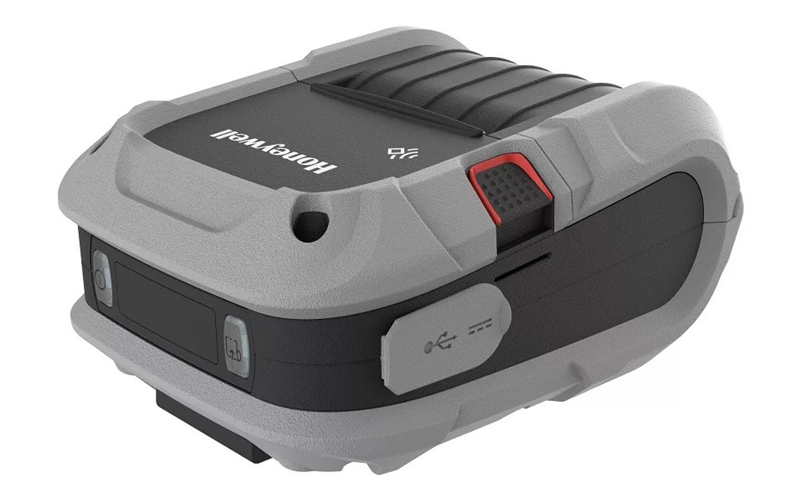

RP2f Series Mobile Printers
The RPf Series Mobile Printers are built for the Most Rugged Environments, Offering Exceptional Media and Battery Capacity, Quiet Operation, and Excellent Value.
The RPf printer comes with a powerful CPU and smart power management – allowing smooth, continuous operation so your workers can work efficiently with less media reloading, battery swaps, and downtime.
The RPf Series printer prints 25.4mm (1 in) to 104.1 mm (4.1 in) labels/receipts and can accommodate a wide variety of media, including the heavy stock necessary for hang tags and specialty label needs.
The RPf Series has the latest 802.11 a/b/g/n/ac Wi-Fi capabilities for the best range and fast data communications on your WLAN. It also includes a Bluetooth 5.0 LE radio at no additional charge for when workers are outside of WLAN range or using the printer with a Bluetooth mobile computer.
- Features
- Ultra-rugged: survives 2 m (6.6 ft) drops and 1,000 0.5 m (1.6 ft) tumbles, has an IP54 rating for dust and moisture ingress, and operates over a wide temperature range.
- Lightweight, ergonomic design allows workers to carry and operate the printer with ease.
- High-discharge current lithium-ion cell battery can be swapped without resetting the printer or losing connectivity.
- Operational Intelligence solution provides analytics to help manage, track, and optimize printer assets, enabling proactive maintenance and replacement.
- The printer provides superior media capacity and supports labels with/ without a liner; can also sense gaps between labels or black marks on the top or bottom of media.
Product Specifications | |
---|---|
Print Method | Direct Thermal |
Print Speed | 25-125 mm/s (1-5 ips) |
Print Resolution | 203 dpi |
Media Width | 25 mm (1.0 in) to 57 mm (2.25 in) |
Roll Diameter | 58 mm (2.25 in) |
Core Diameter | 10.16 mm (0.4 in), 19 mm (0.75 in), or 25.4 mm (1.0 in) inside diameter |
Auto Cutter | Auto Cutter |
Connectivity | USB 2.0 OTG, NFC, Bluetooth 5.0 + LE dual radio mode, 802.11 a/b/g/n/ac and Bluetooth with dual radio mode; wireless access modes: Infrastructure and ad hoc |
Supported OS | Android 4.0+, iOS 10.3+, Windows 10+ |
IP Rating | IP54 |
Drop Rating | 2 m (6.6 ft) |
Tumble Test | 1,000 cycles at 0.5 m (1.6 ft) |
Battery Life | 2500 mAh with battery age LED indicator |
Dimensions (H x W x D) | 160 mm x 116 mm x 77 mm (6.3 in x 4.6 in x 3.0 in) |
Weight | 0.72 kg (1.5 lb) (with battery, no media) |
Warranty | One year factory warranty |
Downloads |
---|
RP2F Spec Sheet |
