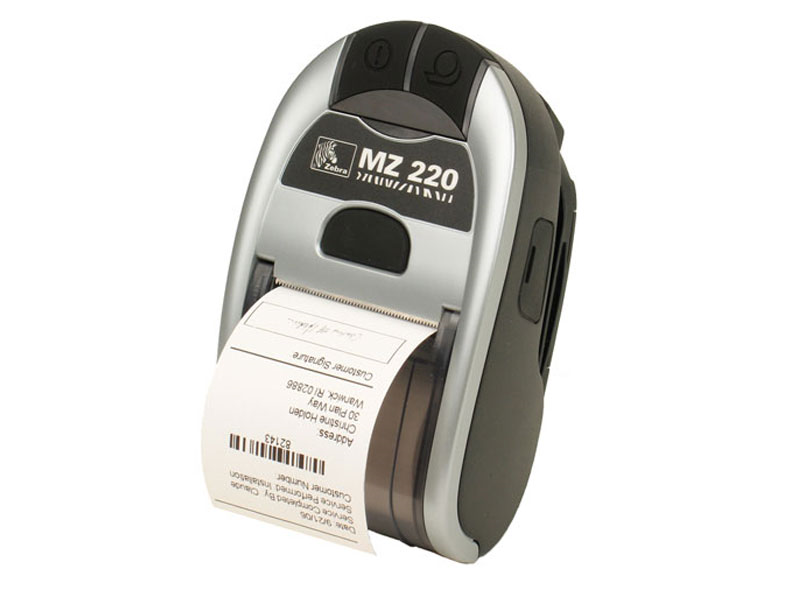

Zebra MZ 220
The pictures shown are general images for product MZ 220 and may not be applicable to all part numbers
MZ 220 Mobile Printers
The Zebra MZ 220 has reached end of life. It has been replaced by the Zebra ZQ110.
This product replaces the older Zebra QL220 Plus.
The Zebra MZ 220 mobile printer gives you an economical way to ring up customers away from the checkstand. At 3" per second, the MZ 220 prints 2" wide receipts quick enough to keep customers happy. The MZ 220 comes standard with USB and IrDA interfaces and optional BlueTooth II and 802.11b/g radios for greater mobility and versatility.
Zebra built the MZ 220 to withstand the rigors of even rough retail environments while maintaining a small form factor. Small enough to fit your hand, the MZ220 features an IP42 seal to keep water splashes and dirt from harming internal components. The shock-mounted internal components allow the receipt printer to withstand multiple 4-foot drops to concrete, ensuring it survives the accidental drop during use.
Features IP42 Seal protects from water and dirt
Rechargeable 1.5 Ah Lithium-Ion battery
Compatible with Windows CE.Net, Pocket PC, XP, 2000, and NT
8 MB RAM, 4 MB Flash
Light 0.7 lb weight with battery
Zebra built the MZ 220 to withstand the rigors of even rough retail environments while maintaining a small form factor. Small enough to fit your hand, the MZ220 features an IP42 seal to keep water splashes and dirt from harming internal components. The shock-mounted internal components allow the receipt printer to withstand multiple 4-foot drops to concrete, ensuring it survives the accidental drop during use.
Features
| Product Specifications | |
|---|---|
| Dimensions | 3.18 W x 2.26 D x 5.34" H ( 80.8 x 57.4 x167.6 mm) |
| Weight | .70 lbs (.32 kg) with battery |
| Color Options | Grey |
| Interfaces Available | USB Bluetooth 802.11b/g |
| Battery | 1.5 Ah Li-Ion battery |
| Print Method | Direct Thermal |
| Print Speed | 3" (76.2 mm) per second |
| Print Width | 1.9" (48.3 mm) max |
| Resolution | 203 dpi |
| Barcodes Supported | Standard 1D Barcodes 2D Barcodes: Aztec, Maxicode, PDF-417, QR-Code, GS1 DataBar™(RSS) family |
| Character Set | Standard fonts: 25 bitmapped, 1 smooth, scalable |
| Graphics Printing | Yes, prints graphics and custom logos |
| Data / Logo Storage | 8 MB RAM; 4 MB Flash |
| Media Type | Direct thermal receipt paper UV coated media |
| Paper Dimensions | Roll Size (Max): 1.88"/47.8 mm O.D. on a .4"/10.2 mm to .75"/19 mm I.D. core Media Width (Max): 1.88"/47.8 mm O.D. on a .4"/10.2 mm to .75"/19 mm |
| Paper Thickness | 2 mil/.0508 mm to 4 mil/0.1016 mm |
| Indicators | LEDs indicate on/off, error and connectivity status |
| Drop Specification | Resists repeated 4 drops to concrete |
| Environmental Sealing | IP42 |
| Operating Temperature | 14º F/-10º C to 122º F/50º C |
| Storage Temperature | -4º F/-20º C to 140º F/60º C |
| In The Box | Printer Belt Clip Cleaning Pen Quick Reference Guide Roll of receipt paper AC Adapter with power connector Registration Card |
| Accessories | Protective silicone skin Durable Case Shoulder Strap MZ Series 4-Bay Power Station Vehicle Adapter |
| Warranty | 1 Year Manufacturer Warranty |
